| Prod Model: |
FJ4E-550 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
Brand New |
| Bearing: |
Ball Bearing |
| Product Type: |
Condense Unit Ventilation Cooling Fans |
| Size: |
550mm |
| Warantee: |
One Year Guarantee Time |
| Usage: |
for Refrigerate, for Air Conditioner, for Manufa |
| Type: |
Air Cooling Fan |
| Speed: |
1 Speed |
| Power Supply: |
Electric |
| Power: |
100W-300W |
| Application: |
Industrial |
| Timer: |
Without Timer |

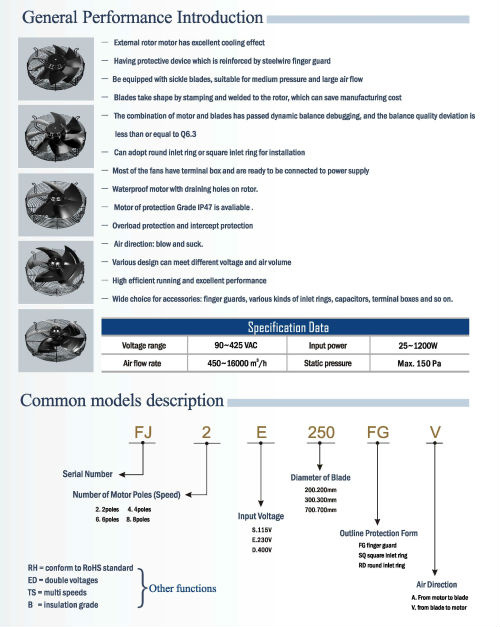

Product Description

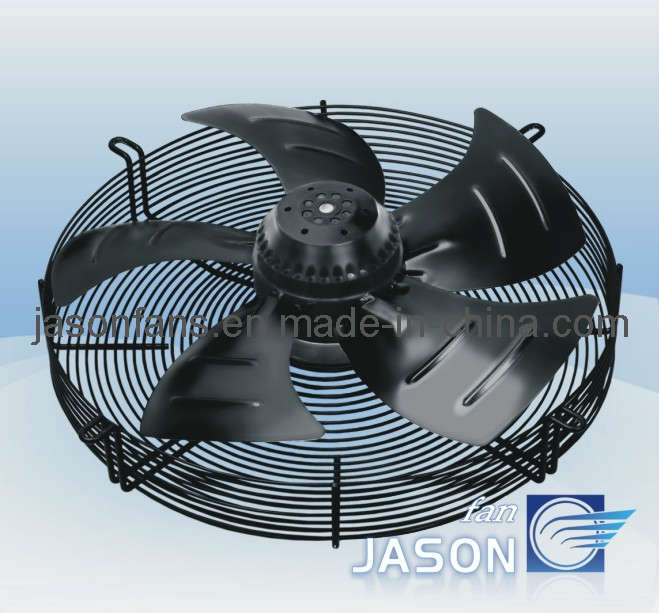

Condense unit ventilation cooling Fans:
Size of the fan: Φ 550mm
Number of impeller blades 5
Nominal Voltage: V AC 230/400(50/60Hz)
Voltage Range: V AC 60...420
Nominal Speed: Min-1 900...1500
Max. Flow rate: M³ /h 6340...9000
Max. Flow rate: CFM 3740...5310
Noise free air: D B(A) 69...78
Power consumption: W 210...500
Impeller material Sheet steel (stove-enameled in black)
Bearings: Maintenance-free ball bearings
Energy saving, without electronic motor noise, 100% speed controllable, integrated process controller. Electrical motor: With external rotor shaded-pole motor. Resume heat automatically protection and off point: 140centigrade.
Expected service life: (400 VDB; -25 to +85C; )30, 000 hrs.; Class A
(450 VDB; -25 to +85C; )10, 000 hrs.; Class B
Applications: Air conditioning, Agriculture, refrigeration, ventilation, drying, Transformer cooling
Protecting grade: IP 54/55
Mass: G 10500
We are specialized in developing and producing axial fan, centrifugal fan and air filter in different sizes with high quality in the cooling and ventilation field. All of our products are reliable and they can work in harsh circumstance efficiently. They are featured in High airflow, Low noise and Endure life.
Jason Fan takes charge in offering the newest techniques information and high-qualified design of products to all corporations. We took the spirit of this city and named our company Jason Fan.
Since our company came into existence, it develops a worldwide market with an unbelievable speed. Now clients from Australia, South Africa, Spain, Italy and other countries all designate to use our products. At the same time, we have set up a selling web-system which covered almost all main cities in China such as Beijing, Shanghai, Chengdu and so on.
Jason Fan has already passed the ISO9001: 2000 national authentication. And its products have received CSA, RoHS, CE, CCC certificates in and out of China. As our company develops quickly and steadily, up to March 2006, we have owned three factories, covered almost 4, 000 square meters. At present, our monthly capability is more than 200, 000 units fans, 89% of which are produced by ourselves, including mold design, mold pouring, SMT disposal and all other assembling.
Devoting to the development of fan and insisting in high quality is the spirit and principle of our company. We will try our best to satisfy the most rigorous requires of the customers and to make Jason Fan a worldwide welcomed brand.
