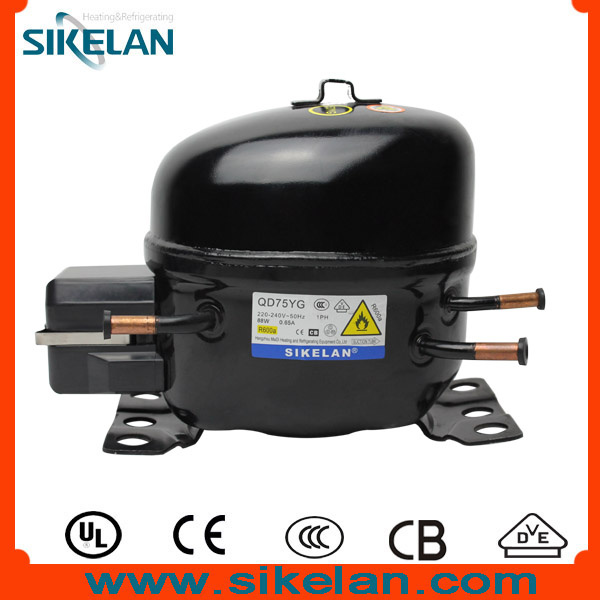

| Prod Model: |
QD75YG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Qd75yg |
| Brand: |
Sikeln |
| Refrigerant: |
R600A |
| Lubrication Style: |
Lubricated |
| Motor Type: |
Rsir |
| Application Type: |
Low Back Pressure |
| Voltage: |
220-204V |
| Frequency: |
50/60Hz |
| Cop: |
1.46 |
| Net Weight: |
6.70kg |
| Parts: |
Refrigeration Compressor |
| Application: |
Wine Cooler Parts |
Product Description
1-MAIN FEATURES:
High efficiency
Low vibration
Good reliability
Experienced staff ensure produce of the compressors with good quality.
2-SIMPLE SPECIFICATION:
1)QD75YG, MS series, use R600A refrigerant;
2)Voltage application from 220V to 240V;
3)Frequency for 50/60Hz;
4)Motor type: RSIR;
5)Cooling type: ST;
6)Starting device is PTC Relay;
7)Application: Low Back Pressure;
8)Nominal power is 1/6- HP;
9)COP is 1.46 with the cooling capacity 130W.
3-CERTIFICATE: CCC, CE, UL, CB, ROSH
4-STORAGE CONDITION:
1)Compressor should be stored in a dry and drafty place
2)Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
3)Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
4)The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
|
MS. MS Series |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model |
Efficiency |
Dispt (cm3) |
Capacity (W)-ASHRAE |
Cooling Type |
Motor Type |
HP |
Starting Device |
|
-35 |
-30 |
-25 |
-23.3 |
-20 |
-15 |
-10 |
-5 |
0 |
|
Capacity W |
Input Power W |
Current A |
COP |
|
QD75YG |
OE |
7.5 |
70 |
86 |
100 |
130 |
89 |
0.65 |
1.46 |
148 |
186 |
230 |
300 |
355 |
ST |
RSIR |
1/6- |
PTC |
|
QD75YG |
HE |
7.5 |
70 |
86 |
100 |
130 |
79 |
0.38 |
1.65 |
148 |
186 |
230 |
300 |
355 |
ST |
RSCR |
1/6- |
PTC |
Hangzhou Maidi Heating and Refrigerating Equipment Co.Ltd is located in Hangzhou City, who has the reputation of China Heaven.We founded in 2009, and moved into new plant on Jul 2011, land area 12, 084 square meters.
The former company name is Hangzhou Sporlan Heating and Refrigerating Equipment Co., Ltd, established on 2002, engaged in manufacturing and exporting since 2004.
Our new plant owns 5 new production lines, with advanced technology, manufacturing 3 series products:
1)Hermetical Refrigeration Compressors, annual capacity 1.5 million pieces.And our compressor range is wide, suitable for small water dispenser, same car and hotel refrigerator, then middle household refrigerator, and big restaurant, supermarket refrigerator and showcase.
2)New Fluorinate Products, including R134A, R404A, R422D...etc.The max storage 1500 ton, and output 8000 ton.
3)Refrigeration Spare Parts, annual yield 600, 000PCS.High quality and sole to American and European countries.
Our whole factory has assessed to comply with the requirements of the international standard ISO9001, ISO14001.
All product has been tested and passed CE, UL, CB, VDE, CCC and RoHS certificates.
Company Management Principleis Marketing for Guideline, Quality for Existence, Technology for Development, Management for Efficiency, Service for Credibility.
Company Business concept is Quality, Innovation, High-Efficiency, Credit
Warmestly welcome your visit.
