| Prod Model: |
HIP-58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Bracket |
| Certification: |
CCC |

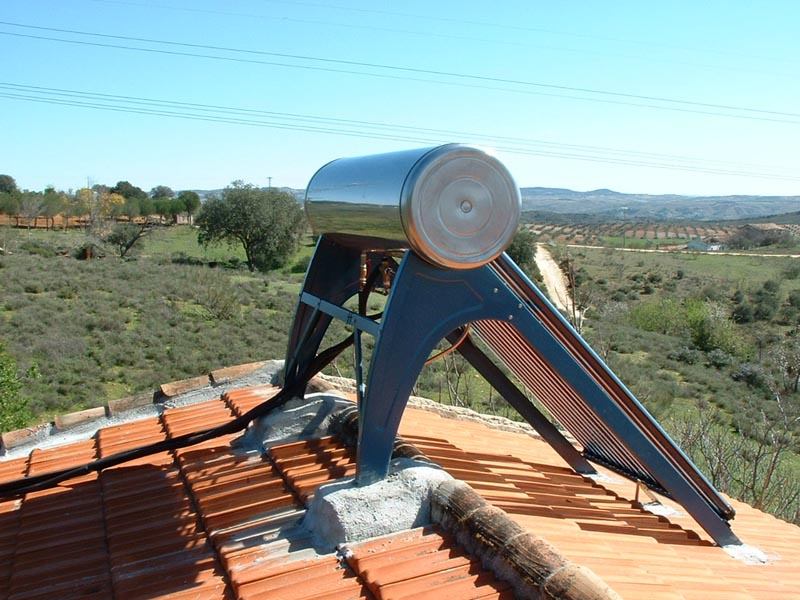

Product Description
Detailed Product Decription:
Working Principle:
The heat pipe is hollow and evacuated, as same as the solar tube. There are a small quantity of purified water and some special additives in it. The heat pipe used in solar collectors has a low boiling point. Thus, when it is heated, the water vaporizes rapidly. The vapor rises to the top of the heat pipe and transfers heat. As the heat is lost at the top, the vapor condenses to form a liquid and returns to the bottom of the heat pipe once again to repeat the process.
Features:
1)No water in the vacuum tubes eradicates the incrustation scale, the leakage and the frost cleft even in Jack Frost condition thus keeping them running in high efficiency
2) High temperature vacuum heat collecting tubes
3) The thickened heat preservation layer of high density
4) Large-angle specially adapted to high and cold areas
5) Stronger wind, snow, and hailstone resistant ability
6) More coordinate with the architectural environment
7) The hot water system fitting for families and work units in mass storage and large trend
8) Working with pressure
Specifications:
1)inner tank: SUS304/2B with 1.5-2.5mm thickness
2)Outer tank: SUS304-BA
3)Tank capacity: 150L/200L/250L/300L
4)Vacuum tube: ¢ 58mm/1800mm; Tube coating: Cu-S/S-AL/N with heat pipe
5)Heat pipe: Straight copper pipe
6)heat insulation layer: Polyurethane with 50mm thickness
7)Frame: Stainless steel steel with thickness 1.2mm
8) Tank diameter: 420mm, 460mm, 490mm
9) Pressure: 6MPa
10) Heat preservation: 72hrs
11) Hail resistance: 25mm
Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
