180Liter compact high pressurized solar panel water heater, solar collector solar energy hot water heating systemAvantages:1> 5 years warranty, long life span
2> Most competitive price and high quality
3> Quality assurance comply with ISO 9001-2008
4> Product quality in compliancee with CE
5> Fast delivery and rich export experience
Detailed: | Description | pressure solar water heaters |
| Material of out tank | 0.4mm thickness color steel |
| Material of inner tank | Food grade1.5mm thickness SUS304 stainless steel |
| Tank insulating layer | 55mm 45kg/m³ high-density polyurethane foamed |
| Max pressure | 0.6 Mpa |
| Inlet and outlet hole | Male G 1/2,3/4 |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96 (AM1.5) |
| Emission ratio | εh=0.04-0.06 (80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 1.5mm thickness Galvanized Steel |
| Structure of tank | 5 holes for air vent,water inlet and outlet, El. Heater and mag. rod |
| Fastening pieces | Made of stainless steel screw |
| Tube quantity | 58x1,800mmx 18 tube with heat pipe |
| Tank capacity | 180L |
Working principle1.The solar heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.

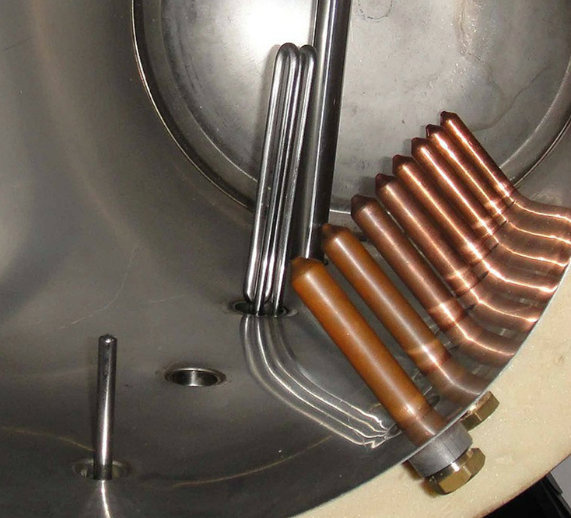

2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot
3.No water in the heat pipe makes the whole system could bear pressure.
