Shanghai Tankii Alloy Material Co., Ltd. >> Chromel D Wire

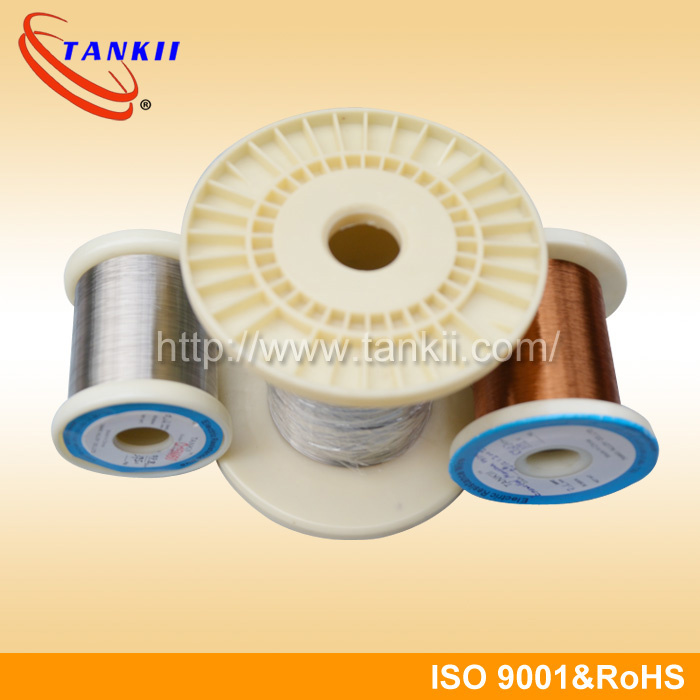

Chromel D Wire

Chromel D Wire
Price: US $ 17kg
Trade Terms: FOB,CFR,EXW
Min Order: 20Kgs
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Chromel D
Markets: North America,South America,Southeast Asia,Mid East,Eastern Asia
Product Type: Wire
Carbon Content: Low Carbon
Material: Alloy

Product Description

Product: Heating Element Wire/Nichrome Wire/NiCrFe Alloy Wire

Grade: N40(35-20 Ni-Cr), Ni35Cr20Fe

Chemical Composition: Nickel 35%, Chrome 20%, Fe Bal.

Resistivity: 1.04 ohm mm2/m

Condition: Bright, Annealed, Soft

Diameter: 0.018~30mm

Producer: Shanghai Tankii Alloy Material Co., Ltd.

The nichrome wire is usually used in tube heater, hair dryer, electric iron, soldering iron, rice cooker, oven, furnace, heating element, resistance element, etc.

If you have any requirement, pls be free to tell us.

MOST PROFESSIONAL ALLOY PRODUCER IN CHINA
Chemical Composition and Main Properties of Nichrome
Properties \ GradeNiCr 80/20NiCr 70/30NiCr 60/15NiCr 35/20NiCr 30/20
Main Chemical CompositionNiBalanceBalance55.0-61.034.0-37.030.0-34.0
Cr20.0-23.028.0-31.015.0-18.018.0-21.018.0-21.0
Fe≤1.0≤1.0BalanceBalanceBalance
Max Continuous Service Temperature(oC)12001250115011001100
Resisivity 20oC (Ωmm2/m)1.091.181.121.041.04
Density (g/cm3)8.48.18.27.97.9
Thermal Conductivity(KJ/m@h@oC)60.345.245.243.843.8
Coefficient of Thermal Expansion(α×10-6/oC)1817171919
Melting Point( oC)14001380139013901390
Elongation(%)>20>20>20>20>20
Micrographic Structureausteniteausteniteausteniteausteniteaustenite
Magnetic PropertynonmagneticnonmagneticnonmagneticWeak magneticWeak magnetic

Shanghai Tankii Alloy Material Co., Ltd. Has been specializing in the production of Resistance Heating Alloy, Nickel Chromium Alloys, FeCrAl Alloys, thermocouple wire, Copper Nickel Alloys, Manganin, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, rod, sheet, tape and strip.

We' Ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

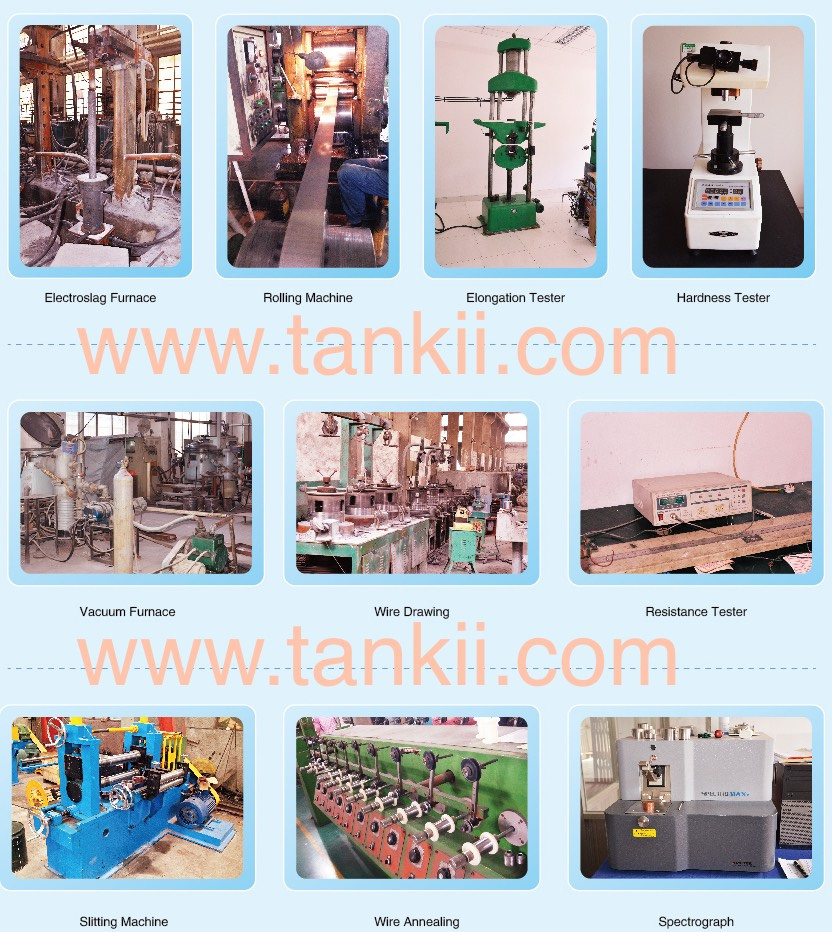

We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd. Has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products have been exported to Europe, India, South America, United States, Southest Asia, South America, etc. We are willing to establish strong and long-time partnership with our customers.

Shanghai TANKII ALLOY IS THE MOST PROFESSIONAL PRODUCER OF NICKEL CHROMIUM ALLOYS, THERMOCOUPLE WIRE, FECRAL ALLOYS AND COPPER NICKEL ALLOYS IN China.
