| Prod Model: |
ASW-10K/FR |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
27000-48000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
RoHS |
| China Energy Efficiency Standard: |
Level 3 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Type: |
Ceiling Corner Air Conditioner |
Product Description
Professional OEM Manufacturer For Air Conditioner, CE CB SASO SONCAP RoHS Certifications
ISO9001 Passed
NINGBO AKL ELECTRIC Co., Ltd is a professional manufacture of Air Conditioner equipment.

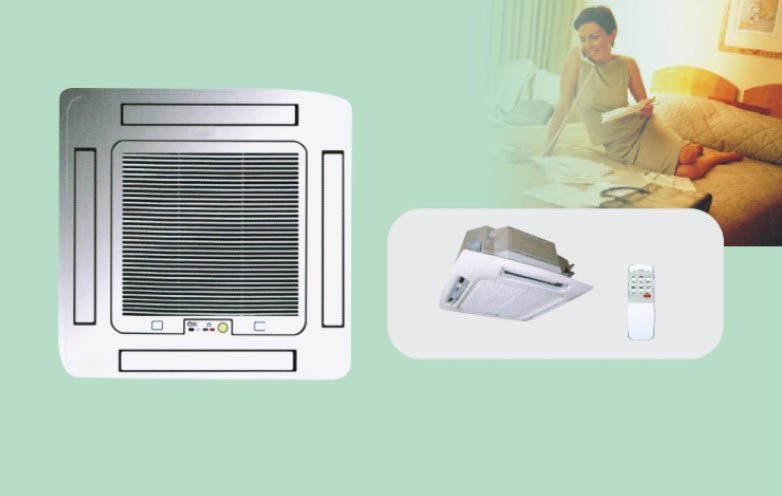

| Cassette Type Air Conditioner |
|
| Specs of Cassette Type Air Conditioner |
| Model | KF(R)-35QW | KF(R)-50QW | KF(R)-70QW | KF(R)-85QW | KF(R)-100QW | KF(R)-120QW | KF(R)-140QW |
| Rated cooling capacity (W/BTU) | 3500/12000 | 5000/18000 | 7000/24000 | 8500/30000 | 10000/36000 | 12000/42000 | 14000/48000 |
| Rated heating capacity (W/BTU) | 3800/13000 | 5500/19000 | 7700/26000 | 9350/32000 | 11000/39000 | 13000/44000 | 15000/52000 |
| Rated cooling input power (W) | 1230 | 1900 | 2600 | 3250 | 3620 | 4700 | 5410 |
| Rated heating input powder (W) | 1140 | 1800 | 2500 | 3130 | 3680 | 4650 | 5300 |
| Rated cooling current(A) | 5.9 | 8.7 | 11.9 | 15.0 | 6.1 | 8.4 | 9.42 |
| Rated heating current (A) | 5.8 | 8.2 | 11.36 | 14.3 | 6.2 | 8.3 | 9.4 |
| Compressor Type | ROTARY | ROTARY | ROTARY | SCROLL | SCROLL | SCROLL | SCROLL |
| Refrigerant | R22 | R22 | R22 | R22 | R22 | R22 | R22 |
| Working Condition | T1 | T1 | T1 | T1 | T1 | T1 | T1 |
| EER | 2.85 | 2.63 | 2.69 | 2.69 | 2.76 | 2.55 | 2.59 |
| energy consumption ranking | 5 | 4 | 4 | 4 | 4 | 4 | 4 |
| Air flow volume (m3/h) | 650 | 900 | 1300 | 1300 | 1500 | 1800 | 1800 |
| external static pressure (Pa) | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Noise level dB(A) | 39/47 | 42/52 | 45/56 |
| 48/60 | 50/60 | 50/60 |
| Power (PH/V/Hz) | 1,220-240,50 | 1,220-240,50 | 1,220-240,50 | 1,220-240,50 | 3,380-415,50 | 3,380-415,50 | 3,380-415,50 |
| Refrigerant liquid pipe(mm) | 6.35 | 6.35 | 9.52 | 9.52 | 9.52 | 9.52 | 9.52 |
| Refrigerant gas pipe (mm) | 9.52 | 12.7 | 15.88 | 15.88 | 19.05 | 19.05 | 19.05 |
| standard pipe length(m) | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Max Pipe length(m) | 10 | 15 | 20 | 25 | 25 | 25 | 25 |
| Max height difference(m) | 10 | 10 | 15 | 15 | 20 | 20 | 20 |
| Indoor dimension(mm) | 570×570×255 | 570×570×255 | 835×835×240 | 835×835×240 | 835×835×240 | 835×835×280 | 835×835×280 |
| panel dimension(mm) | 650×650×30 | 650×650×30 | 950×950×55 | 950×950×55 | 950×950×55 | 950×950×55 | 950×950×55 |
| Outdoor dimension(mm) | 760×260×540 | 800×300×690 | 800×300×690 | 903×354×857 | 903×354×857 | 950×350×940 | 945×340×1255 |
| Packing information | Packing dimension | Indoor(mm) | 680×680×320 | 680×680×320 | 900×900×320 | 900×900×320 | 900×900×320 | 900×900×360 | 900×900×360 |
| panel(mm) | 740×740×145 | 740×740×145 | 1000×1000×100 | 1000×1000×100 | 1000×1000×100 | 1000×1000×100 | 1000×1000×100 |
| Outdoor(mm) | 880×350×610 | 930×410×760 | 930×410×760 | 1030×410×980 | 1030×410×980 | 1090×430×1060 | 1090×430×1370 |
| Weight (kg) | Indoor(net/gross) | 16/19 | 16/19 | 25/28 | 25/28 | 25/28 | 30/33 | 30/33 |
| panel(net/gross) | 3/5 | 3/5 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 |
| Outdoor(net/gross) | 38/41 | 46/49 | 54/57 | 70/80 | 80/90 | 94/104 | 105/115 |
| Container Qty (20/40/40HQ)Pcs |
|
|
|
|
|
|
|
NINGBO AKL-Histar Electric Co., Ltd was founded in 2004. Main products consist of various electric appliance, and more than 70 kinds in all. with complete specifications, novel models, products are extensively applied to home and commercial department. Our products export to the whole world. Europe, South & North America, Southeast Asia, Africa and Middle East. Our factory obtains reliance and praise from customers and societies with excellent quality and competitive price.
Our company has passed CE, RoHS. COC, SAA. SONCAP. UL. SASO Certificate. For purpose to control products' quality well, we develop a whole set of standard testing equipment by ourselves.
We always insist on the management aim of "quality first, customers supreme", strive for top grade products and offer first rate service. We sincerely welcome the old and new customers to visit our factory, negotiate business, cooperate extensively and achieve common prosperity.
