| Prod Model: |
SF-512RV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable: |
Any Type of Universal Car |
| Certification: |
CE, RoHS, FCC |
| Voltage: |
DC 12V~DC32V |
| Type: |
Car Monitor |
| Video Output: |
4 Way Video Input, 1way Video Output |
| Audio Output: |
1 Way Audio Input Option |
Product Description
Four AV-IN, DC12V~32V, removable sunshade, High resolution digital panel
With four trigger wires, keystroke and remote control operation
Optional: Audio, three AV-IN
The OSD menu always is in a readable position whatever the image is Mirror or Normal.

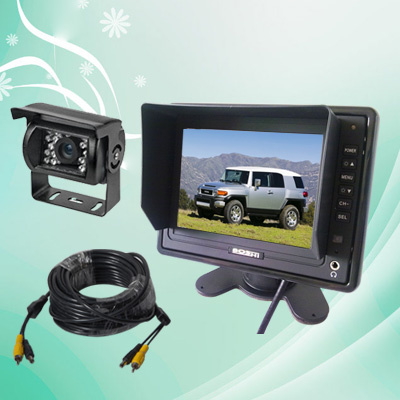

5 Inch Car Rear View monitor
Screen size: 5 inch brand new digital panell(4: 3)
Contrast: 300: 1
Brightness: 250cdm2
Viewing angle: L/R/U/D: 65/65/45/65°
Resolution: 640(W)*RGB*480(H)
System: PAL/NTSC
Power supply: DC12V~32V
Power: About5W
Visible area: 103*77mm
Operating temperature: -20º C~ 70º C
Storage temperature: -25º C~ +80º C
Video: Four-way video input, with trigger wires
The OSD menu always is in a readable position whatever the image is Mirror or Normal.
Optional function: Audio, three-way AV-IN
Operation mode: Keystroke, remote control
Dimension: (L)146*(W)110*(H)26mm
CCD Camera, Waterproof, IR, Night vision
Power supply: DC12V≤ 300mA
System: PAL/NTSC
Pixel: 628XRGBX582
Arrange: 120° (150° Optional)
TV line: 420
Video output: 1.0Vp-p, 75Ω
Focal length: F=2.9mm
Appearance size: 75X58X78mm
15m extension cable(RCA, AVIATION CONNECTOR, S JACK optional).
|
Screen Size: |
5 Inch |
|
Power supply: |
DC 12V ~DC32V |
|
Panel: |
Brand new digital panel |
|
Video: |
4way video input , one way out |
|
Audio: |
audio option |
Engaging in the R&D, manufacturing, and marketing of Car Rearview system, GUANGZHOU BOSHI ELECTRONICS FACTORY is a high-tech enterprise established in 2006 and the products are popular in all of the world owning to their high quality and good design.
BOSHI sticks to the management philosophy of "Quality first, honesty based! ". BOSHI has its own R & D and production of 1) Car Reversing System 2) Car TFT LCD Monitor 3) Car DVD Player 4) Car Camera 5) Car Transformer, Wide Supply, Filter, Video Distributor etc. The products are mainly fit for the field of reversing & security field and widely used in Car, Bus, Truck, Fire engine, Mail car, Police car, Camper, Garbage truck, Agricultural vehicles etc.
BOSHI based on quality management and HR strategy as it's core, based on meeting customer's requirement and supplying high quality products and perfect after-sales service as it's purpose. At the time of enterprise developing, BOSHI sincerely hope to establish long-term business and mutually beneficial relationship with customer from domestic and abroad! BOSHI will continue its efforts in the field of Security & Safety Technology, be committed to develop and produce more and better new products, toward the goal of becoming the world's top enterprise in car reversing system field!
