1. Product Name: Resistance Furnace, Heat Treatment furnace.
2. Model: Box Type Furnace,Chamber furnace
3. Usage: Heat treatment, quenching, annealing, tempering, heating.

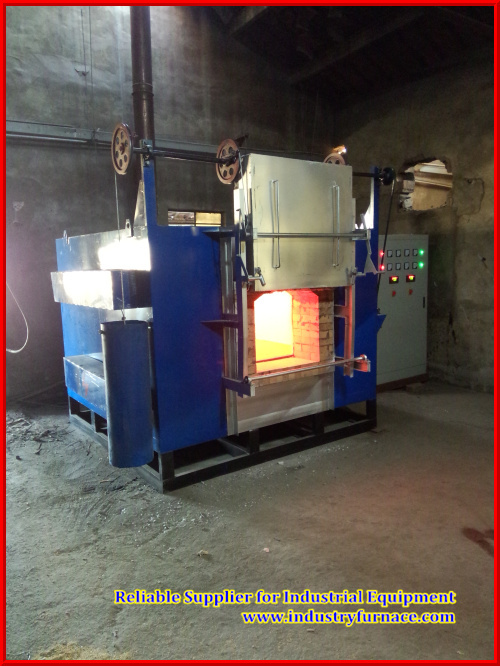

4. Equipment Photos:
5. Technical Specifications:
| Working Dimensions | Rated Temperature | Rated Power | Loading | Furnace Temperature uniformity | Control Accuracy | Heating zone | Heating elements connection | Empty furnace power loss | Empty furnace heating time |
| 1100-660-400 | 1150 | 45KW | 1000 | ±8ºC | ±1ºC | 1 | Y | ≤12KW | ≤3h |
| 1100-660-800 | 1150 | 65KW | 1300 | ±8ºC | ±1ºC | 1 | Y | ≤16KW | ≤3h |
| 1600-780-780 | 1150 | 95KW | 3000 | ±8ºC | ±1ºC | 1 | Y | ≤24KW | ≤3h |
| 2000-1000-1000 | 1150 | 150KW | 8500 | ±8ºC | ±1ºC | 1 | Y | ≤30KW | ≤3,5h |
| 3000-1000-1000 | 1150 | 210KW | 12000 | ±8ºC | ±1ºC | 2 | Y | ≤52KW | ≤4h |
| 3500-1200-1200 | 1150 | 290KW | 15000 | ±8ºC | ±1ºC | 2 | Y | ≤72KW | ≤4,5h |
| 4200-1200-1200 | 1150 | 330KW | 18000 | ±8ºC | ±1ºC | 3 | Y | ≤82KW | ≤4,5h |
| 2500-1300-1300 | 1150 | 260KW | 10000 | ±8ºC | ±1ºC | 2 | Y | ≤65KW | ≤4h |
| 2000-1500-1000 | 1150 | 210KW | 10000 | ±8ºC | ±1ºC | 2 | Y | ≤52KW | ≤3,5h |
| 2000-1500-1500 | 1150 | 270KW | 10000 | ±8ºC | ±1ºC | 2 | Y | ≤68KW | ≤4h |
| 3000-1500-1000 | 1150 | 270KW | 13000 | ±8ºC | ±1ºC | 2 | Y | ≤68KW | ≤4,5h |
| 4000-1500-1000 | 1150 | 330KW | 18000 | ±10ºC | ±1ºC | 3 | Y | ≤82KW | ≤4,5h |
| 3000-2000-1000 | 1150 | 330KW | 14000 | ±10ºC | ±1ºC | 3 | Y | ≤82KW | ≤4,5h |
| 3000-2000-1500 | 1150 | 430KW | 14000 | ±10ºC | ±1ºC | 3 | Y | ≤108KW | ≤4,5h |
| 4000-2000-2000 | 1150 | 640KW | 15000 | ±10ºC | ±1ºC | 5 | Y | ≤160KW | ≤4,5h |
| 4500-2000-2000 | 1150 | 690KW | 20000 | ±10ºC | ±1ºC | 5 | Y | ≤173KW | ≤4,5h |
| 8000-3000-3200 | 1150 | 1800KW | 40000 | ±12ºC | ±1ºC | 12 | Y | ≤450KW | ≤4,5h |
6. Equipment Package: Plastic film protection and plywood box.
7. Equipment Delivery: By sea container, train container, or by trucks.
8. Equipment Working Site:
9. Aftersales Service:
1.Paper documents:
We offer all related schemes for building furnace foundation, furnace installation, cables connections, pipes connections.
2.Installation and commissioning:
We offer engineers for assistant of equipment installation and commissioning.
3.Spare parts support:
We support all spare parts in time when there is need for all the time after sales.
