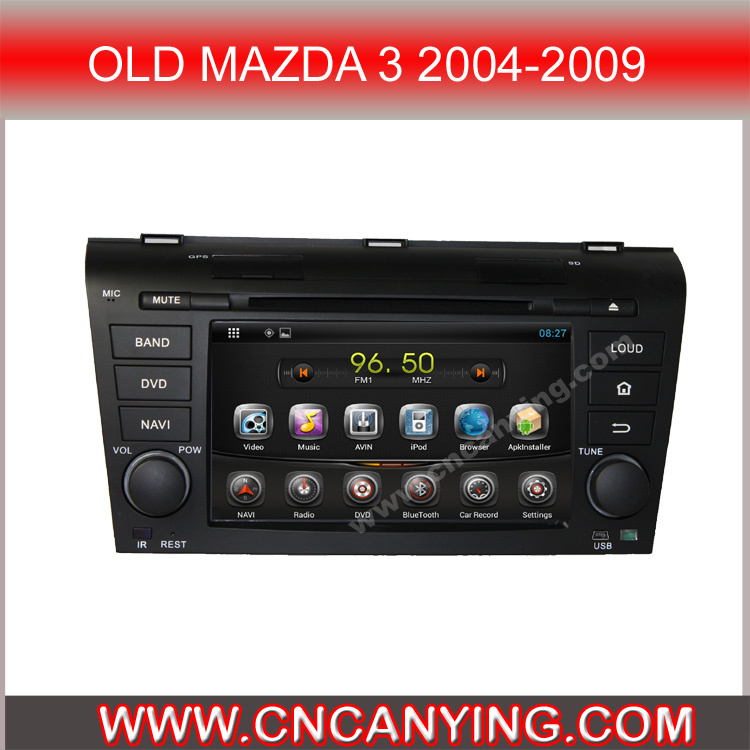

Special for OLD MAZDA 3 2004-2009
Android 4.2.2 pure android.
DVB-T(MPEG4) optional.
OS: Android 4.2.2 system
CPU: Rockchip 3066 Cortex A9 dual-core
Main Frenqency: 1.6GHz
RAM: Samsung 1GB DDR3
Nand Flash: 8GB
Capacitive multi-touch screen
GPS+iPod+BT+Radio+AUX IN
CAN BUS(including)
"GPS " SIRF III
Screen Capacitive and multi-touch screen (Original Hanstar Screen )
TFT drive IC RK3066
Loader FORYOU DL-30
Pick up HITACHI 860XH
Motor drive MABUCHI
Amplifer IC Toshiba 7384
Radio IC ST TDA7706
Power supply 4*50W
Bluetooth Free Wing FM3507
Video Decoder 1080P HW
WiFi Built in
DVR USB Camera (PC Standard)
Multi media Parameters
Music Format MP3, WMA, AAC, RM, LFAC etc
Video Format MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DIVX, Sorenson SparK, Spark, VP8, AVS Stream
Picture Format JPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency Range FM: 76.0MHz-108.0MHz
Frenqency Range AM: 522kHz-1620kHz
Country China, Europe, Eastern, Europe, Russia, USA1, USA2, Japan
DVD Parameters
Compatible Disc DVD/DIVX/MP4/MP3/MP2/VCD
Amplifer Parameters
Test Voltage 13.8V
Max output power 4*50W
GPS Parameters
Support Map Android 4.2.2 Map
Main Frenqency 1.6GHz
Map Solution 800*480
WiFi Parameters
Power supply Vcc_3.3V
Suppoted Protocol/standard IEEE802.11B/g/n compatible WLAN
Interface type USB2.0
Frequency 2.4-2.484GHz
Modulation OFDM/DBPSK/DQPSK/CCK
RF Power 15dBm
