Prod Model: |
ZW-A6916 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
OS: |
Android 4.4.4 System |
Screen: |
HD Capactive Screen |
Video: |
1080P H |
Weight: |
4.8 Kg |
Combination: |
iPod |
Placement: |
Dashboard |
Certification: |
ISO |
Voltage: |
12/24V |
Audio Output: |
L/R Channel |
Video Output: |
2 RCA |
Product Description

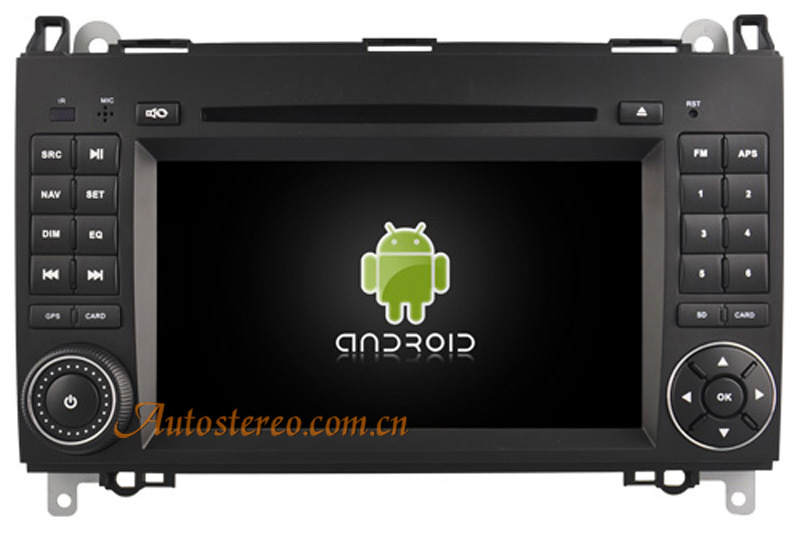

Car DVD Player Car GPS Navigation with Andriod 4.4.4 Audio&Radio System Multimedia Headunit For Mercedes Benz A CLASS(W169)(2005-2011)/B CLASS(W245)(2009-2011)/Viano/Vito/Sprinter,V-CLASS(2010-2011)
Capacitive Touch Screen + Built-in WiFi + Phonebook + iNand Momery 8GB +
RAM Memory DDR3 1GB + Radio RDS + USB + Steering Wheel Control
(Free Shipping+8GB Card with GPS Map)
Android 4.4.4 System
CAPACITIVE HD 1024X600 Screen
1080P HD Video
CPU: Rockchip 3066 Cortex A9 Dual-Core 1.6GHZ Frequency
1G DDR3 RAM Memory
Built In 8GB Inand
Built-In DVR Function With External Camera
External Bluetooth Microphone
Built-In WIFI Module
Support External 3G Dongle
Built-In Navigation With 3D Map (Map In Inand )
Quick Response After Lighting The Car: Within 1 Sec For Starting, Within 2 Secs For Sound,Within 3 Secs For Rearview,
Within 25 Secs For Operation When Tons Of Applications Installed
APE Music
Support HD 2D & 3D Games
Front And Rear Camera Can Work Together
Support Thousands Of Softwares Downloading From Android Market
Support SD/MMC/SDHC SD Ports, SDHC Supports Max 32G, HDD
Bluetooth Supports All Brands Cellphones,Phonebook Input,Music Playback, Supports Name Search By A-Z
Video Support: WMV(VC1 Code)AVI (H.264, MPEG4,Xvid, WMV),MP4 (H.263, H.264, MPEG4), MPG(MPEG-2),M4V(H.264, MPEG4)
Configuration details |
OS | Android 4.4.4 system |
CPU | Rockchip 3066 Cortex A9 dual-core |
RAM | DDR3 1GB |
Flash | Built in 8GB |
Video Decode Support | 1080P |
Touch Screen | Capacitive touch screen |
GPS |
Map | Stored in memory or SD card |
Map Formate Support | Google map online, Sygic, IGO, 3D maps, etc. |
Media Player | Yes |
Card Supported | Micro SD Card |
INTERNET |
3G | Support 3G WCDMA 3G dongle |
Wi-Fi | Built-in WiFi Receiver |
Android Apps Installation | Yes |
Display Screen |
Screen Type | Digital TFT touchscreen |
Resolution | HD 1024X600 |
Screen Dimension | 7 inch 16:9 |
Wall Paper | Live wallpaper |
GUI Interface | 3D Interface |
Language |
Main Interface Language | English, Deutch, Franch, Portuguese, Spanish, Italian, Espanol,etc. |
DVD Control Language | English,Francais,Spainish,Italian,Portuguese,etc. |
DVD Playback |
Disk Format Supported | DVD-Video, DVD±R/RW, DVD-ROM, CD-DA, CD-ROM, CD-R, CD-RW |
Media | DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
Bluetooth |
A2DP | Yes |
Microphone | External Mic |
Received Call | Yes |
Dialled Call | Yes |
Missed Call | Yes |
Download Contacts | Yes |
Store Contacts | Yes |
TV Tuner |
Built-in Analog TV | No |
Analog TV System | / |
Built-in DVB-T Tuner | / |
DVB-T Format | / |
Built-in ISDB Tuner | / |
Radio |
AM Frequency Range | 522-1620 (Europe), 530-1710 (America) |
FM Tuning Range | 87.5-108 (Europe), 87.5-107.9 (America) |
RDS | Yes |
iPod Control |
Touchscreen Control | Can Control Music Through Touchscreen |
Show Information Of Music | Yes |
Play Video | No |
Storage Media |
SD Card Slot For Music/Movie | Micro SD Card Slot |
MAX Memory Supported 32GB |
USB Port For Music/Movie | Mini USB Port |
MAX Memory Supported 32GB |
Position: Front Panel |
Portable HD | Yes |
Video & Audio |
Video Input | 1-Channel RCA Input |
Video Output | 2-Channel RCA Output |
Audio Input | 2-Channel RCA Input |
Audio Output | 4.1Channel RCA Output |
Reverse Camera Input | Yes |
3 Zone Out | No |
Other Functions |
2-Zone | Yes (Listen Radio/CD While Watching GPS Image) |
3-Zone | No (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV From The Sub-monitor Simultaneously) |
Pictrue In Pictrue | No |
Steering Wheel Control Function | Yes |
CANBUS | Yes |
MFD | No |
TMC | No |
V-6 Disc Changer Memory | No |
CDC | No |
Parking Assistance | No |
Game | Yes |
Button Back Light | Red button light |
Accessories |
Power Cable*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,USB Cable*1 |
Please tell us the below info while you place the order.
1) What is your car model and produce year?
2) Please Kindly contact with us if you need the following Optional items, we will ship them as one package to you by express.
1. Parking Reverse Camera--US$22
2.Wireless module for reverse camera--US$22
3.WIFI dongle--US$9.5
4.3G dongle--US$28
5.Car DVR video camera recorder for S100 S150 S160 stereo-- US$55
6.Car panel removal installer kit US$7.99
7.Digital TV tuner MPEG-4 for S160 stereo
CCG (Chinese Connection Group Limited) specializes in development and production of Car DVD, Car GPS navigation, Car SAT NAV headunit more than 8 years. We are providing good quality products and service for our clients. Our products have been delivered to Europe, America, Africa and Oceania, etc. We have been gaining a high reputation among our partners and customers in terms of OEM/ODM technology and quality.
Emphasis on product quality
We develop and manufacture Car DVD player, Car GPS navigation system to all our clients. To ensure the consistency of our product quality, Our QC members with five years' experience on average monitor the entire production process. We also offer one year warranty.
Emphasis on Management
We insist on high standard, scientific development thoughts, devoted to pursuing continuous creativity of technology and management. Relying on the advanced equipments and high & stable quality, We have been approved by ISO9001: 2000, FCC, CE. We benefit all our customers without any trouble of product quality.
Delivering in just One or Three working days
We possess an 800-square-meter factory equipped with five production lines. Our advanced equipment includes automatic chip SMT lines, dust-free vacuum refilling machines and dust-free vacuum packaging machines. We produce 1, 0000 units every month. Our delivery lead time is just one or three working days.
Providing best products and best service is our company target!
Contact us today by email or phone and start with a small order, you will find we are your most valuable cooperator.
