| Prod Model: |
JC403M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Digital |
| Maximum Pixels: |
<1 Million |
| Optical Zoom: |
Without Optical Zoom |
| Image Sensor: |
CMOS |
Product Description

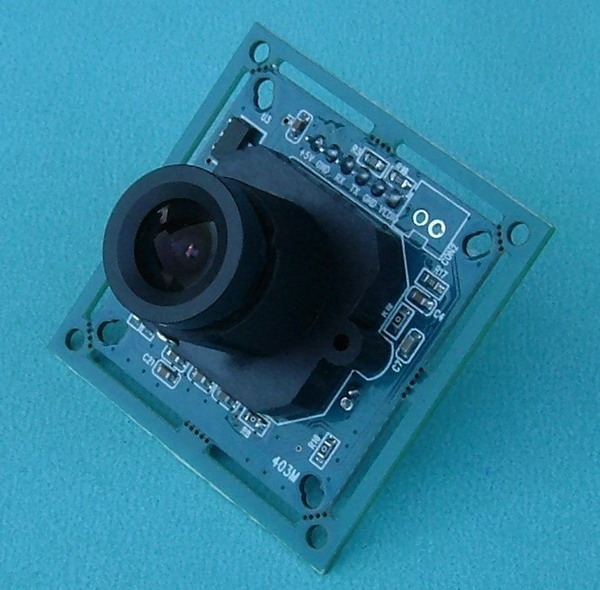

Feature
1. Small in size: 32mm x 32mm (L x W).
2. 0.3M CMOS sensor, VGA resolution, down sample to QVGA.
3. Video-out: VGA & 30fps, optional.
4. Low power consumption, 5.0V operation.
5. UART interface support up to 115.2Kbps.
6. Built-in JPEG CODE.
7. Built-in lens, optional.
Item Specification Remark
Pixel Size PAL: 628 x 582 / NTSC: 510 x 492
Image Sensor 1/4" CMOS sensor MT9V011
Baud Rate 9.6Kbps~115.2Kbps
Output CMOS level
Image Format JPEG
Operating Voltage 5.0V± 10%
Working Current 90 mA
Lens Construction: 2G2P+IR filter
Effective Focal Length: 3.6mm
F#: 2.0
FOV: 80°
Distortion < -3.5%
Relative illumination: 60%
Operating Temp. -20C~+60C
Deqing Jiahe Electronic Technology Co., Ltd. (JHE) specializes in the designing, manufacturing and marketing the hardware and software of embedded electronic modules. And JHE is also a supplier of all kinds of electronic components.
In the field of embedded electronic modules. We dedicate to the design, production and sales of hardware and software of all kinds of image processing modules and mainboards. We aim to support our customers in converting their requirements to final products and systems in a highly efficient, top quality and timely manner. We have worked closely with main manufacturers of all kinds of chipsets; We have a professional technology team to respond you quickly. We would like to offer our customers a complete range of design, sourcing, manufacturing and integration services.
In the field of electronic components. Our team has worked in this field for more than 20 years; In the beginning we worked in frequency control components; After 5 years, we entered into resistor field; Later we further expanded our product lines to include Relay, Switch, PTC, NTC, Varistor, Capacitor, Connector, Digital Display, Power converter, LED, Battery, Transistor and Potentiometer etc. In order to help our customers to obtain all electronic components from one unique source, we established JHE in 2012. Having strong technical strength, advanced production machines, precise test equipments, effective raw material management system and excellent customer services, we have won a good reputation in the electronics industry. Our products are strictly in accordance with ISO9001: 2008, TS16949: 2009 and IEC standards.
