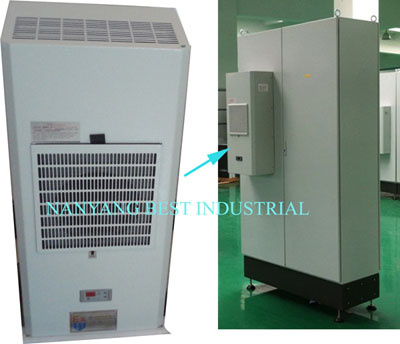

Cabinet Panel Explosion Proof Air Conditioner
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Description
Cabinet panel Explosion proof air conditioner 1. Product Features: . The adoption of international famous brand compressor, industrial machine design, makes the system safety and reliability, heating/cooling with high efficiency, long life of operation . The system is designed for outdoor electric cabinets.It is applicable for the scenarios where internal equipment of the cabinet emits a large quantity of heat and is sensitive to the environment temperature and where the indoor environment needs to be isolated from the outdoor environment completely. . Application and location: 1. Equipment cabin of Mini ICT room; 2. Equipment cabin of RRU outdoor cabinet; 3. Equipment cabin of 4G base station outdoor cabinet; 4..Equipment cabin of micro station outdoor cabinet; 5. Electric power outdoor cabinet; 6. Industrial control cabinet refrigerating; 7. Laboratory dedicated refrigerating; 8. Museum, wine cellar dedicated refrigeration; 9. High luminance LCD/LED dedicated refrigerating.Suitably used in the hazardous area for the oil, gas, petrochemical, pharmaceutical and marine industry ..Advanced technology on anti-corrosion and anti-dust..Used in the hazard area Zone 1,Zone 2 (IEC hazard area classification),Class 1,Class 2,Division 1,Division 2, Group B,C,D area.(NEC hazard area classification).Explosion-proof mark : Exdmbib II BT4, Explosion proof protection can be designed according to the ambient environment.2.Technical specifications: | Cooling Capacity | W | 800 | 1000 | 1500 | 2000 | 3500 |
| Btu/hr | 2800 | 3500 | 5000 | 6800 | 12000 |
| Adjustable Cabinet Temp | ºC | 25-38 |
| Ambient Temp Limits | ºC | -5-43; -5-55 |
| Power Supply | V/ph/Hz | 220/1/50 |
| Rated Current | A | 2.3 | 2.6 | 3.8 | 4.3 | 7.3 |
| Input Power | W | 450 | 540 | 790 | 910 | 1606 |
| Cabinet Air Volume | m3/h | 230 | 230 | 270 | 320 | 610 |
| Ambient Air Volume | m3/h | 340 | 340 | 780 | 810 | 1150 |
| Refrigerant | R22/R134A |
| Noise Level | dB (A) | 55 | 55 | 60 | 60 | 70 |
| Net Weight | kg | 26 | 32 | 37 | 49 | 65 |
Dimensions | H | mm | 630 | 690 | 875 | 1010 | 1232 |
| W | mm | 350 | 360 | 370 | 390 | 436 |
| D | mm | 200 | 210 | 240 | 240 | 290 |
| Ex-marking | Exdmbib IIBT4 |
