CA18 Professional Stable Circuit and High Performance Audio Power Amplifier
2 channels power amplifier
High power pro audio amplifier

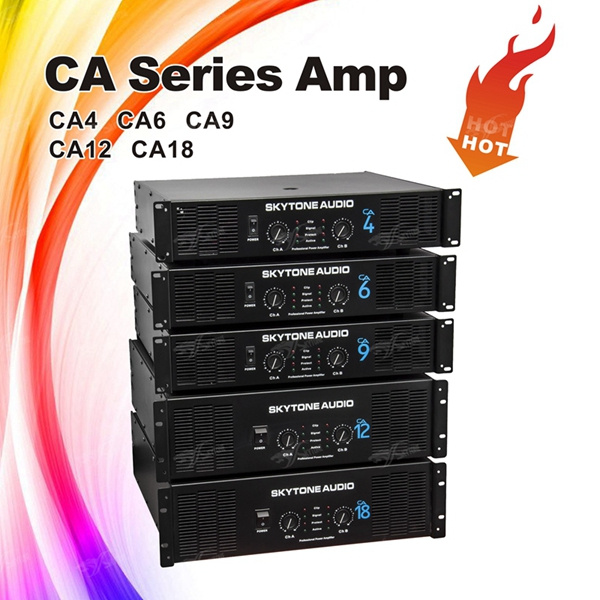

Professional speaker amplifier system CA Series Professional Power AmplifiersPRODUCT DESCRIPTION: --This CA Series Power Amplifier is H Class circuit.
--It is a circuit between the digital amplifier and traditional amplifier.
--And it's designed according to the professional HI-FI(high fidelity) standard.
--There're two groups of high-power tube installed on both sides, in order to enhance the cooling efficiency.
--The amp is elaborated by the imported Japanese original Toshiba tube and Japanese original ELNA capacitor, which is also used by the US GM company, for expanding flow output.
--H class circuit is a kind of fast recovery circuit which is equipped with high efficiency intelligent cold system, DC protection, short circuit protection, overheating and overload protection,ect. It can working at 2 Ohms stably for a long time.
--The amp also makes the sound of speakers to be wide field, structured, thin, clear,uninhibited, glossy, good texture, perfect fitting the high-end speakers.Other models of CA Series professional amplifier:CA4 pro amplifier equipment
CA9 2 channels power amplifier
CA12 professional audio amplifier
CA18 speaker amplifier system
| Technical Specification | CA4 | CA6 | CA9 | CA12 | CA18 |
| PMPO peak power | 4 ohmsBridge | 2100 | 2950 | 3200 | 3800 | 4600 |
| 8 ohmsBridge | 1600 | 2300 | 2600 | 3450 | 4100 |
| 2 ohms Stereo | 1200 | 1550 | 1850 | 2100 | 2850 |
| 4 ohms Stereo | 900 | 1250 | 1400 | 1750 | 1950 |
| 8 ohms Stereo | 600 | 800 | 1000 | 1200 | 1400 |
| 20Hz-20KHz, ≤ 0.1%THD rated power | 4 ohms Bridge | 1750 | 2500 | 2750 | 3000 | 4100 |
| 8 ohms Bridge | 1350 | 2100 | 2350 | 2600 | 3750 |
| 2 ohms Stereo | 980 | 1250 | 1600 | 1800 | 2400 |
| 4 ohms Stereo | 750 | 900 | 1250 | 1400 | 1850 |
| 8 ohms Stereo | 400 | 600 | 800 | 1000 | 1300 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Sensitivity overheating management system | √ |
| Overheat protection | √ |
| Input overload protection | √ |
| Output overload protection | √ |
| Soft start protection | √ |
| Limiting protection | can reach 10V |
| Frequency Response | 20Hz-20KHz± 3dB |
| Sensitivity | 0.775v | 0.775v | 0.775v | 0.775v | 0.775v |
| Link | Input | XLR 1/4Jack | XLR 1/4Jack | XLR 1/4Jack | XLR 1/4Jack | XLR 1/4Jack |
| Output | SPEAKON | SPEAKON | SPEAKON | SPEAKON | SPEAKON |
| Filter electrolysis capacity | 40000uf | 40000uf | 60000uf | 60000uf | 60000uf |
| Input impedance | Balance input | 20Kohms |
| Unbalanced input | 10Kohms |
| String sound attenuation20Hz-20KHz, 8ohms | ≥ 65dB |
| 8ohmsS/N | ≥ 108dB |
| Damping coefficient1KHz& 8ohms | ≥ 900 | ≥ 800 |
| Intermodulation distortion20Hz-20KHz | ≤ 0.02% |
| Total harmonic distortion20Hz-20KHz | ≤ 0.05% |
| Phase response1W& 8ohms, 20Hz-20KHz | ≤ ± 8° |
| Conversion rate | ≥ 60V/µ s |
| Output circuit type | H | H-II |
| Power consumption 4ohms, 1/8RMS/230V | 250 | 450 | 550 | 650 | 800 |
| Installation space | 2U |
| Cooling system | intelligent system, automatic adjustment according to changing temperature |
| Size(W× H× D) | 620× 580× 180mm |
| Net Weight | 20.25kg | 27kg | 28kg | 37kg | 38kg |
| Technical support and after-sales service | 1 years Warranty non-artificial damage |
Real photos:
![]()
![]()
Any question about CA Series power amplifier, welcome for details, we're glad to help you.
