| Prod Model: |
CA20 |
| Markets: |
Southeast Asia,Mid East |
| Usage: |
Hi-Fi |
| Used For: |
Professional |
| Output Number: |
8 |
| Voltage: |
AC 220V |
Product Description

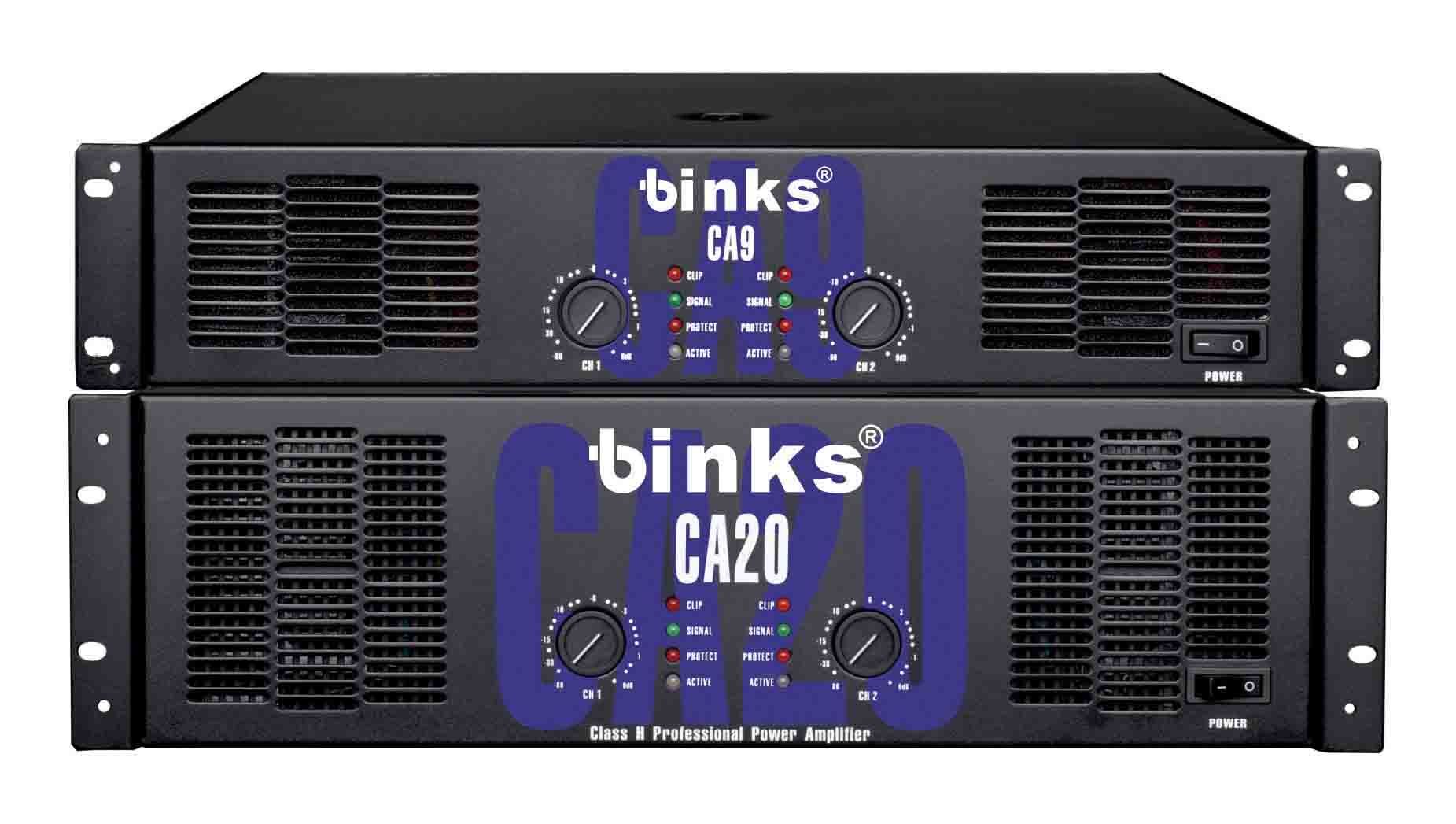

1350W High Quality Professional High Power AmplifierFeatures1.CA Series provide extensive protection features such as Overheat short currents; DC protection; zero current; clip limiter; soft start
2. Copper transformer,big capacitor,level-2 or 3 power supply.
3. Flow-through ventilation from front to back
4. 200W-1300W power area
5.High power toroidal Copper transformer
6.Internal heat sinks with forced air cooling for rapid, heat dissipation
7. Dual fans for proper cooling to maintain performance and proper working levels
8. Can endure 8ohm, 4ohm and 2ohm loads
Technical Parameters:| Model | CA2 | CA4 | CA6 | CA9 | CA12 | CA18 | CA20 |
| Stereo power 8Ω | 2×200W | 2×300W | 2×400W | 2×520W | 2×800W | 2×1100W | 2×1350W |
| Stereo power 4Ω | 2×300W | 2×450W | 2×600W | 2×780W | 2×1200W | 2×1800W | 2×1950W |
| Stereo power 2Ω | 2×400W | 2×600W | 2×800W | 2×1040W | 2×1600W | 2×2200W | 2×2600W |
| Bridge power 8Ω | 600W | 900W | 1200W | 1560W | 2400W | 3600W | 3900W |
| Bridge power 4Ω | 800W | 1200W | 1600W | 2080W | 3200W | 4400W | 5200W |
| Frequency Resoponse | 5Hz-35KHz(+0/-0.5dB) | 20Hz-20KHz+0/-0.3dB |
| THD+N | <0.01% 8Ω 1KHz | <0.03% 8Ω 1KHz |
| Sighal to Noise | >100dB | >100dB | >100dB | >100dB | >95dB | >95dB | >95dB |
| Model | CA2 | CA4 | CA6 | CA9 | CA12 | CA18 | CA20 |
| Damping coefficient | >400 | >400 | >400 | >400 | >400 | >400 | >400 |
| Crosstalk | >70dB | >70dB | >70dB | >70dB | >70dB | >70dB | >70dB |
| Input impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input sensitivity | 1.0V/2.0V | 0.775V/1.0V/1.4V |
| Protection | Output Relay-Zero Cument Switch,Irtellctual Cup Limiter. |
| High | 2U | 2U | 2U | 2U | 3U | 3U | 3U |
| G.W | 21KG | 23KG | 26KG | 27.5KG | 39KG | 40KG | 41KG |
| Dimension(L×W×H) | 575×570×158mm | 655×590×205mm |
Packing Pictures![]()
Detailed Pictures![]()
![]()
![]()
Located in Enping city with convenient traffic, Brun Audio Equipment Factory is a professional manufacturer of audio equipment, power amplifier and mixer. We integrate design, research, production and sales and adopt advanced technology.
Our products widely use for Entertainment, meeting room, performance and so on. With years of production experience, we are able to meet all the needs from our clients. We have won a high reputation both at home and abroad. We sincerely hope to cooperate with customers from all over the world to create a bright future together. If you are interested in any of our products, please contact us for more details.
