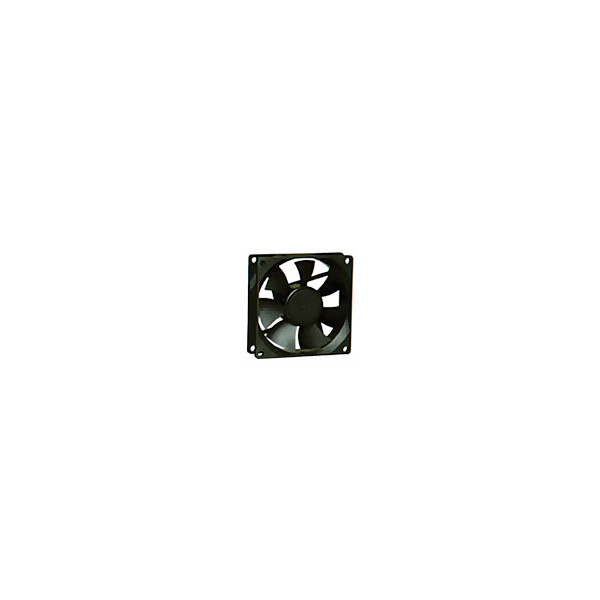

Brushless DC Fan TFS8025 Series

Name: Brushless DC Fan TFS8025 Series
Brand: ec-portal.com
SKU: 765636745
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Insulation Resistance: more than 10mΩ between housing and plus end of lead wire redcolor at 500V DC.

Dielectric strength:no damage can be found at 600VAC.2 secretary,between housing and plus end of lead wire.

Material:
Frame:UL94V-0 70% P.B.T+30% F.R.P.
1mpeller:UL94-0 70% P.B.T. +30% F.R.P
Bearing:preclsion ball bearing system precision.Qilimpregnated sleeve bearing system.
Operating temperature: -10to+70ºC.

Storage temperature: -40 to+70ºC

Opreating voltage: rated voltage ± 15%.

Name System OF BRUSHLESS DC FAN:

Technical Parameter:

Dimension (mm)	Model	Voltage (VAC)	Current (AMP)	Power (Watts)	Speed (RPM)	Air Flow (CFM)	Pressure (mmH2O)	Noise (dBA)	Weight (Gram)
80X80X25	TFS8025L	12V	0.10	1.20	2000	21.60/0.61	1.63	24.25	75
	TFS8025M	12V	0.12	1.44	2400	25.92/0.74	2.56	27.85	75
	TFS8025H	12V	0.20	2.40	3000	32.40/0.92	3.48	32.60	75
	TFB8025L	12V	0.08	0.96	2000	21.60/0.61	1.63	24.25	75
	TFB8025M	12V	0.12	1.44	2400	25.92/0.74	2.56	27.85	75
	TFB8025H	12V	0.20	2.40	3000	32.40/0.92	3.48	32.60	75
	TFS8025L	24V	0.10	2.40	2200	23.76/0.76	2.33	26.32	75
	TFS8025M	24V	0.12	2.88	2600	28.10/0.80	1.96	30.72	75
	TFS8025H	24V	0.16	3.84	3000	32.40/0.92	3.48	33.60	75

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation:	Table
Type:	Air Cooling Fan
Speed:	3 Speed
Power Supply:	Electric
Power:	<100W
Material:	Plastic
Application:	Industrial
Timer:	Without Timer
Remote Control:	Without Remote Control
