Brazil Inmetro Solar Water Heater Details

Advantage of INMETRO Solar Water Heater
1. All the thickness of our vacuum tube is 2.0mm, which is the unique advantage of our
Solar water heater and can make our solar system have a high hail resistance
(As we know, there are often hailstorm or Hurricane, so the 2.0mm thickness of vacuum
Tube will make our solar water heater have a better performance).
2. As the tube we used is vacuum, so it can keep our solar system have a better
Insulation than plat panel system

Solar Water Heater Specification:
1.Working Principle:

Feature:
Solar Water Heater is one of the most favorite on the international market.It was scientifically and specially designed,is easy to install and operate.The important point is it can feed water automatically and ensure the outlet water as stable temperature,it will always provide you hot water.

2. Solar Water Heater Product Details:

Model No: DIYI-NP01
Inner tank: SUS 304-2B/0.41mm
Outer tank: Galvanized steel/0.41mm / SUS304-2B/0.41mm
Insulation: high density polyurethane foam 50mm
Vacuum tube:47*1500mm/58*1800mm
SS-CU-AIN/ALN or AL-N-AL coating
Bracket:Galvanized steel 1.5mm/SUS 201 1.2mm
20/25/38/45/50 degree
Accessories:UV stablilized high temperature silicon
Capacity: 100L 150L 200L 250L 300L

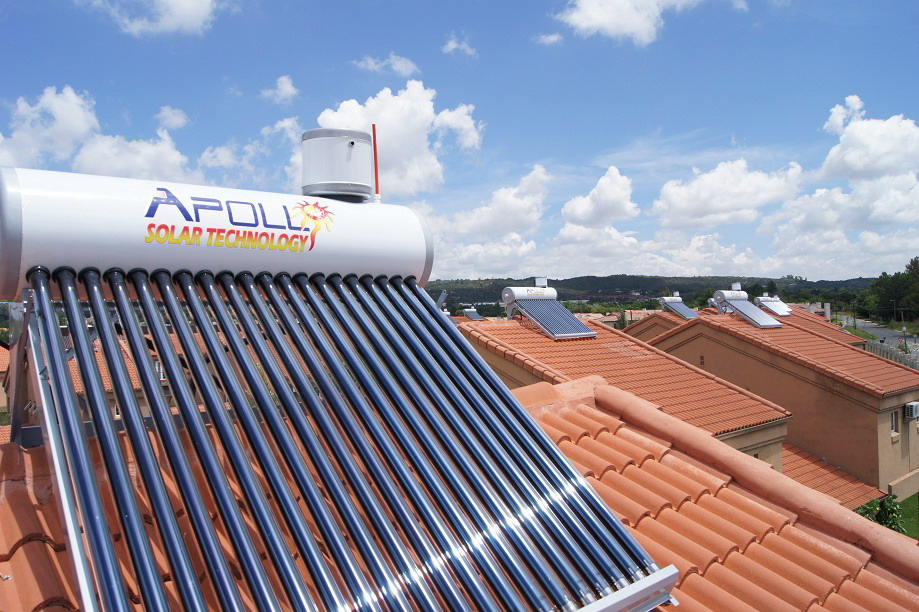

3. Clients Installing Photo:

Type	Area(M 2 )	Vacuum tube			Volume(L)	GrossWeight (KG)	20GP/40GP/40HQ Loading Qty(sets)
Type	Area(M 2 )	Φ(mm)	Length(mm)	Qty(pcs)	Volume(L)	GrossWeight (KG)	20GP/40GP/40HQ Loading Qty(sets)
DIYI-NP01-15	1.979	58	1800	15	150	78	53/109/130
DIYI-NP01-18	2.382	58	1800	18	180	85	48/93/112
DIYI-NP01-20	2.651	58	1800	20	200	94	40/82/98
DIYI-NP01-25	3.189	58	1800	25	250	97	30/64/75
DIYI-NP01-30	3.995	58	1800	30	300	112	25/52/62

Prod Model:	DIYI-NP01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	SABS
Inner Tank:	SUS 304-2b/0.41mm
Outer Tank:	Galvanized Steel/0.41mm / SUS304-2b/0.41mm
Application:	Water Heater
Pipe Material:	Glass
Pressurized:	Non-Pressure

Jiaxing Diyi Solar Technology Co., Ltd located in Haining City, Zhejiang Province, in the East of Shanghai and west of Hangzhou with the convenient transportation, the total area 3000 square meters, Through 8 years' development, we have the annual output of 50, 000 Units solar water heaters. Also we have successfully entered Europe, Africa, South Korea, Australia and Southeast Asia with our unique advantages in stable quality and competitive price.
As a manufacturer owning the most advanced manufacturing equipment for producing vacuum tube and solar products, And we have got the poweful certificates, such as ISO9001: 2000 certificate, SABS, Solar Keymark and SRCC. We are specialized in vacuum tubes, solar collectors and solar water heaters. Now our factory is in Haining City, Zhejiang Province which is for producing solar collector and solar water heater with our own brand-"DIYI".
Also we could produce specified products according to customers' designs or samples.
Meanwhile, as a manufacturer, from the initial tube source to final finished products, we exactly control our quality at every working procedure in order to supply the best quality for customers. We also have a good after-sales service system and can gain the feedback in time.
We warmly welcome both domestic and overseas clients to create the win-win cooperation, and we are looking forward to having opportunities to become your future supplier. Both OEM&ODM are acceptable, all your attention and supports will be highly appreciated.
