Block Ice Making Maker for Making 2t Ice Block Within 24hours

Details Descriptioin:

2T Per Day Block Ice Plant for Making Block Ice for Food Preservation

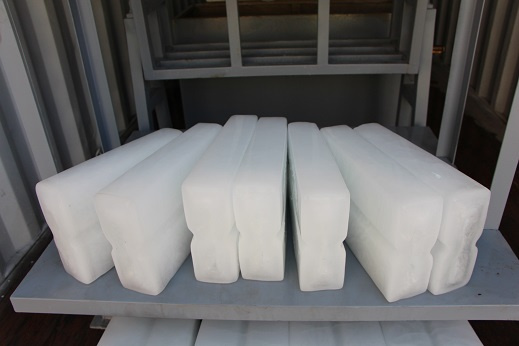

What is block Ice?

Block ice is like a cuboid ,which has a large dimension but has small contact area so it does not melt easily.

It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels and so on.


Application fileds of the block ice plant

1.Human consumption ice plant

2.Chemicals and concrete projects

3.Port ice plant

4.Coffee shop, bar, and hotel, etc

5.Supermarket, convenience store and restaurant, etc

6.Aquatic products and food fresh preservation

7.Logistic fresh preservation

8.Chemicals and concrete projects

9.Mineral chemical Cooling


Feature of Snowell block ice plant

a. Ti Pipe is used as evaporative coil to improve the heat transfer effect, ad its stainlessness, anti-corrosion can guarantee the long service time.

b. The stainless PE parts between the brine and the fresh water is proper to mode and weld. And it works very well in a cold condition.

c. The particular design of ice thawing tank and ice dumping unit bring easier operation. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.

d. Modular and integrated design resures the blocki making plant is easy to ship, move and install on the spot.

e. Every brine refrigeration ice block making plant can be customized according to our clients requirements.The brine


Brine refrigeration block ice plant technical parameter.


Model	Capacity	Refrigerant	Electricity	Installment	Operation	Dimension
			consumption	power	weight
--	Ton/D	--	Kw	Kw	Kg	mm
ZB5T	5	R22/R404A	21.14	25	Unit	L1400*W1000*H1250
					Evaporator	L4800*W1000*H2250
					Cooling tower	Ø1380*H2170
ZB10T	10	R22/R404A	40.69	50	Unit:1680	L1800*W1000*H1450
					Evaporator:	L4800*W1000*H2250
					2860*2
					Cooling tower:670	Ø2000*H2410
ZB15T	15	R22/R404A	60.6	75	Unit:21060	L2000*W1200*H1600
					Evapoorator:	L4800*W1000*H2250
					2860*3
					Cooling tower:1120	Ø2175*H2565
ZB20T	20	R22/R404A	88.5	105	Unit:2896	L2400*W1600*H1800
					Evaporator:	L4800*W1000*H2250
					2860*4
					Cooling tower:1300	Ø2650*H2645
ZB25T	25	R22/R404A	98.8	120	Unit:3260	L3200*W1800*H2200
					Evaporator:2860*5	L4800*W1000*H2250
					Cooling tower: 1630	Ø3050*H2780
ZB30T	30	R22/R404A	120.3	150	Unit:3500	L3000*W2000*H2200
					Evaporator:2860*6	L4800*W1000*H2250
					Cooling tower:2730	Ø3300*H2785



After-sales Service for the block ice plant

1. Two years warranty

2. Offer Spare parts free of charge within the warranty period.

3. Technical Documents

 When beyond the warranty, Snowell will supply the parts and service only for factory price.


Company Profile

Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.


Frequent Asked Questions(FAQ)

Q1: What is the delivery time?

A1:
   1).The ice making machine type. Our main product line includes Flake Ice Making Machine,Tube Ice Making Machine,Block Ice Making Machine. The manufacturing is totally different. So the time and affort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity

   2). Different Ice Daily Capacity: we have 1T,2T,5T,10T,20T,25T,30T,40T,50T ice making machines. For small capacity ice making plant(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).


Q2.: What is the payment terms and trder terms?

A2: Normally, we accept T/T,  30% Deposit and 70% balance paid before delivery.
      Trade Terms: FOB Shenzhen


Q3: Do I need to install the ice machine by myself?

For small ice plant, we ship it as a whole unit. So you just need to prepare power and water to run the machine.

For some larger ice machine making plant, we need to keep some components seperate for shipping convenience. But no worris about that. An installation brochure will be sent to you,it's very to install the machine.

Q4: For Water Cooled and Air cooled Machine, Which one is better?

A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
