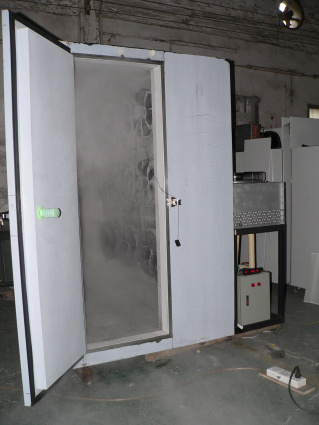

Blast Freezer / Quick Freezer /
Shock Freezer
1. All in stainless steel 304 in both sides, exterior 1.0 mm thick, interior 0.8 mm thick
2. It can bring A food capacity of 200Kg from +70 ° C to -35° C in 3 hours
3. Designed to fit trolleys of 500*600*1850mm
4. Exterior size: 1630*1200*2140mm
5. Insulation panel: 120mm
6. Compressor: TECUMSEH/ copeland/Bitzer
7. Gas: R404A
8. Trolley size: 500*600*1850mm
| Model | Dimension(mm) | Inner Size(mm) | Package size | Capacity(KGS) | Temperature and time | Trolley | Trolley Size(MM) (adjustable) | Compressor | Refrigerant | Insulation Thickness | NW(KG) | GW(KG) | Power(KW) | Voltage | Material | Rated Current |
| BF-1 | 1200*1080*2140 | 960*740*1420 | 1260*1160*2240 | 60 | in=70 C / out=
-35 C ;180min | 1pc trolley 18 layers | 500X600X1400 | copeland&bitzer&tecumsch | R404a | 120mm | 280 | 360 | 3 | 380V/50HZ | SS304 | copeland:9.1 |
| BF-2 | 1630*1200*2140 | 1300*960*1420 | 1690*1260*2240 | 120 | in=70 C / out=
-35 C ;180min | 2pc trolley 18 layers | 500X600X1400 | copeland&bitzer&tecumsch | R404a | 120mm | 320 | 400 | 4.5 | 380V/50HZ | SS304 | copeland:12.6 |
| BF-3 | 2230*1200*2140 | 1900*960*1420 | 2290*1260*2240 | 180 | in=70 C / out=
-35 C ;180min | 3pc trolley 18 layers | 500X600X1400 | copeland&bitzer&tecumsch | R404a | 120mm | 450 | 530 | 6 | 380V/50HZ | SS304 | copeland:15.1 |
| BF-4 | 1630*1840*2140 | 1300*1200*1420 | 1690*1900*2240 | 240 | in=70 C / out=
-35 C ;180min | 4pc trolley 18 layers | 500X600X1400 | copeland&bitzer&tecumsch | R404a | 120mm | 620 | 700 | 7.5 | 380V/50HZ | SS304 | copeland:19.4 |
| BF-1-S | 1200*1080*2140 | 960*740*1900 | 1260*1160*2240 | 100 | in=70 C/ out=
-35 C ;180min | 1pc trolley 28 layers | 500X600X1850 | copeland&bitzer&tecumsch | R404a | 120mm | 300 | 360 | 4.5 | 380V/50HZ | SS304 | copeland:14 |
| BF-2-S | 1630*1200*2140 | 1300*960*1900 | 1690*1260*2240 | 200 | in=70 C / out=
-35 C ;180min | 2pc trolley 28 layers | 500X600X1850 | copeland&bitzer | R404a | 120mm | 380 | 460 | 5.6 | 380V/50HZ | SS304 | copeland:17.6 |
| BF-3-S | 2230*1200*2140 | 1900*960*1900 | 2290*1260*2240 | 300 | in=70 C / out=
-35 C ;180min | 3pc trolley 28 layers | 500X600X1850 | copeland&bitzer | R404a | 120mm | 580 | 660 | 7.5 | 380V/50HZ | SS304 | copeland:21.5 |
| BF-4-S | 1630*1840*2140 | 1300*1200*1900 | 1690*1900*2240 | 400 | in=70 C / out=
-35 C ;180min | 4pc trolley 28 layers | 500X600X1850 | copeland&bitzer | R404a | 120mm | 650 | 730 | 11 | 380V/50HZ | SS304 | copeland:27 |
