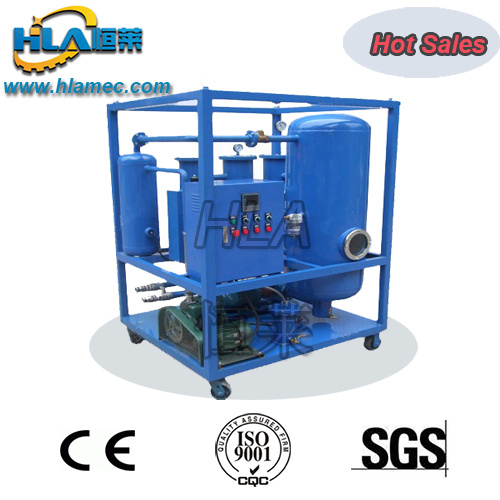

Black Color Recover Lube Oil Purifier
| Price: |
US $ 2000-10000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Application: LVP-series lube oil purifier is designed and produced for cleaning of used industrial oil, such as hydraulic oil, gear oil, compressor oil etc., It combined latest coalescer and vacuum technology to quickly remove large amounts of free water and trace moisture from lube oil. Meanwhile, the high precise filter elements of LVP lube oil purifier can remove 95% particles, which can reach ISO 15/13/10 Cleanliness Level. The waste oil can be reused in industrial equipment after filtration by LVP lube oil purifier, which can save maintenance cost and improve the performance of your industrial equipment. Features:1. Breaking emulsion, dewatering, removing particles2. High efficient vacuum vessel with coalescer elements3. Latest duplex-Stereo film evaporating technology4. Best interlocked protective system make lube oil purifier works safely. Technical specification| Model | LVP010 | LVP020 | LVP030 | LVP050 | LVP100 | LVP150 | LVP200 | LVP300 |
| Capacity(L/min) | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
| Working vacuum | -0.06~-0.095 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Temperature range | 20-80ºC |
| Water content | ≤20 ppm |
| Gas content | ≤ 0.1% |
| Demulsifying value | ≤8 min(GB/F7035) |
| Cleanness | NAS 6 grade |
| Filtering precision | ≤1 micron |
| Continuous work | 100 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 24 | 24 | 30 | 40 | 60 | 90 | 145 | 160 |
| Total power (kw) | 27 | 27 | 33.5 | 44 | 65 | 97 | 157 | 178 |
| Inlet/outlet(mm) | 25 | 25 | 32 | 32 | 48 | 50 | 58 | 65 |
| Weight (kg) | 300 | 350 | 400 | 500 | 800 | 1000 | 1200 | 1350 |
Dimension
(mm) | L | 1100 | 1230 | 1250 | 1500 | 1650 | 1750 | 1900 | 2000 |
| W | 800 | 810 | 850 | 950 | 1000 | 1200 | 1250 | 1350 |
| H | 1250 | 1260 | 1300 | 1400 | 1600 | 1750 | 1950 | 2100 |
| Prod Model: |
LVP |
| Cleaness: |
Nas 6 Grade |
| Working Pressure: |
0.4MPa |
| Filters Precision: |
1 Micron |
| Water Content: |
80 Ppm |
| Voltage: |
Customerized |
| Folw Rate: |
10-300 L/Min |
HLA MECHANICAL EQUIPMENT Co., Ltd is a professional machinery manufacturer from China. Since the foundation of HLA, we have specialized in providing innovative oil purification and air drying solutions & services for demanding applications on a global scale. The scope of our products and services covers a wide range, including oil purifier, air compressor and relative testing equipment. HLA product lines ensure efficient performance of equipments, reduce ecological disposal problems and help our customers save money.
Depending on experienced engineers, completely technical supports, advanced design, strict quality inspection line, fast and outstanding after-services. We have been in devoting our efforts to design and build the most effective, durable, and user-friendly equipments on the market today.
HLA are widely applied in projects of power substation, steel structure, metallurgy, automotive, railway, marine, mine, aviation, medicine, chemicals, petroleum etc. Our policies of performance and protection cut maintenance costs, extend equipment life, keep equipment working at peak efficiency, prevent down time and meet today's ecological requirements.
