Prod Model: |
SAT7435N-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
LCM Od: |
76.9*64*4.6mm |
Resolution: |
320*240, Qvga |
Drive IC: |
Hx8238d |
Interface: |
24bit RGB Interface, 54pins |
Brightness: |
250nits, with 6PCS LED Backlight |
Operation Temperature: |
-20-70 Degree |
LCD Size: |
3.5inch |
Usage: |
Small-sized LCM |
Digital LCD Module Type: |
Counting Module |
Touch Screen Type: |
Resistive |
Type: |
Color |
Response Time: |
30ms |
Viewing Angle: |
TN+FILM |
Display Technology: |
TFT |
DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
LCD Drive Mode: |
Multiplex Drive LCD Module |
Customized: |
Customized |
Product Description

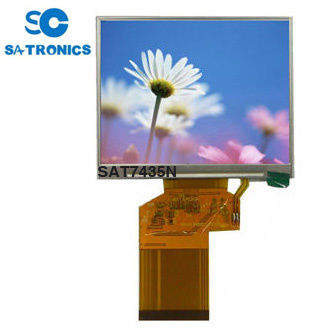

TFT LCD Module
Size:3.5Inch
Resolution:320*240
Model NO:SAT7435N-1
LCM OD: 76.9*64*4.6mm
A.A: 70.08*52.56
Driver IC:HX8238D
Interface:RGB 24Bit
FPC Pins:54pins
Brightness:250nits,with 6pcs LED backlight.
With TP:Option
Operation temperature:-20-70
Sotrage temperature:-30-80
Satronics Co., Limited was established in year of 2002. We are located in Shenzhen city of China and we have HongKong branch to offer logistics and financial service.
Satronics specialize in design, develop and manufacture of high quality LCD panel, LCD module (LCM) and TFT Display more than 10years.
We can offer TN,STN,COB,COG LCD Module ,TFT and OLED Displays including all the other subsidiary compenents related to displays.
We have more than 300 standard models of monochrome COB LCD module and TFT LCD size from 1.77inch to 8inch.
our products are widely used in automotive electronics, military applications and medical instruments,home applications and communication devices.. Each unit bears SGS, and RoHS marks.
Specifications as below:
Satronics Co., Limited was established in year of 2002. We are located in Shenzhen city of China and we have HongKong branch to offer logistics and financial service.
Satronics specialize in design, develop and manufacture of high quality LCD panel, LCD module (LCM) and TFT Display more than 10years.
We can offer TN, STN, COB, COG LCD Module, TFT and OLED Displays including all the other subsidiary compenents related to displays.
We have more than 300 standard models of monochrome COB LCD module and TFT LCD size from 1.77inch to 8inch.
Our products are widely used in automotive electronics, military applications and medical instruments, home applications and communication devices...Each unit bears SGS, and RoHS marks.
We provide expert technical support by a team of highly-qualified electronic engineers. We are committed to providing innovative flat panel display designs and products to meet the ever-growing needs of the global marketplace with an elite staff of high qualified Research and Development engineers. Therefore, we can guarantee to meet your display specifications, and provide you with the most appropriate and cost effective solution for your individual requirements.
We have provided customers with the most competitive and satisfying products in the market. We have won high reputation from the customers for her advanced facilities, mature technology, comprehensive quality management, and highly-effective customer service.
Now our company has became the qualified supplier of many well-known companies all over the world.
Looking forward to receive your enquiry and demonstrate our capability to you.!
