| Prod Model: |
AZ-500L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Ice Shape: |
Granule |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Application: |
Commercial |
Product Description

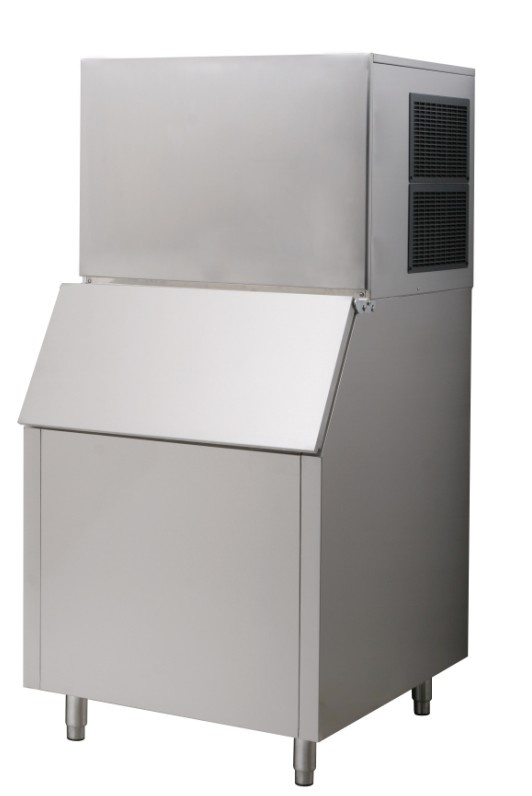

AZ-500L Icemaker Specification:
Model: AZ-500L
Rated power: 220-240V /50-60Hz/1 phase
Input Power: 2224W
Finish: Stainless steel
Ice type: Cube
Ice scoop: Yes
Body: Foaming body and door
Max. Ice Production: 500kg/24h
Max. Ice Storage: 180Kg
Refrigerant: R404A
Condenser Unit: Air-cooled
Net Weight: 88Kg (main machine), 48.5Kg (ice storage bin)
Gross Weight: 98Kg (main machine), 62Kg (ice storage bin)
Product Dimensions:
Main machine: (W/D/H) 762mm/610mm/677mm
Ice storage bin: (W/D/H) 762mm/810mm/910mm
Packing Dimensions:
Main machine: (W/D/H) 875mm/720mm/812mm
Ice storage bin: (W/D/H) 816mm/900mm/1070mm
Ice making Type: Water-Flow
Control Type: Electronic control
Load Qty. In Container of 20'/40'/40HQ Main machine: 50/100/150 PCS
Load Qty. In Container of 20'/40'/40HQ Ice storage bin: 28/56/78 PCS
Advantage:
*Water-saving, high efficiency
*Excellent insulation, store ice long time. No condensation and save energy
*Construction with the structure tight made the space use improved greatly
*Exactly automatic ice making and easy to use
*Unique drain water fitting to assure the sanitation of the ice-making
*Self-diagnosis function
*The thickness of ice is adjustable
*Clear ice
*Luxury appearance
We built in 1999, we are one of largest exporter of ice maker in China, we can supply 30 types of ice makers ranging from 20kg to 500kg per day, we have CE, CB, UL, KTL, ETL etc and have exported to U. S. A, Canada, South Africa, Japan, Korea, Middle Eest and so on.
