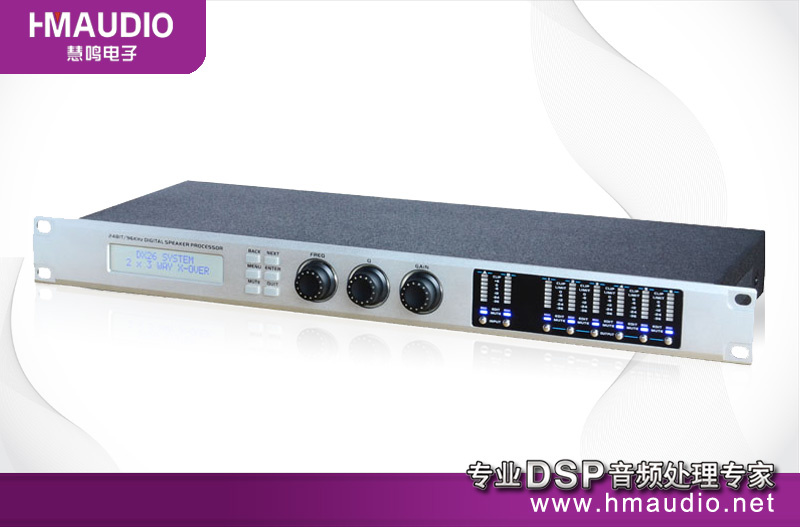

| Prod Model: |
DX-26 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| THD: |
<0.005% |
| Noise: |
<95dB |
Product Description
Features
*96kHz sampling rate, 24 bit AD/DA conversion. 32 bit DSP chip processor;
* With PC operating software, USB, RS232 port for real-time remote control;
* Use 4-way balanced inputs, 8 balanced outputs.
* The 'Next, Back'key may function unit (front or back), the system 'MENU' key can be call-out, the 'ENTER' key is used to confirm option, the 'QUIT' key is used to Esc-menu; The 'MUTE' key is used to control all channel mute function. The 'FREQ, Q, GAIN' key are used to adjust parameters all processor units
* Input processor part includes mute. Gain 6 band patametric EQ. Phase, delay & etc processor units
* Output processor section includes mute. Phase gain, delay, frequency, 6 parametric EQ limiter, sound chose, channel etc processor units
* Input & output channel parameters can be freely copied
|
Technical Parameter |
|
P/N |
DAP2040 |
DAP2060 |
|
Input/Output channel |
2Input/4Output |
2Input/6Output |
|
Each Input channel |
Mute |
√ |
|
Delay |
adj range0-1000ms |
|
Poalr |
In phase(+) & reversed phase( -) |
|
EQ |
6 Band PEQ (FREQ): 20Hz-20KHz, Total: 239 point Band wirth: 0.05oct-3oct, Step: 0.05oct Gain: ± 20dB Step: 0.1dB |
|
Output channel |
Mute |
√ |
|
MIX |
Each input channel can be selected to each output channel. |
|
Gain |
adj range: ± 12dB step: 0.1dB |
|
Delay |
Each input channel has delay control, adj range: 0-1000ms. |
|
Poalr |
In phase(+) & reversed phase( -) |
|
EQ |
Each output channel has 6 band EQ, 3 Modes: PEQ/Lo-shelf/Hi-shelf |
|
Frequency |
LPF, HPF, (PF Mode): Linkwitz-Riley/Bessel/Butterworth, (FREQ): 20Hz-20KHz, Total: 239 point (Slop): 12dB/oct, 18dB/oct, 24dB/oct, 48dB/oct |
|
Limier |
Gate Level: ± 20dBμ , Step: 0.05dBμ Start time: 03ms-100ms, < 1ms, Step: 0.1ms: > 1ms. Step: 1ms
Release time: Release time can be set as twice, 2/4/6/8/16/32times. |
|
port |
Input: XLR Output: XLR |
|
Parameter |
255MHz, 96KHz sampling freq, 24 bit AD/DA conversion. 32 bit DSP chip processor |
|
Display |
2X24 LCD , 8-LED Input/Output level, Mute & mode can be displayed |
|
Input impedance |
Balance 20 KΩ |
|
Output impedance |
Balance 100 Ω |
|
Mock |
> 70dB(1KHz) |
|
Input range |
≤ +15dBu |
|
Frequency |
20Hz-20KHz(0~-0.5dB) |
|
S/N |
> 105dB |
|
THD |
< 0.01% (OUTPUT=0dBu/1KHz) |
|
Separation |
> 80dB(1KHz) |
|
PC |
Back has 1 port R232. |
|
RMS |
≤ 30W |
|
Power |
AC 200V/240V 50Hz/60Hz |
|
Weight |
NET Weight |
2.7KG |
|
TotalWeight |
3.3KG |
|
Dimensions (W*H*D) |
Unit Dimensions |
480*180*48MM |
|
Pack Dimensions |
500*253*103MM |
