| Prod Model: |
MG4002, MG4004, MG4006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
| Noise: |
>105dB |
Product Description

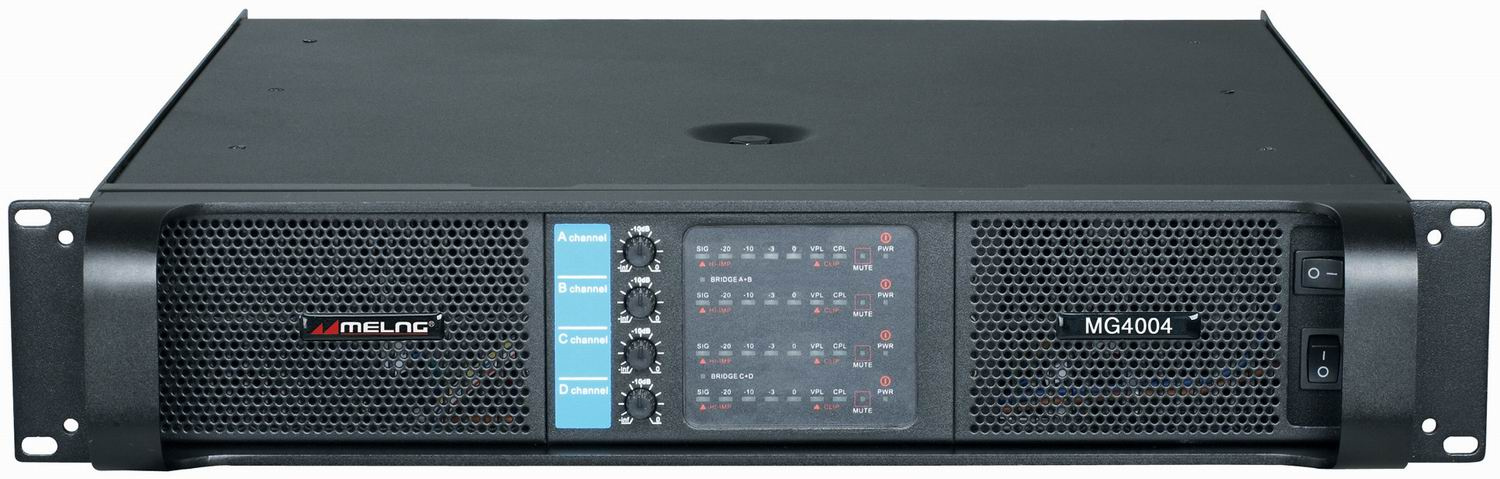

Professional Power Amplifier
MG 4-way power amplifier
With built-in electronic crossover, phase adjust, dynamic compressor circuit.
|
MODEL |
MG4002 |
MG4004 |
MG4006 |
|
|
|
POWER |
200W/8Ω (4-WAY) |
400W/8Ω (4-WAY) |
600W/8Ω (4-WAY) |
|
|
350W+200W+200W(3-WAY) |
650W+400W+400W(3-WAY) |
900W+600W+600W(3-WAY) |
|
|
350W+350W(2WAY) |
650W+650W(2WAY) |
900W+900W(2WAY) |
|
THD |
< 0.05% |
< 0.05% |
< 0.05% |
|
S/N Ratio |
-100db |
-100db |
-100db |
|
Damping Factor |
> 200 |
> 200 |
> 200 |
|
Frequency Response |
20HZ-20KHZ, +0/-1db |
20HZ-20KHZ, +0/-1db |
20HZ-20KHZ, +0/-1db |
|
Input Sensitivity |
1.22V |
1.22V |
1.22V |
|
Input Impedance |
10KΩ Unbalanced, 20KΩ balanced |
10KΩ Unbalanced, 20KΩ balanced |
10KΩ unbalanced, 20KΩ balanced |
|
Amplifier Protection |
Short circuit, over load, overvoltage, overheat |
Short circuit, over load, overvoltage, overheat |
Short circuit, over load, overvoltage, overheat |
|
Circuit Type/Class |
2-CLASS H |
2-CLASS H |
2-CLASS H |
|
Power Requriements |
AC220V(± 10%)50-60hz |
AC220V(± 10%)50-60hz |
AC220V(± 10%)50-60hz |
|
Height |
2U |
2U |
2U |
|
Unit Dimension(W*D*H mm) |
485*500*90 |
485*500*90 |
485*500*90 |
|
N/W(KG) |
24 |
26 |
29 |
Enping S-paul Audio Factory specializes in producing amplifiers, sound-boxes, tune-registers and other facilities of audio. We are located in the famed city (Enping) next to the Pearl River, and very close to Guangzhou, Hk, Macao and the 325 Nation Highway. The traffic is very convenient.
We own advanced technology, first-rated producing facilities and reliant quality guarantee. During the recent years, we invented a loads of new audio products according to the trends of market, which are with high technology and hot sold. Our products are created by special technology. From the raw materials to the made ones, each links are through strict quality inspection to ensure the pretty figures, outstanding performance, and reasonable price of products. Our brands are always dominant and big sold wherever home and abroad and earned the high praises among the consumers.
Our Ideal is " Perfect products, reasonable prices, wonderful service" Welcome all the clients to enter business with us wherever home and abroad.
