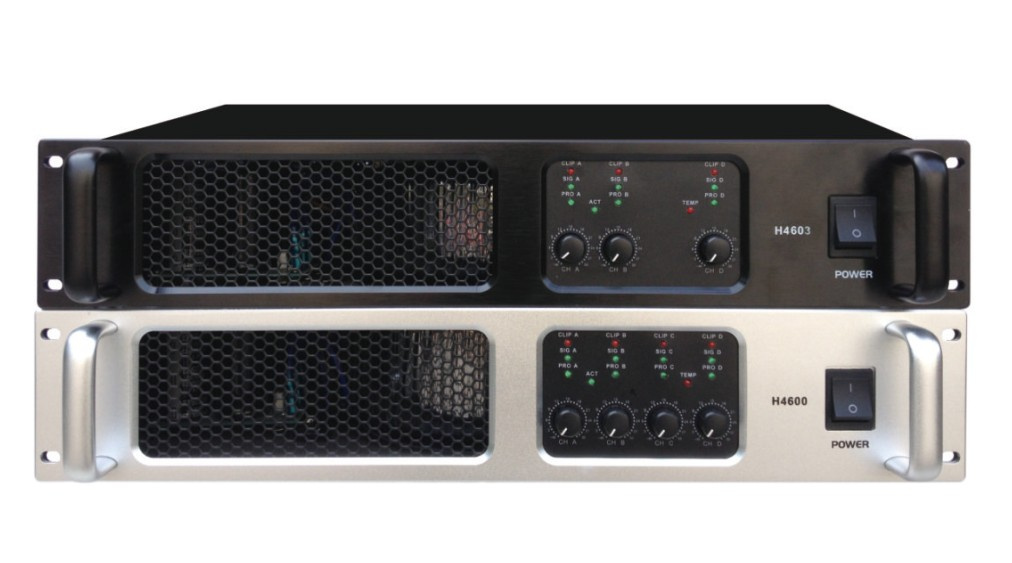

| Prod Model: |
H4600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Power: |
4*600W |
| Height: |
2u |
| Channel: |
4 Channel |
| Input Sensitivity: |
32db |
| Voltage Gain: |
0.775V/0dBm |
| Certificate: |
CE |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Usage: |
Concerts |
| Voltage: |
AC100V~220V |
| Conductive Mode: |
H |
Product Description
Characteristics
S/N ratio more than 110dB or even hight Complete 2-channel, 2U amplifier series
Hight damping factor over 1500 Maximum output power up to 1400W P/CH 8Ω
Hight slew rate as high as 10v/us Refined SMD production technology
1ohm-parallel,low inpedance loading
All-round circuit soft protection without an internal circuit break
| Model | H4400 | H4600 | H28214 | H41400 | H2406 | H2408 | H2614 |
| Channel | 4 Channel | 4 Channel | 4 Channel | 4 Channel | 3 Channel | 3 Channel | 3 Channel |
| Stereo | 400WX4 | 600WX4 | 800WX2+1400WX2 | 1400X4 | 400WX2+600W | 400WX2+800W | 600WX2+1400W |
| Weight | 17KG | 19KG | 27KG | 29KG | 16KG | 17KG | 18KG |
| Max Output Voltage | 100V | 122V | 141V | 187V | 122V | 100V | 122V |
| Input Sensitivity | 1.41V | 1.73V | 2.00V | 2.65V | 1.73V | 1.41V | 1.73V |
| Voltage Gain | X73 | X89 | X103 | X137 | X89 | X73 | X89 |
Guangzhou Calm Audio Electronic Co., Ltd Is Devote Ourselves to Researching, Manufacturing, Marketing and Serving of Professional Electro-Acoustic Products Since From 2007. Now, All Our Products Are Past The 3c, CE Certifications. We Have Been Self-Developed Patent, The Electronic and Electro-Acoustic Products Are Recognized by The Market, and Provide OEM and ODM Services to Many Domestic and Foreign Audio Brands. The Good Quality Products Are Depend on The Professional and Scientific Management. Ultimately, There Is a Professional R&D Team in Our Company, Consistent Adherence to Rigorous Design Style and Exquisite Craftsmanship, All The Products Are Through The Complete QC Procedures Just Wanna Give The First-Class Products and Services for Domestic and Foreign Customers.
Our Company'S Factory Is Located in Guangzhou. At Present, Our Products Are Not Only Popular in China'S Major Areas, But Also Europe, Asia. Australia. Calm Audio Electronic Co., Ltd Is Attaches Great Importance to Product Quality and Market Demands. We Will Continue to Deliver The Most Advanced Eletro-Acoustic Technology Information to Our Customers and Manufacture The More Welcoming Audio Products.
Calm Audio'S Brands Include Calm, Djg, AAA, 92, Queen and F• Audio. Some of Them Have Been Widely Used in Large Stadiums, Stage, Venues, Conference Rooms, Hotels and Other Large-Scale Sound Reinforcement System, All These Are Loved by The Users.
Our Company'S Purpose Is to Building a Century Enterprise. Virtue, Responsibility, Pursuit, Honest, Enterprising and Innovation Are Throughout The Company'S Operating Management.
