Aquatic Fishery/Transparent Ice Sculpture Block Ice Machine

Aquatic Fishery/Transparent Ice Sculpture Block Ice Machine
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: FIB-50K
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: for Refrigerate
Certification: CCC
Cooling Method: Direct Cooling
Compressor: Bitzer/Bock/Copeland
Condensation Methods: Air Cooling/ Water Cooling/Evaporative Cooling
Ice Shape: Ice Block
Condition: New

Product Description

Focusun Block ice Machine

Focusun utilizes both direct refrigeration technology and brine refrigeration technology to meet your different requirements. The standard weight & size of block ice Focusun produces are listed in the form below. Focusun can also customize the size of the block ice to meet your needs and requirements.

Weight
(kg/block)
Dimension
(L*W*H mm)
5120×100×460
10155×100×700
15185×125×700
20245×125×700
25315×125×700
50480×160×700

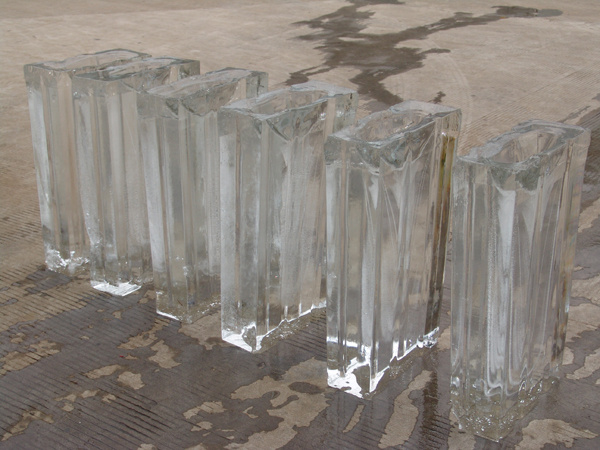

Block ice has a large dimension but has small contact area so it does not melt easily. It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels. The small pieces of block ice can be also be used for various purposes. There will be a little loss because the ice will thaw partly when crushed. Focusun offers both transparent and milky white ice for your preference.
As shown above, first fully feed the ice bucket with water, press the button and start the refrigeration system. The agitator makes the water flow cyclically which will have a heat transfer with the refrigerant inside the Ti evaporative coils and then the temperature is lowered. Then the low temperature brine water has a heat transfer with the water inside the ice bucket which will be lowered to 0ºC below. After a certain ice making time, the water in the ice bucket all becomes ice when the ice thawing system is beginning to run. The crane will hoist a row of buckets down into the ice thaw tank full of running warm water. So the bucket temperature will be rising when the ice surface thaws and gets separated from ice bucket. Then ice buckets will be hoisted to the ice can dump. Fix buckets and then rotate dump upside down and ice is dropped down. Put up the buckets and refill water to a certain level using water feeding gadget, then the crane will hoist the buckets back to the brine water tank and hoist another row of ice buckets in the brine water tank. Thaw ice, drop ice and add water cyclically.

Equipment features
Ti pipe is used as evaporative coil to improve the heat transfer effect, and its stainlessness, anti-corrosion can guarantee the long service time.
The stainless PE parts between the brine and the fresh water is proper to mode and weld. And it works very well in a cold condition.
the particular design of ice thawing tank and ice dumping unit bring easier operation.
The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
Modular and integrated design ensures it is easy to ship, move and install on the spot.
Every brine refrigeration block ice machine can be customized according to our clients' requirements.
The brine refrigeration block ice machine can be containerized: 6 T/day ice production in a 20' container and 12.5T/day ice production in a 40' container.


Brine refrigeration block ice machine technical parameter
ModelCapacityRefrigerantElectricity consumptionInstallment powerOperating weightDimension
--Ton/D--KwKwKgmm
FIB-50S5R22/R404A21.1425UnitL1400×W1000×H1250
EvaporatorL4800×W1000×H2250
Cooling tower1380×H2170
FIB-100S10R22/R404A40.6950Unit:1680L1800×W1000×H1450
Evaporator:
2860×2
L4800×W1000×H2250
Cooling tower:
670
2000×H2410
FIB-150S15R22/R404A60.6075Unit:2160L2000×W1200×H1600
Evaporator:
2860×3
L4800×W1000×H2250
Cooling tower:
1120
2175×H2565
FIB-200S20R22/R404A88.50105Unit:2896L2400×W1600×H1800
Evaporator:
2860×4
L4800×W1000×H2250
Cooling tower:
1300
2650×H2645
FIB-250S25R22/R404A98.80120Unit:3260L3200×W1800×H2200
Evaporator:
2860×5
L4800×W1000×H2250
Cooling tower:
1630
3050×H2780
FIB-300S30R22/R404A120.30150Unit:3500L3000×W2000×H2200
Evaporator:
2860×6
L4800×W1000×H2250
Cooling tower:
2730
3300×H2785
Standard condition: Dry bulb temperature is 33 ºC and water inlet temperature is 20ºC.


Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.

As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.

Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.

Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.

We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
