Compact size
Resistive touch screen
Industrial android main board
Deep improved android system

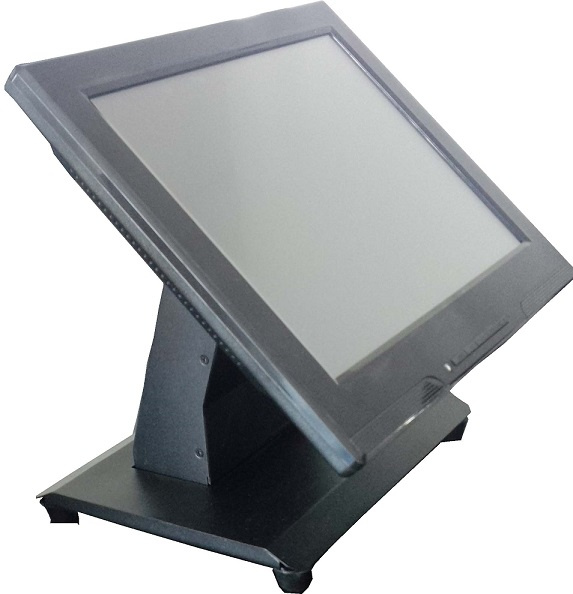

Preinstalled APKTS1200 touch screen ECR, built in Dual core ARM-CORTEX A7 CPU. 4G EMMC flash, 1G DDR3 RAM.
Android 4.22 OS. TS1512 APK preinstalled.
12.1" TFT LCD with 800x600. 4wire resistance touch screen.
3*USB host for USB printer, USB scanner, or USB disk
2*RS232 for RS232 device, such as RS232 printer or scale.
1*RJ11 for cash drawer
1*RJ45 for Ethernet
Built-in WIFI.
Built-in Customer display support(optional)
Built-in battery for RTC
TS1200 Hardware specifications
| Display |
| Clerk | 800X600 12.1"TFT LCD |
| Rear | LED8 |
| Cash Drawer |
| RJ11 | Direct driving. 12VDC |
| Main board |
| CPU | ARM cortex-A7 dual core |
| RTC | DS1302 |
| Flash Memory | 4G EMMC |
| RAM | 1G DDR3 |
| Interface |
| Interface | 2RS232,3USB,1ETHENET |
| Capability | PC, scanner, scale, kitchen printer |
| WIFI | 802.11b/g/n Support |
| Power supply |
| Power supply | DC12V/4A adaptor |
| Rate | AC85~245,50~60HZ |
| Power | Approx. 36W |
| Temperature and humidity |
| Operation | 0-50 ºC |
| Storage | -40~60ºC |
| Humidity | 20-90% (Relative) |
| Package |
| package |
|
| Shock | 1m drop on concrete surface |
| MTBF and standard |
| MTBF | MTBF>5000hours |
| EMC | Custom |
TS1200 APK secifications
| Capability |
| Clerk | 99 |
| Department | 99 |
| PLU | 99999 |
| Table no | No limit |
| VIP/Debit customer | No limit |
| Transaction log | No limit |
| Amount decimals | 0/2/3 |
| Quantity decimals | 0/1/2/3 |
| % | 3 item/subtotal |
| (+) | 1 item/subtotal |
| (-) | 1 item/subtotal |
| Received on account | 1 |
| Paid out | 1 |
| Kitchen messages | No limit |
| Payments | 9 |
| TAX | 5 percentage tax |
| VAT | 6 VATs |
| Registration |
| Receipt | Can print QR barcode. (sales item included) |
| PLU sale | support |
| VIP/Debit customer sale | Support |
| Error correct | Support |
| Return merchandise | support |
| Table no operation | support |
| payments | Cash or multiple media |
| Settings |
| All kinds of settings | All necessary settings |
| Label settings | Support for driving label(barcode) printer |
| Application | Food/Fast food/Retail/drinking |
| Soft keypad | Can be redefine |
| UI | Dept, PLU show order, color can be adjusted |
| Reports |
| Full terminal report | Support |
| Traditional report | Support |
| Prompter report | Summary and details report |
| Bill review | Support |
| Bill modify | Support |
| Stock |
| Stock report | Support |
| Safe stock report | Support |
| Stock in/out/adjust | Support |
| Stock movement report | Support |
| VIP/debit customer |
| Debit/deposit | Support |
| Purchase list report | Support |
| Accounts movement rpt | Support |
| Sales details report | Support |
| Bill printer |
| USB58/80 | Support (store logo print) |
| RS232 58/80 | Support |
| Ethernet 80 | Support |
| Ticket mode | Support |
| Auto copy receipt | Support |
| Kitchen printer |
| RS232 58/80 | Support |
| Ethernet 80 | Support |
| Scale |
| RS232 type | Support |
| External customer display |
| LED8 | Support |
| VFD220 | Support |
| Work group |
| LAN | WIFI or Ethernet |
| Download setting(Client) | Support |
| Send sales data(Client) | Support |
| Share kitchen printer | Support |
| Accumulate all for report | Support |
| Language support |
| CN/EN/BIG5 | Default support |
| Other language | Support. |
APK can be customered design!
