Aluminum Frame Infrared Touch Screen for Computer (WVT-IRTS-24S)

Name: Aluminum Frame Infrared Touch Screen for Computer (WVT-IRTS-24S)
Brand: ec-portal.com
SKU: 728391135
Availability: InStock
Rating: 4.8 (76 reviews)

Price:	US $ 500/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	WVT-IRTS-24S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution:	4096*4096
Touch Medium:	Finger, Gloved Finger, Rubber Soft Pen etc.
Linearity:	1mm
Touch Response Time:	7ms - 20ms
Power Supply:	USB Powered
Touch Activation Force:	No Pressure Required
Supported OS:	Windows 7, Vista, XP, Linux, Mac.
Product Name:	Aluminum Frame Infrared Touch Screen for Computer
Optional Accessories:	Glass/Tempered Glass/Ar Glass.USB Extended Line
Warranty:	1 Year Parts and Labor

Product Description

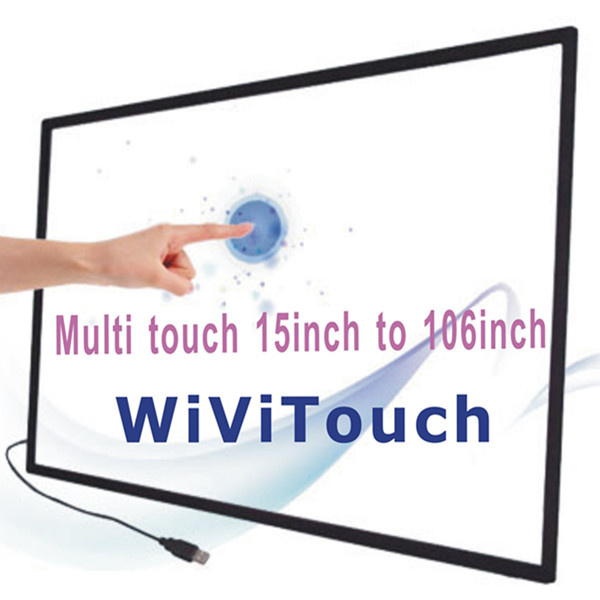

Aluminum frame infrared touch screen for computer (WVT-IRTS-24S)

Introduction:

WiViTouch is specialized in producing resisitve touch screen, touch panel. Surface Acoustic Wave(SAW) touch screen, Multi-touch Infrared touch screen/IR Touch Panel frame, LCD Touch Monitor, Kiosk, Interactive touch foil, LCD touch Panel PC/ Computer/ bezel Monitor, Touch Tablet PC, Touch advertisement monitor, Touch advertising display, Touch Payment Kiosk, touch solutions, Optical touch screen and Capacitive touch screen, Any size of touch panel we can customized for you. Just let us know the requirement. For Multi-touch IR Panel, we can offer Dual-touch(2 points), 6 points, 8 points, 10 points, 16 points and 32 points, No ghost point. Etc.

Advantages:
1. Support zoom in/out, display rotation
2. Withstands severe environments
3. Stable, no-drift calibration performance
4. Vandaproof and abrasion-resistant screens, ideal for rugged applications
5. Parallax-free performance for LCD displays
6. Sealable against contaminants
7. Operable in various light conditions, indoor and outdoor

Aluminum frame infrared touch screen for computer
Applications:
1. Point-of-information kiosks, Desktop touch monitor
2. Electronic catalogs, Ticket machine
3. Gaming, POS, ATM, lottery, and amusement
4. Industrial control rooms
5. Computer-based training
6. In-vehicles and transportation
7. Medical instrument

If needed to work with Linux, please kindly inform WiViTouch for this, thanks in advance: )

Size
Available Sizes:	15"-300"
Available Sizes:	Custom sizes available upon request
Performance
points	2/4/6/10/12/16/32 points
Touch Mode	Multi-touch
Resolution(Interpolation)	4096*4096
Linearity	1mm
Response Speed	7ms - 20ms
Mechanical
Input Method	Finger or gloved hand (rubber, cloth or leather)
Touch Times	Unlimited
Touch Activation Force	No minimum touch activation force is required
Minimum Touch Object	2.5mm X2.5mm
Optical
Glass:	Without glass
Light Transmission	100%
Gloss	Antiglare surface(curved or flat): 95 ± 15glossunitsor65 ± 15gloss units
Environmental
Temperature	Operating Range: -20° C~ 70° C;
	Storage Range: -40° C ~85° C
Relative Humidity	Operating Range: 0%~90%RH (no dew falls)
	StorageRange: 0%to95% RH(no dew falls)
Altitude	Up to3, 000m
Ambient Light	Directsunlight90° to± 30° tothe display surface Touch detection operational
Ambient Light	Direct sunlight all angles to display surface Free of false touch reports
Electrical
Operation Voltage	Typical +DC 5V, +4.75Vto+5.25V
Power Supply	Size under 52" (include 52" )USB or PS/2Interface, power ripplemax. 200mVrms
Power Supply	Size above 52" (52" not included): external AC-DC power adaptor
Interface	Full Duplex USB2.0(Full Speed)Plug and play compatible
Interface	SerialRS-232. Baud Rate: 9600, 8DataBits, 1Stop Bit, No Parity
Current	Typical 150MA@+5VDC; 350mA, maximum
Power	< 1.5W, operating current< 300mA
Electrostatic Protection	15kVair/8kVcontactdischarges (EN61000-4-2, 1995: Level 4)
Controller	Integration inside touch panel
Agency Approvals	CE, FCC, Rohs
Operating System
Operating System	windows7. TUIO Protocol.

->> News Release
Welcome to visit WiViTouch Exhibition in Sao Paulo, Brazil"Imigrantes Exhibition Center"
In 2013. September 8-10

At booth#1V25 at China Sourcing Fair: Hardware & Building Materials.

Shenzhen WIVITouch Technology Limited officed in shenzhen China.

NEW PRODUCTS: 32touches, 12touches, 10touches, 6touches, 4touches multi touch screen frame.

HOT PRODUCTS:

Resistive touch screen panel: 2.0'' to 23''

SAW touch screen panel: 7'' to 47''

Infrared touch screen panel: 15'' to 167''

Capacitive touch screen panel: 7'' to 22''

Interactive touch foil film windows: 30'' to 180''

Openframe touch monitor: 12'' to 42''

Touch monitor: 15'' to 65''

ALL IN ONE TOUCH PC: 18.5'' to 65''

Controller: USB/ RS232.

Special Touch Products:

Waterproof touch screen panel: 15'' to 65''

Tempered touch screen panel: 8.4'' to 80''

Dustproof touch screen panel: 8.4'' to 80''

Anti-glare Surface Capacitive Touch: 7'' to 22''

Support ELO/3M touch screen panel: 7'' to 47''

Professiona. Honest. High performance.

At least 1year warranty, special 3-5years warranty quality.

Value: Touch Me. Touch The Future!

WiViTouch is an Integrating development and production together touch electronic hi-tech company. Specializes in manufacturing and distributing all types of touch screen, touch monitor, kiosks, PCS and digital signage across all industries and have grown 30% year on year. Now our products have been widely used in games, finance, communication, electricity, transportation, hospitals, estates, travel and government lines, stations, 4S shops, museums, exhibitions, libraries, hotels and entrainment KTV. Our markets cover Asia, North America, Africa, the Middle East, Europe, Central and South America and Oceania.

Our firm was established in 2003 developed from a small factory into a modernized high-tech enterprise with 300 employees including 30 highly qualified and well trained engineers. Due to our 2, 000 square meters factory and a monthly production capacity of 10, 000 pieces, we can meet your demands. Our tried and tested product designs have been perfected over 7 years so that you can now buy them off the shelf ready to be customized. Each is made to meet ISO9001 Quality Management System standards.

Our philosophy is to produce a range of products that meet the extremely wide need for touch screen self service across all industry sectors. For us it's not only about projecting advertising messages out to the world; It's about providing you and your customers with an interactive and convenient service that in effect enhances your business. We will work closely with you to create the right solution bespoke to your business needs, giving you a return on investment that is both quick and substantial.

Why choose our touch screens and touch products?

Built to be customised to your requirements. Give professional service for your inquiry

Aftersale service-At least one year warranty for every touch products.

Perfected product range which meets 3 economies of scale:

Quality - ISO 9001 and CE approved - We are fully accredited to the required standard of Quality Management Systems and work within these guidelines.

Price - We buy large stocks of the best materials and employ automated manufacturing techniques.

Reliability - These units are built to operate within the most demanding environments for long periods of time.
