Advanced light fuel oil purifier, seperate large amount of water rapidly and effectively, requires no heating
Specifications

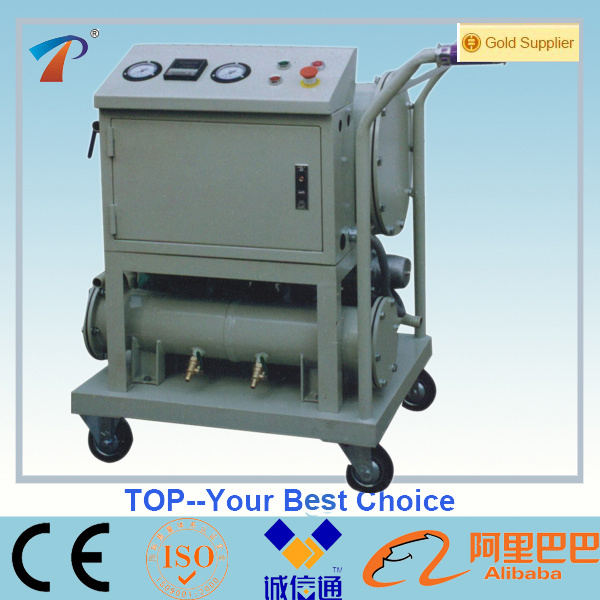

Advanced Light Fuel Oil Purifier
1. No heating, less operation cost
2. Filtering water, gas and other residues
Application:
Series TYB integrates Coalescer and Separator Filter elements, high efficiency demulsification and dehydrator into one body.
This machine, which can remove large of water without heating, creates the fastest dehydration speed in domestic at present.
This machine can quickly separate water from the oil, which even contains half water, to attain cleanness of NAS six grades,
Convenient using with the go-cart model designed.
This machine is specially for purify fuel oil including diesel oil, gasoline as well as light lubricating oil.
Features:
1 TYB series purifier adopt special oil water separator which requires no heating offering more than 20 times dewatering efficiency over other types of purifiers.
2 As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.
3 Easy-to-operate, water can be discharged online automatically without the presence of duty operators.
4 Low operation cost, 20%-40% lower than vacuum purifier, centrifugal purifier and filter press
Technical Parameter
Name
|
Unit |
TYB-10 |
TYB-20 |
TYB-30 |
TYB-50 |
TYB-100 |
TYB-200 |
TYB-300 |
Flow rate |
L/h |
600 |
1200 |
1800 |
3000 |
6000 |
12000 |
18000 |
Working Pressure |
Mpa |
≤0.3 |
Working Noise |
dB(A) |
≤65 |
Power |
kW |
0.75 |
0.75 |
2.2 |
2.2 |
3 |
4 |
5 |
Net Weight |
kg |
80 |
90 |
105 |
135 |
150 |
185 |
250 |
Overall
Dimensions |
L |
mm |
700 |
700 |
700 |
850 |
800 |
1000 |
1200 |
W |
mm |
570 |
570 |
600 |
650 |
650 |
700 |
900 |
H |
mm |
550 |
600 |
650 |
750 |
800 |
850 |
1100 |
Guarantee value
Moisture content |
≤100 PPM |
Impurities size |
≤1 micron |
Cleanness |
Grade 6 (NAS 1638) |
Chongqing TOP Oil Purifier Manufacture Co, . Ltd is a corporation dedicated to research and manufacture oil purification machines and test equipment. Our Company has strong capability in research and manufacture, large scale of specialized production, perfect market system, good after-sale service, and thus has achieved good reputation and perfect market image in increasingly fierce market competition.
Our company mainly manufactures and sells below products: Insulting Oil Purifier, Turbine Oil Purification machine, Hydraulic Oil Purifier, Lubricating oil filtration machine, Transformer Oil filtering machine, fuel oil restoration, Steam-Turbine Oil reconditioner, Dielectric fluid regeneration system, Circuit-Breaker Oil recovering system, Compressor Oil recovering machine, Gear Oil renewal machine, Coolant Oil treatment, Quenching Oil reclaiming machine, Oil and Water Separator, Steel-Rolling Oil regeneration equipment, Waste automobile Oil Recycling equipment, petroleum machine and test equipment, etc.
TOP oil purifiers have been widely used in electricity, petrochemical, ship manufacturing, steel construction, bridge, automobile, railways fields and so on, which has been playing an important role in decreasing consumption and environmental pollution for customers.
Since established, taking the mission of "survival based on good quality and development based on technology innovation", TOP has introduced advanced vacuum oil filtering technology from foreign countries and constantly researched and produced oil purification devices to meet the market requirements at home and abroad.
"There is no best, only better. " TOP will make continuous efforts as always to provide better purification equipment for you.
