Audio Munson Works Guangzhou >> Active Loudspeakers, PRO Audio, Line Array Speakers/Ridge

Active Loudspeakers, PRO Audio, Line Array Speakers/Ridge

Active Loudspeakers, PRO Audio, Line Array Speakers/Ridge
Price: Negotiable
Trade Terms: EX Works
Min Order: 2/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: Ridge Array
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CE
Application: Commercial

Product Description

Munson Audio Product Ranges: Professional Audio Equipments, Loudspeakers, Subwoofers, Coaxial Speakers, Line Arrays Systems (passive and active), Power Amplifiers (analogue, switching power, digital), , Active Touring/Mobile Sound Systems, DSP Management, DJ Equipments, Sound-related or music-related PRO Sound Products, etc.

Munson Audio also provides service for installation, acoustical building plan and supply full line products.
Audio Munson Works products have been shipping from Munson Factory to different countries and regions worldwide and Munson branded products have been serving the people in different nations or races in North and South Hemisphere.

Active line array speaker, Passive and Active version is available!

When you look at Himalayas from the porthole of aircraft in the sky, you don't see any particularities. However, when you come close to it on the earth, you will feel that you are surrounded unconsciously and you have to look up at it. You would be surprised and shock-up by its height, by its massiveness, by its invisible and silent power. The same experience happens also to you when you see Munson Sound Ridge Array System.

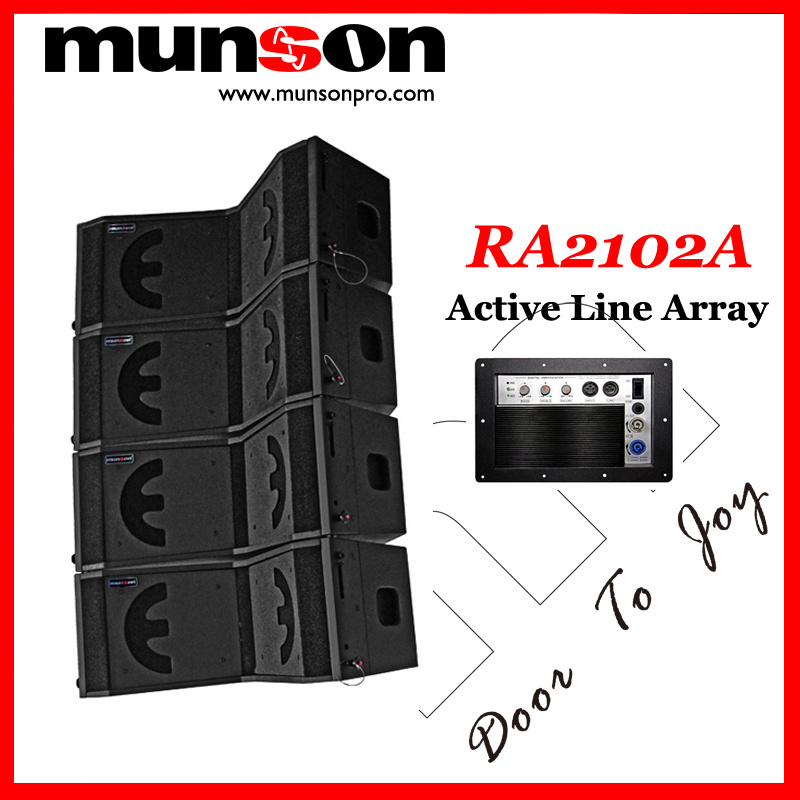

Munson Ridge Array System is combined by Model RA2102 and RA215B. 2 10" transducer are put symmetrically inside the enclosure of RA2102 and the axial of each 10" crossing at an angle of 60 degrees, which means 2 10" facing out to FOC making an angle at 120 degree. This special design enables the 2 10" join force to produce airflow and deliver the sound out, thus get a higher SPL for MID/hi. This is called Classical Butterfly design by some pros. A wave-guided chamber horn is vertically put in the middle of enclosure fed by 44mm. Dia. Driver. We preset mechanical splay angle from 0 degree to 6 degree with 1.5 degree increment. It provides a seamless array for entire system. All these piles up RA2102's feature of high sound pressure with clear vocal, even sound throw to far and near field.

The partner bass RA215B is a double high efficient 15" vented design. Playing together with the RA2102, you will absolutely feel that you are standing before Himalayas. Ridge Array is suitable for different kinds of medium-size events indoor or outdoor.
Speaker Type  RA2102A-2-way Powered full range array speaker
Configuration 2x10" +1x2" + Horn
Operating range 55Hz-20 KHz
Nominal Impedance
Power Capacity 500W (RMS)      1000W (Peak)
Sensitivity (1W/1M) 104dB
Max. SPL 132dB
Dispersions 72º   H × 10º   V
Horn Exit  (dia. ) 1" (25mm)
Voice coil  2" (44mm)
Crossover frequency 1.8KHz
Dimensions HWD(mm) 320× 820× 550
Shipping HWD(mm) 375× 940× 620 (0.22CBM)
Weight 35/39 (NW/GW kg)

Speaker Type  RA215BA  Powered  Bass
Configuration 2x15"
Operating range 55Hz-350Hz
Nominal Impedance
Power Capacity 800W (RMS)      1600W (Peak)
Sensitivity (1W/1M) 105dB
Max. SPL 132dB
Dimensions HWD(mm) 452× 830× 750
Shipping HWD(mm) 520× 890× 810 (0.37 CBM)
Weight 70/74 (NW/GW kg)
Munson Audio Product Ranges: Professional Audio Equipments, Loudspeakers, Subwoofers, Coaxial Speakers, Line Arrays Systems (passive and active), Power Amplifiers (analogue, switching power, digital), , Active Touring/Mobile Sound Systems, DSP Management, DJ Equipments, Sound-related or music-related PRO Sound Products, etc.

Munson Audio also provides service for installation, acoustical building plan and supply full line products.

The Legend: The God Apollo found that a man named Munson is very talented in music, acoustic and physics and he is virtuous. With a good intention to beautify the life of human being, Apollo endowed Munson with power he then takes full advantage of god power and finally makes himself an expert in music, sound and acoustic. Munson pumps his talent, time and energy in R&D for sound, audio products manufacturing. So far, Munson's audio products have been shipping from Munson Factory to different countries and regions worldwide and Munson branded products have been serving the people in different nations or races in North and South Hemisphere.

Munson infuses a philosophy of innovation, sharing and harmony into his factory. And the whole factory is filled with an atmosphere of being innovative, sharing success with each other, of working in a harmonious way. The factory is full of music, smile and pleasure.

Visiting and working in Munson is coming to the Door To Joy. You are cordially invited.
