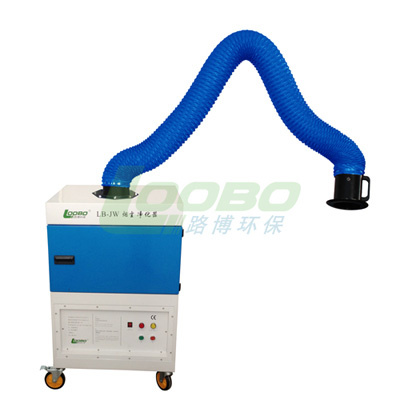

Active carbon fiber welding/sodering dust extractor and fume purifier for odorous gases(LB-JW)
Operating Principle:
Under the help of the fan device, the fume is sucked into inlet through multi-direction sucking hood. There is the flame arrester in the inlet, so the spark can be blocked here, and the left fume and dust is sucked into gravity separator. The bigger paticiles firstly descend into dust bag. The smaller particles is arrested in the surface of core filter. The cleaner gas then flow into clean room after being purified by core filter. In clean room, the clean gas is then further purified by active carbon. At last, the gas meets the required standards and enter into air or other required room.
Facility Characteristics
1) It is equipped with ABB turbo fan and motor imported from Germany and America, with overload prevention circle to avoid motor damage. It is of steady performance.
2) It is equipped with built-in centralized PLC controlling system. The operation panel is clear and simple, very easy to operate.
3) The filter core is imported from the large company in America with long useful life. It can arrest the 0.3μm particles.
4) It is equipped with the all-directions sucking arm of 360 degree rotating. It can suck the fume exactly from the source which make best of the fume collection efficiency, and insure the workers' health in the largest extent.
5) The clean air is exhausted uniformly and diffusely through the gridiron outlet, so it can minimize the noise.
6) It is attached with all-direction caster wheels, which makes the facility movable freely and easy to position.
7) The parts working condition are all stable and has long useful life, meantime easy to be replaced.
Technical Parameter
Model | Airflow M³/h | Power KW | Voltage V/Hz | Dimension (mm) | Noise (dbA) |
JW1200 | 1200 | 1.1 | 380/50 | 700*700*1110 | <72 |
JW1500 | 1500 | 1.5 | 380/50 | 700*700*1110 | <72 |
JW2400 | 2400 | 2.2 | 380/50 | 700*700*1110 | <75 |
LB-JZ Series Cartridge filter type welding Fume Purifier Parameters Table, Maunal cleaning type:
Model | Airflow (M3/h) | Voltage (V) | Power (kw) | Size L xWxH (mm) | Noise (dB) |
LB-JZ 1500 | 1500 | 380 | 1.5 | 650x550x1250 | ≤60 |
LB-JZ 2400 | 2400 | 380 | 2.2 | 650x550x1250 | ≤68 |
LB-JZ 3600 | 3600 | 380 | 3.0 | 650x550x1250 | ≤68 |
LB-JZ2400S | 2400 | 380 | 2.2 | 650x550x1250 | ≤69 |
LB-JZ3600S | 3600 | 380 | 3.0 | 650x550x1250 | ≤72 |
LB-JZD Series Welding Fume Purifier Parameters Table, Auto cleaning type:

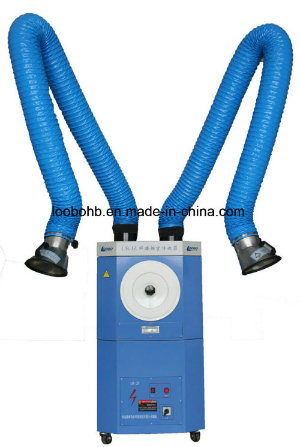

The " D " in models for the welding fume extractors represent Pulsing back-flushing automatic dust-removal system. " S " respresents the welding fume extractor has the double arms for two working stations.
The JZ(D) is basically same to the JZ. The main difference is when you connect air compressor to back-flush for cleaning cartridge, the back-flushing of JZ(D) can be auto-controlled by pulse valve; while the back-flushing of JZ is manual type. Compare with JZ series, JZ(D) is suitable for the heavy smoke workshop
Model | Airflow (M3/h) | Voltage (V) | Power (kw) | Size L xWxH (mm) | Noise (dB) |
LB-JZ 1500(D) | 1500 | 380 | 1.5 | 650x670x1250 | ≤72 |
LB-JZ 2400(D) | 2400 | 380 | 2.2 | 650x670x1250 | ≤72 |
LB-JZ 3600(D) | 3600 | 380 | 3.0 | 650x670x1250 | ≤75 |
LB-JZ2400S(D) | 2400 | 380 | 2.2 | 650x670x1250 | ≤75 |
LB-JZ3600S(D) | 3600 | 380 | 3.0 | 650x670x1250 | ≤75 |
Custom design and production is available.
Company Information:
Qingdao Loobo Environmental Protection Technology Co.,Ltd is one of the biggest enviromental protection products manufacturer, located in Qingdao city of china,specialized in alll kinds of portable fume extractor, downdraft benches(grinding dust removal worktable), central fume purification system, flexible suction arm,etc.
We have more than ten years export experience ,all of our products with the ISO9001 and CE certification, the quality can be guaranteed.
We have our own R&D department , have a variety of style range to meet any of your requirments and had established the economies of scale, so can dilivery fast and provide can beat your competitor's price.
