Quick Details
Type: Axial Flow Fan Electric
Current Type: AC
Mounting: Free Standing Blade
Material: metal impeller
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Jasonfan
Model Number: FJ16052MAB
Voltage: 230V Power: 50/60Hz
Air Volume: 189-224CFM
Speed: 2650-3000RPM
After-sales Service Provided: No overseas service provided
Motor Structure: external rotor motor
Safety: Impedance protected
Operation System: Maintain-free double high precision ball bearings.
Dielectric Withstand Voltage: AC 1800V at 0.5mA 50/60Hz
Allowable Ambient Temperature Range: -25~+75 degree
Power Supply Connection: UL3266-18 Lead wire
Insulation: F Class Protection
Grade: IP44
Unit weight: 1.1KG

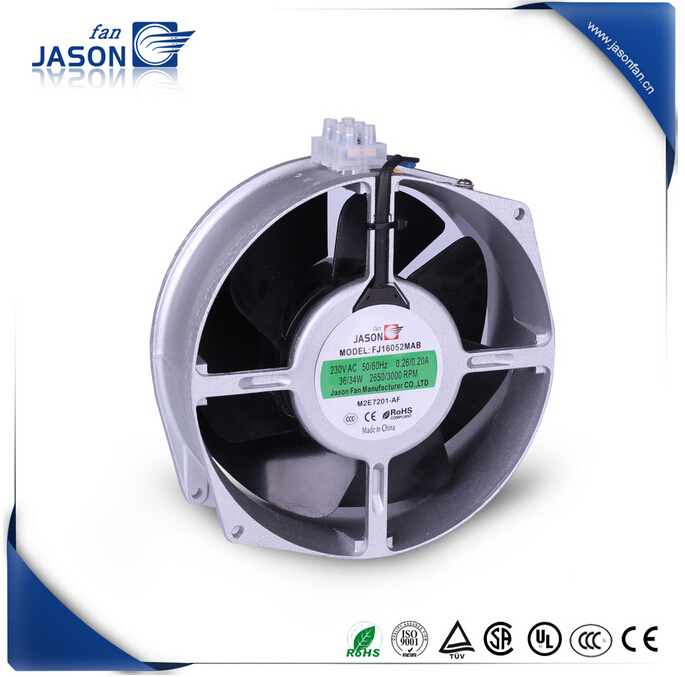

AC Compact Axial Fans CE Certificate Large air flow (FJ16052MAB)
Packaging & Delivery
Packaging Details: axial fan motor is with flexible wrapping and standard carton.
20pcs/Carton.
Weight:23kg/Carton.
Carton size:40.5*36.5*40CM.
Delivery Detail: 10days after deposit
Rotation dierction of blades: CCW seen from the front impellers.
Power Connection: PA-10 terminal connection
Unit weight: 1.1kg
We are specialized in developing and producing axial fan, centrifugal fan and air filter in different sizes with high quality in the cooling and ventilation field. All of our products are reliable and they can work in harsh circumstance efficiently. They are featured in High airflow, Low noise and Endure life.
Jason Fan takes charge in offering the newest techniques information and high-qualified design of products to all corporations. We took the spirit of this city and named our company Jason Fan.
Since our company came into existence, it develops a worldwide market with an unbelievable speed. Now clients from Australia, South Africa, Spain, Italy and other countries all designate to use our products. At the same time, we have set up a selling web-system which covered almost all main cities in China such as Beijing, Shanghai, Chengdu and so on.
Jason Fan has already passed the ISO9001: 2000 national authentication. And its products have received CSA, RoHS, CE, CCC certificates in and out of China. As our company develops quickly and steadily, up to March 2006, we have owned three factories, covered almost 4, 000 square meters. At present, our monthly capability is more than 200, 000 units fans, 89% of which are produced by ourselves, including mold design, mold pouring, SMT disposal and all other assembling.
Devoting to the development of fan and insisting in high quality is the spirit and principle of our company. We will try our best to satisfy the most rigorous requires of the customers and to make Jason Fan a worldwide welcomed brand.
