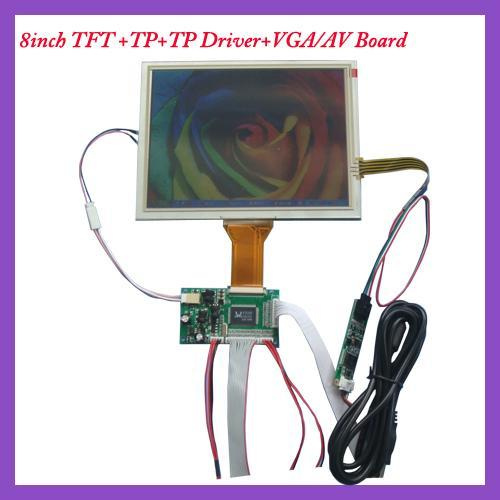

OEM 8" TFT LCD panel
8" TFT LCD screen with/without TP, 8 inch TFT LCM display for digital photo frame, TFT LCD manufacture
8" TFT LCD Moniter with high luminance Innolux (450CD/m2) EJ080NA-05B
Brand: Innolux
Screen size: 8"
Resolution: 800*600
Luminance: 250CD/m2
Contrast Ratio: 500: 1
Aspect Ratio: 4: 3
Operating Temperature: -20~70
Storage Temperature: -30~80
Pixel Pitch: 0.2025x0.2025mm (WxH)
Surface: Antiglar
Active Area: 162.0x121.5mm (WxH)
Bezel Area: 183x124.3 mm(WxH)
Outline Dimension: 193x141mm (WxH)
Outline Depth: 5.6mm (Typ. )
Touch Panel: Without TP
Response Time: 10/15(Typ. )(Tr/Td)
Viewing Angle: 70/70/50/70(Typ. )(CR>=10)(L/R/U/D)
Interface Type: FPC
Interface Pin Pitch: 0.5mm
Interface Pins: 50pins
Backlight: LED
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
