Dalian Good Display Co., Ltd. >> 8" TFT Large LCD Display Gd102m03-Gtiej080na

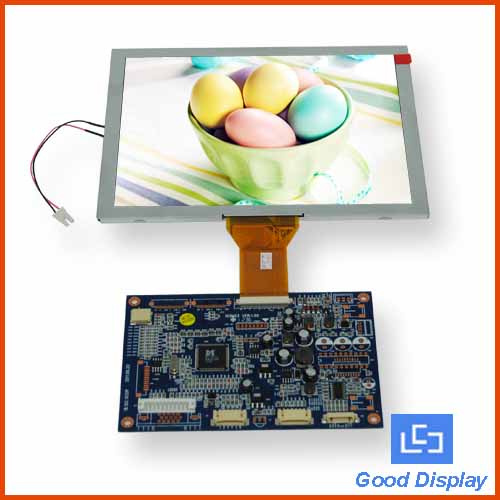

8" TFT Large LCD Display Gd102m03-Gtiej080na

8
Price: US $ 78.75/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: GD102M03-GTIEJ080NA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Technology: TFT
Customized: Customized
LCD Drive Mode: Others
Touch Screen Type: Can Choose
DOT-Matrix Graphic LCD Module Type: Others
Digital LCD Module Type: Others
Viewing Angle: 162.0(W) ×121.5(H)Mm
Response Time: 1.8s

Product Description

Specifications
Model name
GD102M03-GTIEJ080NA/XX-XX
Screen size
8 (diagonal)
Inch
Display ratio
4: 3
Resolution
800× (RGB)× 600
Backlight
LED
Brightness
250cd/m2
LED life time
30000(Typ. )hr
View angle
50/70/70/70 (U/D/L/R)°
Input/output interface
Video and S-video (Option)
D-Sub 15 pin female for VGA
USB (A Type) or RS-232 (DB9 Female) for Touch Screen Driver (Option)
Display dimension
183.0(W)× 141.0(H)× 5.6(D)mm
TFT-LCD Active area
162.0(W) × 121.5(H)mm
A/D board dimension
128.8(W)× 85.4(H)× 7.8(D)mm
Operation voltage
DC12.0(Typ. ) (Min. 9.0, Max. 15.0)V
Input current
DC320± 30 (without audio amplifier) DC540± 30 (with audio amplifier)mA
Power consumption
3.84W
Start time
2.5s
Touch Screen Controller
4-wire Resistive Driver USB/ RS232 (Option)
Operation temperature
-20C to 70C° C
Storage temperature
-30C to 80C° C
Humidity
5~95%RH
Good Display is a prefessional manufacturer of high quality and low cost LCD products in China. Our engineers have more than 10years of experience in designing and manufacturing standard and customized LCD displays. We have the state-of-the-art clean room facilities and production lines for LCD glass and modules with the most advanced techniques introduced from the United States and Japan. Our products include standard and customized LCD glasses and modules, including segment (alphanumeric) displays, DOT matrix (character) displays and graphic displays (monochrome and color). We provide a large range of LCD types, including TN, HTN, STN, FSTN, CSTN, TFT, etc., featuring various module mount methods such as SMT, COB, COG, TAB and more.

We have ISO9001 certification issued by DNV, and our products have been the first choice by manufacturers, engineers, developers, distributors and other business partners. The annual production capacity is 30, 000 square meters of LCD glass and 10 million pieces of LCD modules. From our main manufactory in China, our products have been supplied to over 20 countries in Europe, Asia, and North America.
