| Prod Model: |
POE52008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Output Type: |
DC |
| Connection: |
Plug In |
| Usage: |
Digital Camera |
Product Description

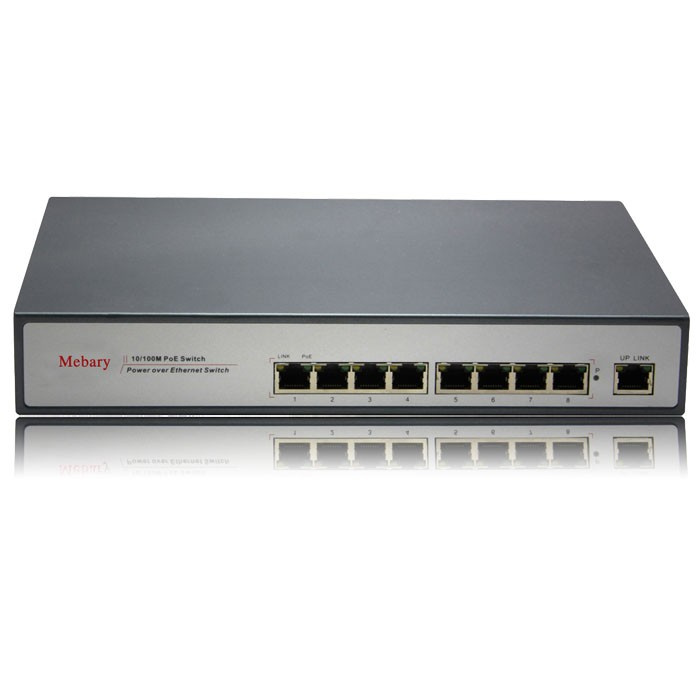

The PoE Switch POE52008-at provide power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The nine Fast Ethernet ports can be used for any 10/100 Mbps link and 1-8 port can supply industry-standard IEEE 802.3at power. Advanced auto-sensing algorithm gives power only to IEEE802.3at end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™ .
The affordably priced PoE Switch delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch is ideal for small business networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.
Product features
IEEE 802.3at power on up to 8 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
9 10/100 Mbps Ports with AutoUplink™
Supports PoE power up to 25.5W for each PoE port
Supports PoE power up to 220W for all PoE ports
Supports PoE IEEE 802.3at compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
Internal power adapter supply
