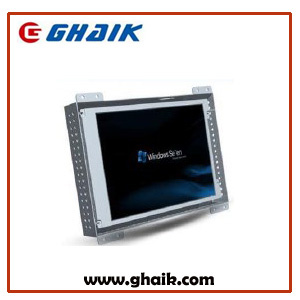

8.4 Inch Open Frame Touch Screen LCD Monitor
800X600 Resolution
220 / 450 CD/m2(Optional)
VGA Signal Input
12V 4A DC Input
Touch (Optional)
Meet FCC, CE, CCC, RoHS Certification
Operating Temp: -20~80
Product Specifications
LCD
Panel Type AUO LCD Panel (Optional)
Resolution 800*600
Display Area(mm) 170.4(H)*127.8(V)
Brightness 450nits
Contrast Ratio 600: 1
Colors 16.2M/262k colors
View Angle 80/80/80/60
Backlight Lifetime 50000
ODS Control Auto Menu Select(+, -)Exit On/Off
Touch Screen
Type No(Optional)
Resolution(pixel) No
Touch Transmittance No
Interface
Signal Input VGA+DVI(15 Pin D-SUB/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional)
Touch Connectors USB / RS232(Optional)
Power
Power Input DC12V/4A (50~61Hz)-DC Jack (2.0mm)
Power Consumption ≤ 36W
Mechanical
Material Steel chassis
Mounting Support VESA Wall Mount and Embedded Mount
Dimensions 254.0(H)*158.5(V)*34.5(D)
Environment
Operating Temp -20~80
Storage Temp -30~85
Relative Humidity 10~90% @40C° Non-condensing without touch screen
Vibration 1G peak, 5~500Hz(Random)
Shock 15G peak acceleration (11msec. Duration)
Rating Meet EMI/EMC CE FCC RoHS
Ordering Information
GHK-08OP-NB 8.4 Inch Open Frame LCD Monitor
GHK-08OP-TB 8.4 Inch Open Frame Touch Monitor
