| Prod Model: |
AT080TN52 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.0 Inches |
| Brand: |
Innolux |
| Resolution: |
800(RGB)X600 |
| Contrast Ratio: |
500 |
| Luminance: |
250CD/M2 |
| Pin Number: |
50 Pins |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Notebook LCM |
| Viewing Angle: |
TN＋FILM |
Product Description

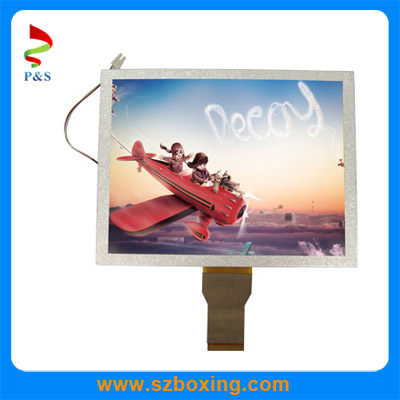

8.0 inch AT080TN52 Innolux TFT LCD Display
1. Machnical Specification
2. Company advantage
Small MOQ accepted
Competitive price and short lead-time.
ISO9001 and ROSH certificated factory supplied.
TFT LCD module, touch panel, PCB with SMT/COB solutions
3. Application
4.Quality Control
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
5.Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping : Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging : Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
|
Item |
System |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Voltage for LED Backlight |
VL |
9.3 |
9.9 |
10.5 |
V |
|
|
Current for LED Backlight |
IL |
162 |
180 |
198 |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Power voltage |
VDD |
-0.3 |
– |
5 |
V |
– |
|
Operating temperature |
TOPR |
-20 |
– |
70 |
degree |
– |
|
Storage temperature |
TSTG |
-30 |
– |
80 |
degree |
– |
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
60 |
70 |
– |
degree |
|
θR |
Φ=0° |
60 |
70 |
– |
|
θT |
Φ=90° |
40 |
50 |
– |
|
θB |
Φ=270° |
60 |
70 |
– |
|
Contrast ratio |
CR |
|
400 |
500 |
– |
– |
|
Color Chromaticity |
WX |
0.26 |
0.31 |
0.36 |
– |
|
WY |
0.28 |
0.33 |
0.38 |
– |
|
Luminance |
L |
200 |
250 |
– |
cd/m2 |
