Shenzhen Wivitouch Technology Limited >> 7inch Single Touch Surface Capacitive Touch Screen

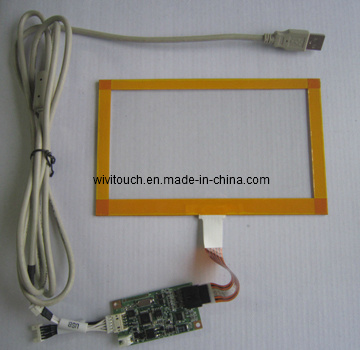

7inch Single Touch Surface Capacitive Touch Screen

7inch Single Touch Surface Capacitive Touch Screen
Price: US $ 59.9-70/Piece
Trade Terms: EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Specifications
Surface Capacitive Touch Screen
1. Availabte Size: 6.4"-22"
2. Life Time: More than 50 millions
3. Warranty: 3years
Surface Capacitive Touch Screen
1. Availabte Size: 6.4"-22" 2. Life Time: More than 50 millions 3. Warranty: 3years

Features
High quality materials from Japan.
Integrated production process and management
Scratch-proof, clear, Steady, larger size, durability and favorable life
IP65 waterproof
Available Size

6.4"-24"

Input Method

Finger and capacitive touch pen

Thickness

1.8mm~2.8mm (Custom thicknesses available)

Touch Activation Force

55-85 g

Surface Hardness

≥7 Mohs

Chattering Time

≤ 10 ms

Linearity

≤ 1.5%

Operational voltage

5V,12V DC

Communication

USB, Seria

Surface Finish

Anti-glare/Non-glare

Operating Temperature

-30°C to 80°Cfor the touch screen

Storage Temperature

-40°C to 90°C(up to 90%RH from 0°C to +35°C)

Supported Operating Systems

MS-DOS, Windows 95/98/2000, CE/ME/2000NT, OS/2,XP,Linux



Cleaning Water

isopropyl, alcohol, and non-abrasive cleaners
NEMA Rating NEMA 4,12,and IP65

Chemical Resistance

solvents, acids, and household chemicals in accordance with ASTM-D-1308-02el and ASTM-F-1598

Touch Life

250 million touches in a single location

Warranty

3years

Transmittance

90%±2%


Prod Model: WVT-SCT-7
Markets: North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe
Size: 7inch
Touch Points: 1 Touch Point
Available Sizes: 6.4inch - 22inch
Interfaces: USB / RS232
Respond Time: Less Than 10ms
Waterproof: IP65
Surface Hardness: Over 7 Mohs
Operation System: Windows, Mac, Linux
Certifications: CE, RoHS
Warranty: 3 Free Years
