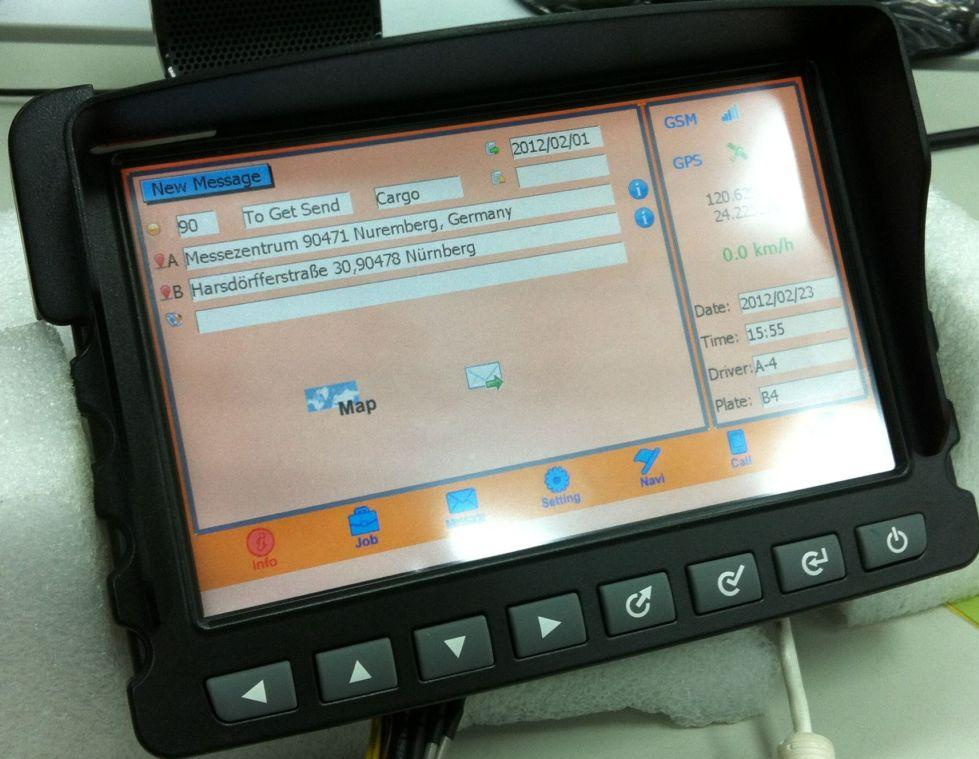

7" GPS/3G Mobile Data Terminal
1GHz Dual Core (ARM Cortex-A8) Window CE 6.0
IP54 Industrial Level
512MB SDRAM
8GB NAND Flash
(1)Features:
1 GHz 32-bit ARM Cortex-A8 Dual Core CPU
Notebook-like Performance at Low Power Consumption
IP54 Industrial Level
512MB LPDDR
8GB NAND Flash
WINCE 6.0 OS
Support SD / MMC Card
7" TFT LCD with 800 x 480 Resulution
4-wired Resistive Touch Panel
1 x RS232C
GPIO / USB 2.0 Device / USB 2.0 Host
On Board 3G / GPS Module
7 Interruptible Key Pad
DC 9V~30V Power Requirement
Built-in Battery Charger Circuit
With Car Mount
(2)Hardware Specifications
A)Processor:1GHz Dual Core (ARM Cortex-A8)
B)OS:Microsoft Windows Embedded CE6.0
C)System Memory:LPDDR-400 200MHz 512MB
D)Internal Storage:8GB NAND Flash
E)External Storage:Support SD / MMC / SDIO / SDHC Card Slot
Up to 32GB
F)Display:7" TFT LCD 800 x 480 WVGA LED Backlight Supported
4-wired Resistive Touch Panel
G)Telecom:Dual-Band UMTS (900 / 2100 MHz - Bands VIII, I)
HSPA: HSUPA 5.6 Mbps, HSDPA 7.2 Mbps Quad-band GSM (850 / 900 / 1800 / 1900 MHz) GPRS Class 12 EDGE MCS1-MCS9
H)GPS:50-channel Receiver Engine
I)USB:1 x USB 2.0 Host 1 x USB 2.0 Device
J)External I/O:Support ADC Support GPIO Support RS232C
K)Key Pads:7 x User Defined Programmable HotKey
L)Audio:Internal 1.5Watt Speaker (Mono) Internal MIC Connector External 3.5mm Mono Headset Jack (Mic/Earphone)
M)Power Supply:9~30Vdc Internal Li-Polymer Battery of 2500mAh
N)Operation Temperature:-20 ° C ~ +70 ° C
O)Chassis:Industrial grade
