| Prod Model: |
TFT055A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ODM: |
OEM Product Design/ Production |
| Certification: |
RoHS and ISO 9001:2008 Certification |
| Size: |
7" |
| Driver Element: |
a-Si TFT Active Matrix |
| Resolution: |
800 × 3(RGB) × 480 |
| Module Size: |
164.9(W) × 100(H) ×5.5(D) Mm |
| Screen Size: |
≤17" |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
Support TV Function |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
2ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
800*480 |
| Interface Type: |
RGB |

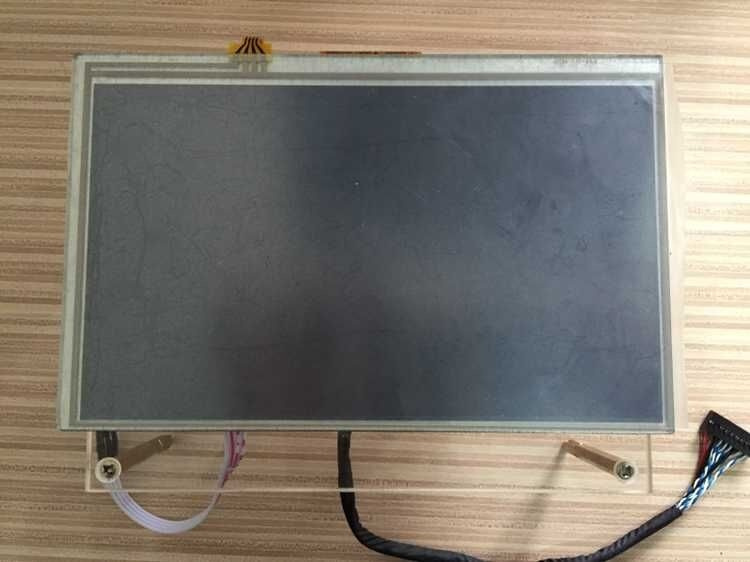

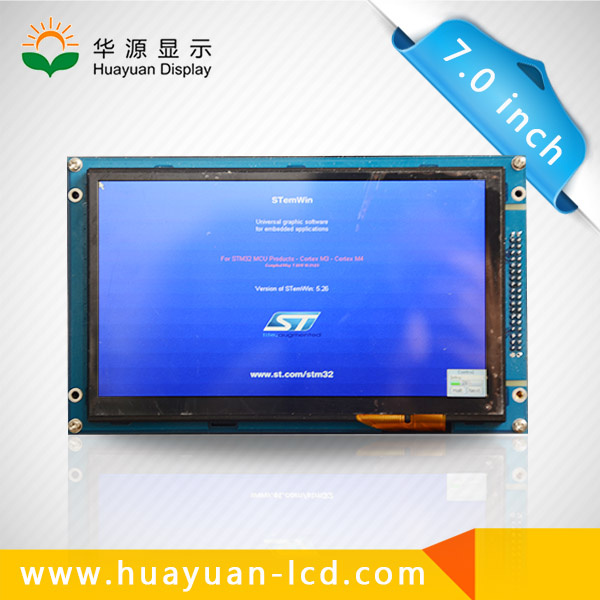

Product Description
LCD size 7.0 inch(Diagonal)
Driver element a-Si TFT active matrix
Resolution 800 × 3(RGB) × 480
Display mode Normally White, Transmissive
Dot pitch 0.1926(W) × 0.1790(H) mm
Active area 154.08(W) × 85.92(H) mm
Module size 164.9(W) × 100(H) × 5.5(D) mm
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Interface 24Bit RGB (TTL)
Backlight power consumption 1.512W
Optimum viewing direction 6 O'CLOCK
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
