65" Rugged TFT LCD Display for Military Displays
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Name65" Rugged TFT LCD Display for Military Displays Application Area
Naval ship and vehicle-borne of mobile command post field battle Product description The product is mainly used in field battle command system such as vehicular command post and mobile command post to display countless information including battlefield situations, electronic map, and target property, and to assist command personnel in analyzing and making quick decisions according to the Information provided. Product Advantanges
1. The Extra Large Size Rugged LCD with Extra High Resolution LCD is developed to meet
the demands for extra large size LCD With extra high resolution (3840×2160) by field
battle command system such as vehicular command post and mobile command post.
2. It can process and display signals such as VGA, PAL, S-VIDEO ,DVI,and DP1.2D.
3.I t can achieve extra high Bandwidth and extra high resolution display, four pictures
seamless Display as well as PIP ,PBY,POP and video switching functions.
4. Besides, it supports multi-point touch function.
5. It greatly enhances the Anti harsh environment capability and reliability indexes of extra
large size and Extra high resolution LCD panel in vehicular condition.
6.It further improves graphics video processing and video logic control technology.
Product Parameter
| Model No. | ZXD-650A0300-I1 |
| Resolution | 3840×2160 |
| Weight | < 100kg |
| Display area | 1428.48 (H) × 803.52(V) |
| Display colors | 16.7M |
| Backlight | LED |
| Brightness | > 300nits |
| Contrast ratio | > 300: 1 |
| Viewing angle | 160(H) 160(V) |
| Power supply | AC 220V DC 24V |
| Power consumption | <600W |
| Interface | VGA. DVI. LVDS. PAL |
| Working temperature | -15ºC to +60ºC |
| Storage temperature | -40ºC to +70ºC |
| Vibration | Meet GJB150.16-1986 requirements |
| Shock | Meet GJB150.18-1986 requirements |
| EMC | Meet GJB151A-1997 requirements |

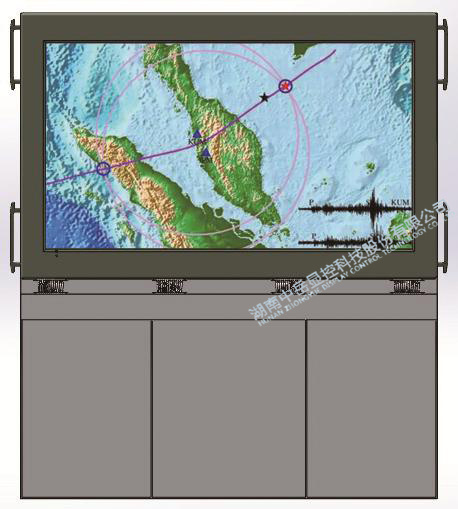

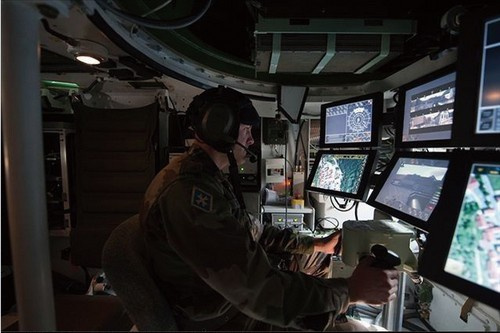

Application Picture
| Prod Model: |
ZXD-650A0300-I1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Vehicle-Borne and Mobile Command Post Field Battle |
| Aspect Ratio: |
16:9 |
| Feature: |
With Remote Control |
| Optimum Resolution: |
3840x2160 |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| 3D: |
Not 3D |
| Screen Size: |
65" |
| Interface Type: |
VGA or DVI or Lvds or PAL or Dp or HDMI |
Hunan Zhongyue Display Control Technology Co., Ltd is a high-tech joint-stock enterprises, specialized in research and development, production and technical service for military products. The company, founded in 2013, covers an area of 2000 square meters, having 20 million RMB registered capitals. At present, we have more than 40 employees and most of them have great experience in the field of military industry. We have a mature and solid team and have become an excellent military products supplier after many years of experience.
R&D capabilities and production capacity of our company at a leading position in the same industry, has assumed a large number of military and national defense scientific research mission. Our company has made a large number of high-level results in display technology, graphics display control card and military board field, with a number of patented technologies of independent knowledge ownership, such as: Low temperature transparent heating technology, highlighting dual LED backlight technology, optical bonding technology, multi-PIP technology, ultra-low power consumption dual-core three-display CPCI mainboard. Our company has sophisticated LCD screen secondary cutting technology platform, optical bonding technology platform, LED backlight technology platform, sophisticated image processing technology and high reliability military board technology that the monitor, graphics display control and all kinds of military boards can be customized according to customer requirements of different shapes, different sizes, different brightness and different resolution or other special requirements.
Currently, rugged LCD display module and graphic image display control card developed and produced by our company has been widely used in airborne, vehicle, ship and other military fields as well as airports, railway stations and outdoor display equipment and other civilian areas. The display size from 0.63 inch to 65 inch and resolution from 480X480 to 4096X2160 full-coverage. High product reliability, has been highly praised by customers and military. The display drive technology of our company lives in the national front. Among them, large-size high-resolution rugged display with resolution 4096X2160 becoming the earliest company successfully developed this resolution LCD drive technology by EPGA. 0.63-inch, 1-inch and 1.8-inch image display source are successfully used in airplane head-up system and helmet head system. In addition, the company has developed a variety of 3U, 6U series ARM, X86, POWERPC architecture low-power motherboard. All boardcards are embedded with complete BIT fault diagnosis. At the same time, we also produce display and control platform, all-in-one microcomputer, military notebook and other variety of electronic devices.
To allow users to enjoy a more simple, quick and more comprehensive services, through the integration of application of innovative hardware and software integration technology, our products and application solutions of the same strain, allowing users to system compatibility, stability, reliability and maintainability greatly enhanced.
In the future, we will grasp all opportunities to achieve company development sustainably and scientifically, making ourselves better contribute to national defense.
