| Prod Model: |
Sanway FP6400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Type: |
2 Channels |
| Dimension(Wxhxd): |
483X88X396mm |
| Function: |
Pre-amplifier |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Usage: |
Concert, Wedding, Church |
| Sound Channel: |
2.1 |
| Conductive Mode: |
Td Class |
Product Description

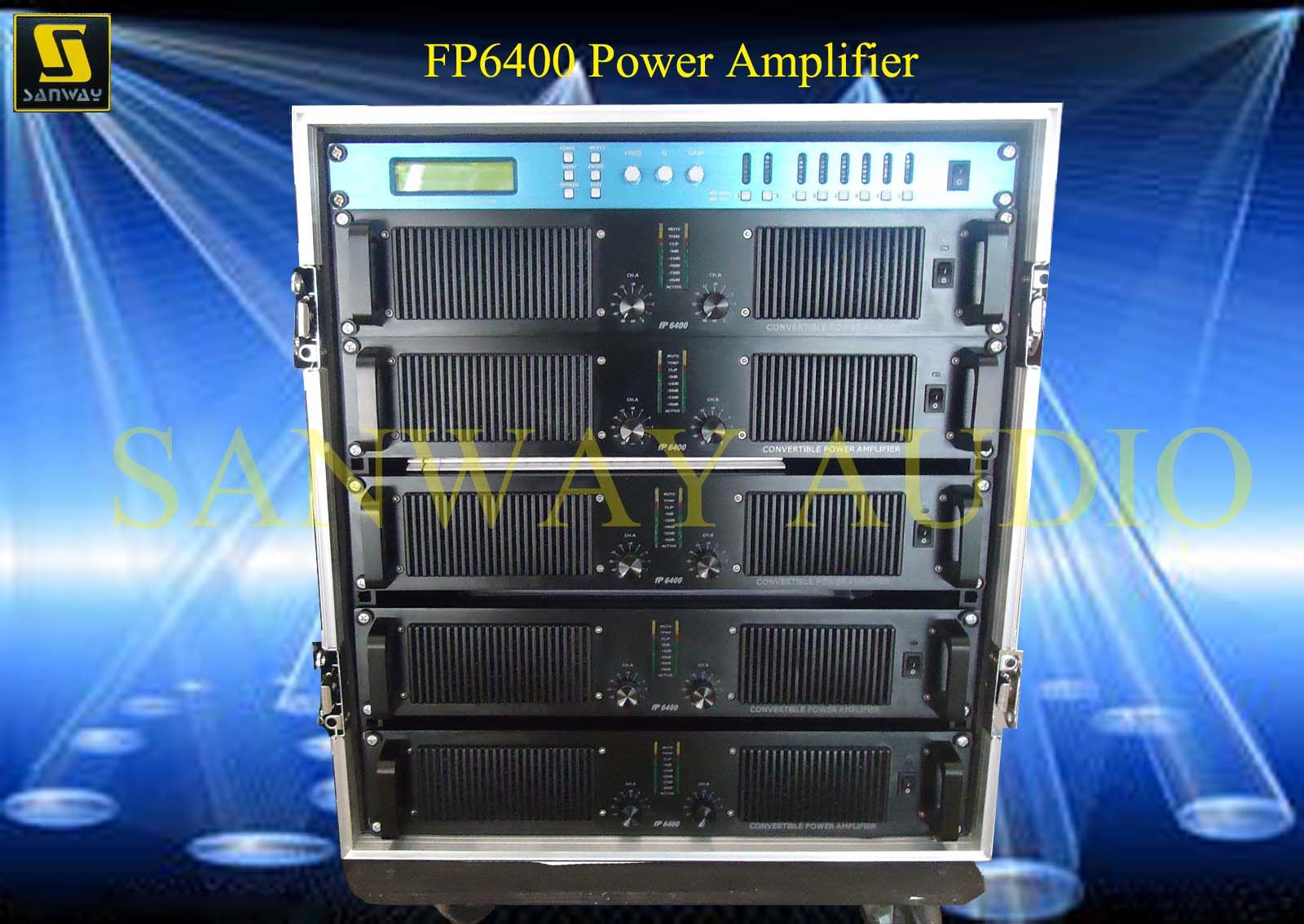

6400W Audio Power Amplifier (FP6400)
1.2x1300W@8 ohms Switching Power Amplifier
2. Fp6400 Switching Mode Amplifier
3.13kg Net Weight Switch Mode Amplifier
4. MLS switch: Lab. Gruppen's unique power matching for different loads
5. Bridged mono outputs in one speakon connector
Sanway Hotseller FP10000Q Power Amplifier Link: http://cnsanway.en.made-in-china.com/product/DqimbPglZeWC/China-10000W-Audio-Amplifier-PA-Power-AMP-Professional-Amplifiers-Fp10000q.html
LAB. GRUPPEN Sttle FP6400 6400 Watt Professional Power Amplifier: The Ultimate In Power Performance
This amp is extreme in every aspect - Loaded with Lab gruppen's leading technology, it offers a super-efficient switch mode power supply which reduces the weight without any effect on the audio signal, resulting in brilliant sound quality from the extreme lows to the very highs even under very difficult conditions.
Specifications:
|
Switching Power Amplifier fp6400 |
|
ITEM |
fp6400 |
|
Output Power |
20-20kHz, 1W with 1 khz |
|
8ΩStereo Power(RMS) |
1300W ×2 |
|
4ΩStereo Power(RMS) |
2300W ×2 |
|
2ΩStereo Power(RMS) |
2900W ×2 |
|
8ΩBridged Power(RMS) |
4600W |
|
4ΩBridged Power(RMS) |
5800W |
|
Frequency Response (+o/-0.3dB,1W/8Ω) |
20-20KHz±0.5dB |
|
THD+N:10KHZ<0.05% |
10KHZ<0.05% |
|
Signal-to-Noise |
<–110dB |
|
Slew Rate |
20V/us |
|
Input Connectors (per channel) |
Female XLR (pin 2+, configurable for pin 3+). TRS (tip+) |
|
Output Connectors (per channel) |
5-way binding posts or Speakon connectors (market dependent) |
|
Class |
TD |
|
TourClass Protection |
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
|
Voltage Gain(dB) |
20 23 26 29 32 35 38 41 seletable |
|
Cooling |
4pcs variable speed DC fans, better than conventional cooling |
|
Controls |
Front panel: 2 attenuators, power switch; Rear panel: signal ground lift & mode switches |
|
Dimensions (W×H×D) |
483×88×347mm |
|
Packing dimension |
580×180×560mm |
|
Net weight(kg) |
13 |
|
Gross weight(kg) |
17 |
