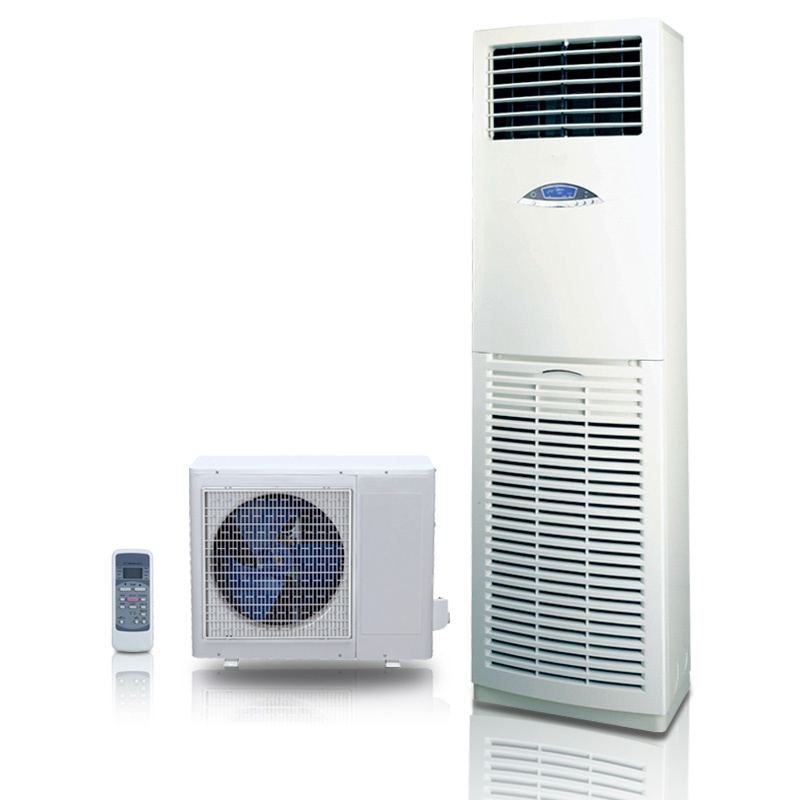

60Hz T3 Air Conditioner Floor Standing Air Conditioner
Feature
1. Used the known compressor with best quality
2. 60Hz T3 floor standing air conditioner
3. Automatic restart function
4. Self-diagnosis and auto-protection function
5. Intelligent control, easy operation
6. Independent de-humidifying
7. 5 years warranty for compressor and 2 years for complete unit
8. 1% free spare part of total amount
Specification
Power supply | Ph-V-Hz | 3Ph, 380-420V~, 60Hz |
| Cooling | Capacity | Btu/h | 48000 |
| Input | W | 5100 |
| Rated current | A | 9.0 |
| EER | W/W | 2.41 |
| Heating | Capacity | Btu/h | 48000+12000 |
| Input | W | 5400+3500 |
| Rated current | A | 9.4+5.8 |
| COP | W/W | 2.61 |
| Moisture Removal | L/h | 4.6 |
| Max. input consumption | W | 7600 |
| Max. current | A | 15.0 |
| Starting current | A | 58 |
| Compressor | Model |
| C-SB303H9A |
| Type |
| SCROLL |
| Brand |
| SANYO |
| Capacity | Btu/h | 48450 |
| Input | W | 4400 |
| Rated current(RLA) | A | 7.5 |
| Locked rotor Amp(LRA) | A | 58 |
| Thermal protector |
| ---- |
| Thermal protector position |
| INTERNAL |
| Capacitor | uF | ---- |
| Refrigerant oil/oil charge | ml | SAY56T /1700 |
| Refrigerant type | g | R22/4650g |
| Design pressure | MPa | 2.6/1.0 |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | φ12.7/φ19(1/2"/3/4") |
| Max. refrigerant pipe length | m | 30 |
| Max. difference in level | m | 10 |
| Connection wiring |
| NO |
| Plug type |
| NO |
| Thermostat type |
| Remote control |
| Operation temp | ºC | 17-30 |
| Ambient temp (cooling/heating) | ºC | 18-54/-7-24 |
| Application area | m2 | 61-102 |
| Qty'per 20' /40' /40'HQ |
| 21/44/51
|
