| Prod Model: |
PM550DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contrast Ratio: |
1400:1 |
| Viewing Angle: |
H:178 Degree V: 178 |
| Pixel Pitch: |
0.63(H) X 0.63(W) |
| Brightness: |
500CD/M2 |
| Activve Display Are: |
1264(H)X738.4(V) |
| Type: |
TFT |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:9 |
| Feature: |
3D Display |
| Optimum Resolution: |
1920x1080 |
| Interface Type: |
VGA |
| Response Time: |
5ms |
| 3D: |
3D |
| Screen Size: |
55 |
Product Description
Specifications
1. Size: 55''
2. Version: Standalone
3. Certification: CE, FCC, RoHS, CCC, ISO9001
4. High quality with reasonable price

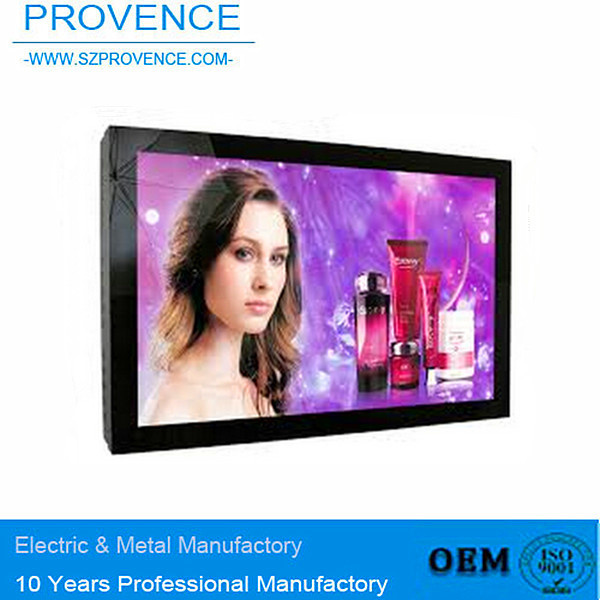

55" Inch Standalone LCD Digital Signage Display
[Function]
1. Support 1920 X1080 high-definition video decoding.
2. Built-in 4 GB of memory, can store thousands of sharp image.
3. Support SD card expansion, maximum 32 g.
4. Pictures and video in no black screen, truly seamless switching.
More than
5. Super session timer switch machine, can be set up according to the daily or weekly.
6. Built-in multiple transitions model images, images play transitions and interval time can be set freely by the software.
7. Can store up to 100 playlists, according to the preset time to play.
8. Die portrait as switching. Vertical screen mode through programming tools, video, images, rotate automatically, without the use of third-party tools for editing processing.
9. Support screen any split screen, can achieve 1 video + 4 pictures + 1 scrolling marquee date + 1 logo + 1 + 1 + 1 background.
10. U disk broadcast are available, and can also be show in the U dish into the built-in memory for playback.
11. Can set the encryption mode, through the programming tools and terminal setting, implementing encryption for the program, without the right key, will not be able to play.
12. And can be set to open mode, copy the media files directly to the U disk root directory, without having to edit, insert U disk directly.
13. Support the video formats: MPG, RMVB, AVI, MOV, MP4, RM, TS, etc.
14. And supported image formats: JPG, BMP, PNG, etc.
15. Support for scrolling marquee: Font color, font size, rolling speed by user-defined Settings.
16. Multilingual OSD menu, by default, English, Japanese, French.
17. Supports VGA output.
18. Obligate infrared human body induction interface, synchronization, GPRS module interface interface, RFID interface.
19. Support USB upgrade system and screen.
20. Support WiFi, 3G, LAN mode.
|
Product Description |
|
LCD panel |
|
|
Diagonal Size |
55" |
|
Aspect Ratio |
16:09 |
|
Pixel Pitch |
0.63(H) x 0.63(W) |
|
Response Time |
5ms |
|
Resolution |
1920X1080 |
|
Contrast Ratio |
1400:1 |
|
Brightness (cd/m2) |
500d/m2 |
|
Active display area |
1264(H)X738.4(V) |
|
Display Color (Max) |
1073.7M |
|
Viewing Angle(U/D,L/R) |
178° ( H ) / 178° ( V ) |
|
System software |
|
|
System software |
Android 4.2.2 |
|
Network mode |
|
|
Lan |
10M/100M |
|
WIFI |
802.11g/n |
|
3G |
Need 3G module |
|
Support format |
|
|
Video format |
MPEG1 \ MPEG2 \ MPEG4 \ H.264 \ WMV \ AVS, VC-1,RV, VP6/VP8, Sorenson Spark, MVC |
|
Audio format |
MP3 |
|
Image format |
JPG \ JPEG \ BMP \ PNG \ GIF |
|
Speaker |
|
|
Speaker |
2*5W |
|
Parameters |
|
|
CPU |
Dual Core ARM Cortex A9 1.5GHz |
|
GPU |
4*Core ARM Mali-400 MP |
|
Memory |
DDR3 1Gbyte |
|
SD card |
Max 32G |
|
USB interface |
USB2.0 * 1 |
|
Internal Storage |
FLASH 4G |
|
Audio output |
Stero CLASS-D, Support : 8Ω 2x10W |
|
3G module interface |
PCIE*1; USB*1 |
|
WIFI |
WIFI(150Mbps)*1 |
|
Lan |
10/100M |
|
Video output |
VGA×1 \ HDMI×1 |
|
Audio output |
3.5mm Phone Jack |
|
Extensible interface |
Serial port * 1; SPI *1;Camera * 1;USB(for touch) * 1 |
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
