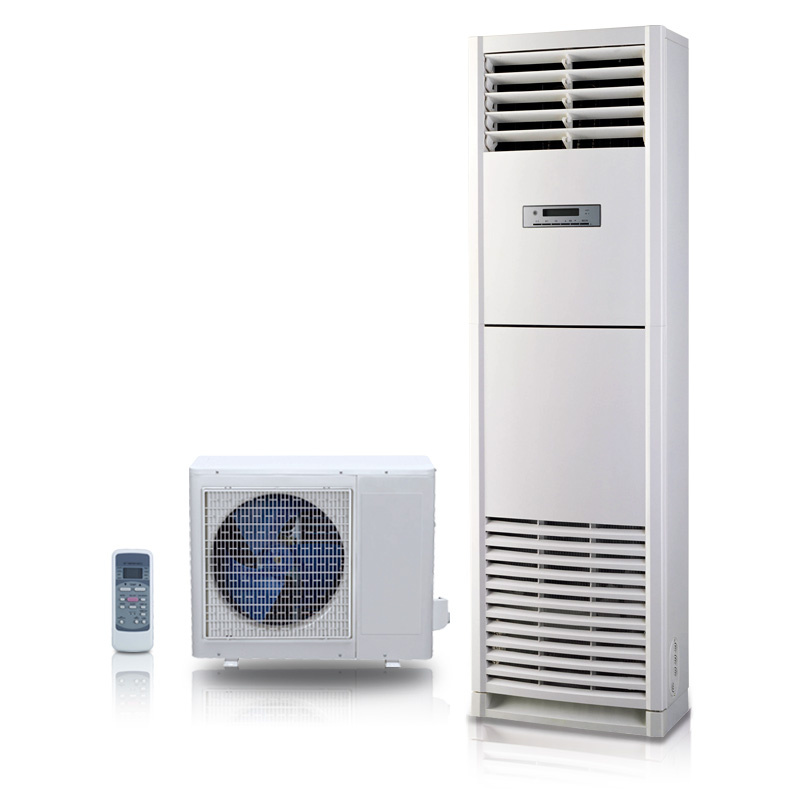

50Hz DC Inverter 48000 Btu Floor Standing Air Conditioner
Feature
Use the known brand rotary type compressor;
High Efficient Internal Thread Copper pipe;
LED digital display, Fault Self-Diagnose Code Showing;
Self-diagnose capability, error code showing;
Intelligent Defrost,Independent Dehumidification,Sleep Mode,Quiet Operation;
Low Voltage Startup,Auto-protection,Auto Restart;
Optional Refrigerant:R410A & R22 ;
Optional Voltage:220V/50Hz ,220V/60Hz,350V/50Hz,380V/60Hz;
Specification
Power supply | Ph-V-Hz | 380-415V~ 50Hz 3Ph |
| Cooling | Capacity | Btu/h | 48000 |
| Input | W | 4350 |
| Rated current | A | 7.5 |
| EER | W/W | 3.2 |
| Heating | Capacity | Btu/h | 52000+12000 |
| Input | W | 4200 |
| Rated current | A | 7.24 |
| COP | W/W | 3.6 |
| Moisture Removal | L/h | 5.3 |
| Max. input consumption | W | 5500 |
| Max. current | A | 15.0 |
| Starting current | A | ---- |
| Compressor | Model |
| TNB306FPNMC-L |
| Type |
| ROTARY |
| Brand |
| MITSUBISHI |
| Capacity | Btu/h | 33711 |
| Refrigerant type | g | R410A/4000g |
| Design pressure | MPa | 4.2/1.5 |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ9.52/Φ15.9(3/8"/5/8") |
| Max. refrigerant pipe length | m | 30 |
| Max. difference in level | m | 15 |
| Thermostat type |
| Remote Control |
| Operation temperature | Indoor(cooling/ heating) | ºC | ≥17/≤30 |
| Outdoor(cooling/heating) | ºC | -15~50/-15~24 |
| Application area | m2 | 70-117 |
| Qty'per 20' /40' /40'HQ |
| 17/34/39 |
