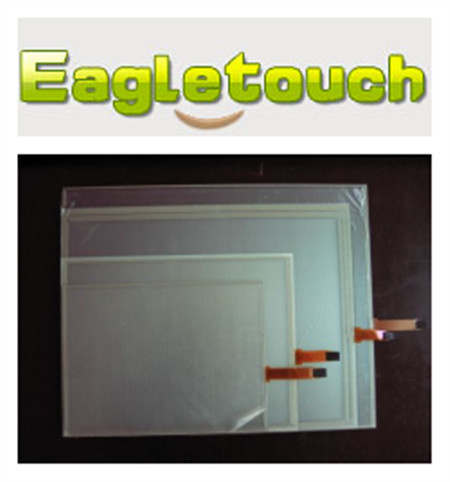

Eagle Touch Technology Co., Ltd. >> 5 Wire ATM Touch Screen
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: TFT
Application: Computer
Screen Size: ≤17"

Product Description

5-Wire resistive touch screen is the preferred solution for applications requiring durability and reliability over time. Similar to the 4-Wire technology, 5-Wire touch screen also consists of a conductive bottom layer (ITO Glass or ITO Film) and a conductive top layer (ITO Film). The fundamental structure difference between the two is: In the 5-wire technology, all the electrodes are placed on the bottom layer and the top layer acts only as a voltage measuring probe. Therefore, the touch screen works properly even with damages or scratches on the top layer.

Specification
Circuiting Rating: 5V DC, 35mA Surface Hardness: 3H
Light Transmission: Film+Film>77% Hitting Life Expectancy: Over 35million
Film+Glass>83% Scoring Life Expectancy: Over 5million
Contact Bounce: <10ms Operating Temperature: -10 oC ~+60 oC
Resolution: 4096x4096 Storage Temperature: -20 oC ~ +70 oC
Linearity: 1.5%(<1.0% By Request) Choices of Glass Thickness: 0.7mm, 1.1mm, 2.0mm, 3.0mm, 0.55mm
Operating Force: 10g~100g Choices of Glass: Normal Glass, Chemically strengthened glass

Features
Superior 5 Wire technology
Film on glass touch screen with superior image clarity, high resolution and good light transmission.
Durable - 35 million touches per point life.
High touchpoint density: Upto 4096 x 4096.
Accurate operation.
Antiglare glass option.
Finger, gloved hand and soft stylus activation.
Sizes - Flat 10.4", 12.1", 13.3", 14", 15", 15.8", 17", 19", 20.1" 22".
Controllers compatible with Windows family, Linux and DOS.
Eagle Touch Technology is a Hi-tech enterprise. Which devoted to the research and development of touch screen technologies and touch series products and also concentrate on the manufacturing and selling "eagle-touch" brand touch screens. Our products has been selling to all over the world such as west Europe, North America and Southeast countries and got good reputation from our clients.

"Eagle-touch" touch series products involves in many touch filed and has been widely used in industry, finance, medicine, POS, retail chain, services, tourism, transportation, office automation and other industries by years of product design and manufacturing. And we also provice OEM service!

Looking forward for the chance to working with you!
