| Prod Model: |
PS500-800480PRN-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5.0 Inches |
| Pin Number: |
30 Pins |
| Structural: |
Pet Lens+Glass Sensor |
Product Description

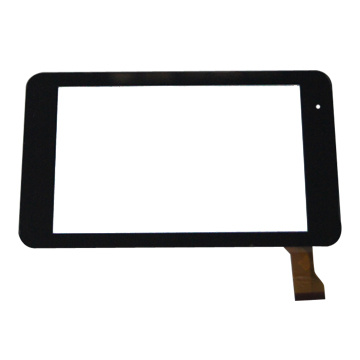

Capacitive Multi Touch Panel
Model: PS500-800480PRN-02
Capacitive touch screen is widely applicable for phones, PDAs, and other mobile devices.
1. Electrical characteristics
Item: Value
Dimensions: 5.0"
Structural: PET lens+Glass sensor
TP Outline: 119.80mm*74.9mm
TP A. A: 109.40mm*66.2mm
Thickness: 1.07mm
Operating Temperature & Humidity: -20° C - +70° C, < 90 %RH
Storage Temperature & Humidity: -30° C - +80° C, < 90 %RH
Surface hardness > 3H
Transparency > 85%
Supply voltage: 2.8V~5V
Interface: I2C, USB
Response time: 20ms
Drag, circle, slide, soft keys: OK
Multi-touch: YES
Gesture recognition: Enlarge, reduce, Rotate
Keys analyzed additionally: Sliders, wheels, fierce action, long press
2. Company Advantage
Small MOQ accepted
Competitive price and short lead-time.
ISO9001 and ROSH certificated factory supplied.
TFT LCD module, touch panel, PCB with SMT/COB solutions
3. Quality Control
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
|
Absolute Max.Rating |
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Supply voltage |
VDD |
2.8 |
– |
5.0 |
V |
– |
|
Operating temperature |
TOPR |
-10 |
– |
60 |
degree |
– |
|
Storage temperature |
TSTG |
-20 |
– |
70 |
degree |
– |
