| Prod Model: |

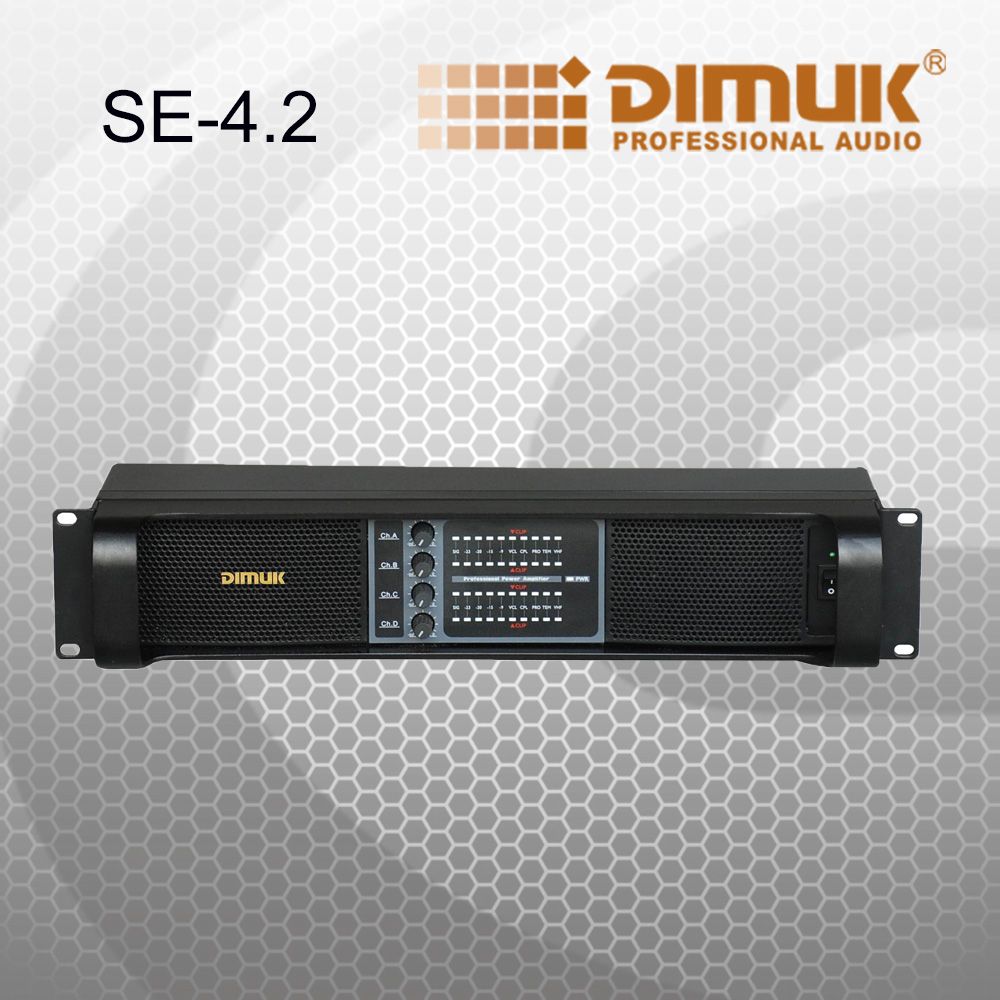

SE-4.2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
13kg |
| Color: |
Black |
| Customer Logo: |
Acceptable |
| Function: |
Post Amplifier |
| Tube Type: |
IC Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Conductive Mode: |
D |
| Voltage: |
AC90V to 250V |
| Element Number: |
Class D |
| Usage: |
Professional Performance |
| Sound Channel: |
Stereo |
Product Description
SE series amp are designed for touring enviroment. it have superior sound quality and can afford enduring severe stress .All the SE series amplifier have use switch-mode power supplies, and proprietary copper-finned Intercooler heat dissipation systems.
high output in a compact (2U), lightweight frame.
Proven durability in extreme touring conditions
A full suite of protection features for fail-safe operation
|
MODEL |
SE-2.8 |
SE-4.2 |
|
Output power |
|
|
|
8ΩStereo Power |
2x1800W |
4x1300W |
|
4ΩStereo Power |
2x3000W |
4x2200W |
|
2ΩStereo Power |
2x4800W |
4x2400W |
|
8ΩBridged Monon Power |
6000W |
2x4400W |
|
4ΩBridged Monon Power |
9600W |
2x4800W |
|
FREQUENTY RESPONSE |
20Hz-20kHz +-0.5dB |
|
THD+N(Rated power,4Ω/KHz)% |
0.10% |
|
Signal Noise Ration(dB) |
100dB |
|
Input connectors |
Combo XLR type,3pin |
|
Link Connectors |
XLR type,3pin male |
|
Input Impedance |
20kΩBalanced /10kΩUnbalanced |
|
Output Connectors |
Speakon Connectors (NEUTRIK) |
|
Indicators(per channel) |
Temperatuer,DC,sub/ultea-sonic,short Circuit,overload,IGM,output |
|
Power Requirement |
180-260V~50-60Hz |
|
Dimension |
483x430x88mm |
|
Weight |
13KG |
15KG |
GuangZhou Dimuk Audio Co Ltd is one of the best manufacturer of PRO audio equipment from China. Well trained workers. Up to date production equipment. Experienced engineer. Strict quality control one hour reach GuangZhou port have made us keep good quality and reliable cooperation for global valued customers.
Our products included professional PA loudspeakers Karaoke speakers and power amplifiers. No matter you need sound system for Theater. Concert Clubs & Disco or Sports Arena. Dimuk Audio will always be your right Choice.
