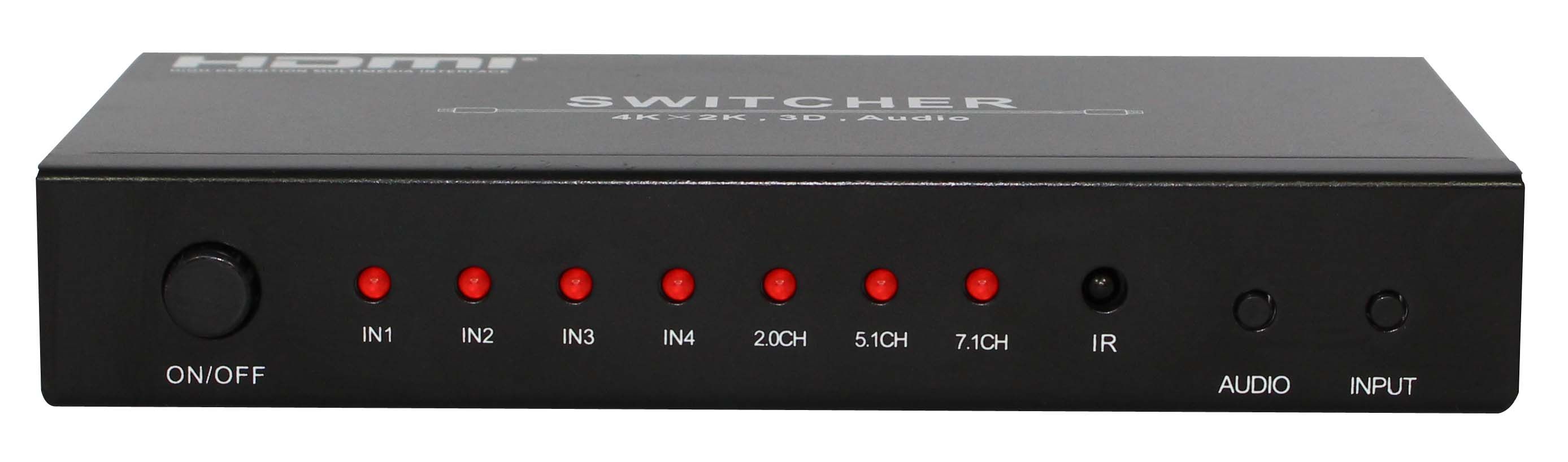

4X1 HDMI switcher 1.4v with Audio output
I. Introduction
This is a high performance 4x HDMI and 1x HDMI output switcher with digital/analog audio outputs. It supports HDCP repeater functions and fast switching between any of the four of HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives uses complete control over the selection of sources and makes the device incredibly user friendly.
II. Features
Support multiplexed HDMI 4-input.
Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0 & VESA DisplayPort 1.1a standards.
HDMI 1.4 support: 3D TV support, CEC1.4.
HDCP repeater support.
Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per color depth.
Audio support:
HDMI 1.4 compatible audio interface
Dedicated, flexible audio input/output port
Dolby TrueHD
DTS-HD Master Audio 7.1CH
Full audio input and output support
III. Package
HDMI 1.4 4by1 Switcher
5V DC Power Supply Adaptor
Remote control
Operation Manual
IV. Specifications
Frequency Bandwidth 2.97Gbps
Input Ports 4 x HDMI Female ports.
Output port 1 x HDMI Female port,1x Toslink,1x Earphone
HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 164(D) x85 (W) x 25(H)
Weight (g) 350
Power Consumption 3W
Operating Temperature 0C ~ 40C / 32F ~ 104F
Storage Temperature -20C ~ 60C / -4F ~ 140F
