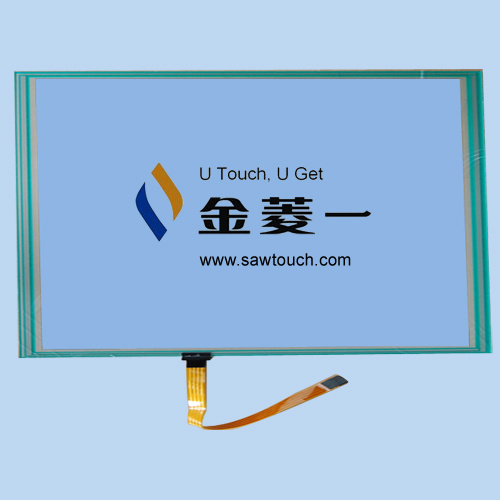

4wire/5 Wire Resistive Touch Screen
| Price: |
Negotiable/Piece |
| Min Order: |
1 /Piece |
| Prod Model: |
UTL-4W15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Port: |
USB/COM |
| OS: |
Windows/Linux |
| Type: |
LCD |
| Application: |
Advertising |
Product Description
Resistive touch panel is combined with 4 layers of visible complex film screen, the lowest layer is combined with glass or organic glass, the surface of top layer has past the induration process in order to make the plastic layer to be smooth and anti-scratch.
|
5-wire Technology |
|
Available Size |
5”-24” |
|
Constrcution |
Glass, uniform resistive coating, polyester coversheet, transparent insulating dots, conductive coating |
|
Deviation of Error |
≤1.5% |
|
Resolution |
4096 X 4096 |
|
Touchpoint Density |
100000 touchpoints/in2 |
|
Touch Activation Force |
20-120 g |
|
Response Time |
Less than 5 milliseconds |
|
Surface Hardness |
Moths 3 |
|
Life Time |
More than 35 million touches in one location without failure |
|
MTBF |
Over 50,000 hours |
|
Dust-Proof and Water-Proof |
Meet NEMA 4 and 12, and IP 65 standards |
|
Light Transmission |
≥87% |
|
Storage Temperature |
-40°Cto 80°C |
|
Operating Humidity |
less than 95% |
|
Storage Humidity |
less than 95% |
|
Storage Humidity |
10,000 feet above sea level |
|
Operating Altitude |
50,000 feet above sea level |
|
Chemical Resistance |
Acetone, Methylene chloride, Methyl ethyl ketone, Isopropyl alcohol, Hexane, Turpentine, Mineral spirits, Unleaded Gasoline, Diesel Fuel, Motor Oil, Transmission Fluid, Antifreeze |
|
Agency Approvals |
CE, FCC |
Since our foundation in 1999 and branded in "UTouch", Beijing IT01 Co., Ltd. Is a professional manufacturer focusing on researching and producing SAW (Surface acoustic wave) touch screen, touch monitor, touch kiosk and AD player (for building and car)with our own patent. We offer the largest selection of touch screen technologies, SAW touch screen, touch monitor and carefully design each product for the demanding requirements of diverse applications, such as industrial, medical, POS, kiosks, retail, hospitality, transportation, office automation, and gaming.
We are located in Beijing Zhongguancun High-tech Development zone, with such an advantageous technical and human resources, among the 20 R&D personnel, 95 percent have achieved a bachelor's degrees and even higher. Experienced electronic engineers and specialist technical personnel guarantee the technical services.
Up to now, we have expanded our product line with a series of new applications: Safe Touch, Dust proof, Kiosk Touch, Bevel Touch, and integrated touch monitors. We were granted ISO9001 and CE, FCC certifications. Our products had been sold to many countries all over the world such as Korea, Russia, Egypt, KSA, Ireland, Netherland.
Due to perfect cooperation with the customers from domestic and abroad, and hard working of all staffs, Beijing IT01 Co., Ltd has been growing by leaps and bounds. We would like to extend our warmest invitation to all overseas and mainland customers who want to pay a visit, provide suggestions or seek business co-operation.
