Product description

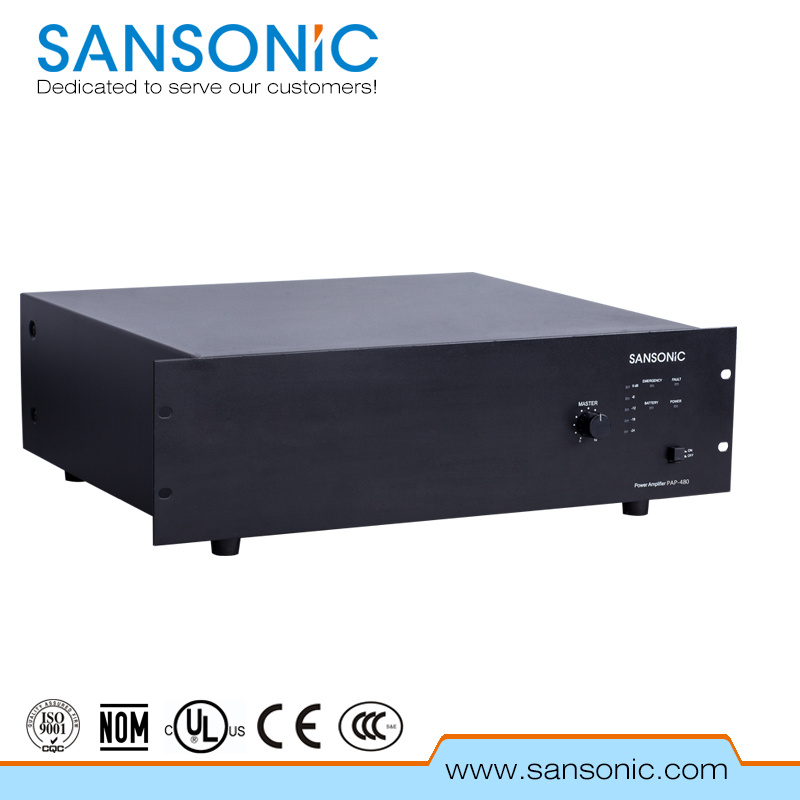

PAP480 is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 480W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 4~16Ω,16Ω/100V are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. standard mount design, humanistic design, exquisite technique, show the top grade quality
2. linear input, input sensibility: 316mV or 1V switching by on/off
3. SLAVE Input 100V;
4. 4~16,16Ω/100V output terminal multi-resistance output
5. Signal lamp, peak lamp display
6. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Physic and environment parameter
power supply
110~125V AC or 220~230V AC,50/60Hz
Rated power
480W
THD
Less than 1% at 1 kHz
Frequency Response
50~20,000Hz(±3dB)
Output
Line Out:
0dB 600ohms, unbalanced, RCA pin jack
Direct output:
High impedance (100V line/83ohms);
Low impedance (4 – 16ohms)
Input
Line In:
0dB*/–10dB*1(switchable), 10kohms, transformer balanced,
Slave input:
100V Input
Control Input(EMERGENCY):
No-voltage make contact input, open voltage: 24V DC,
Port allocation
1. line input, input sensibility: 316mV or 1V switching by on/off ;
2. slave input 100v;
3. 4~16ohms,16ohms/100V output terminal multi-impedance output
